All-Power APG3002 Owner's Manual

3500 watt generator with mobility kit
Hide thumbs

Advertisement

Table of Contents

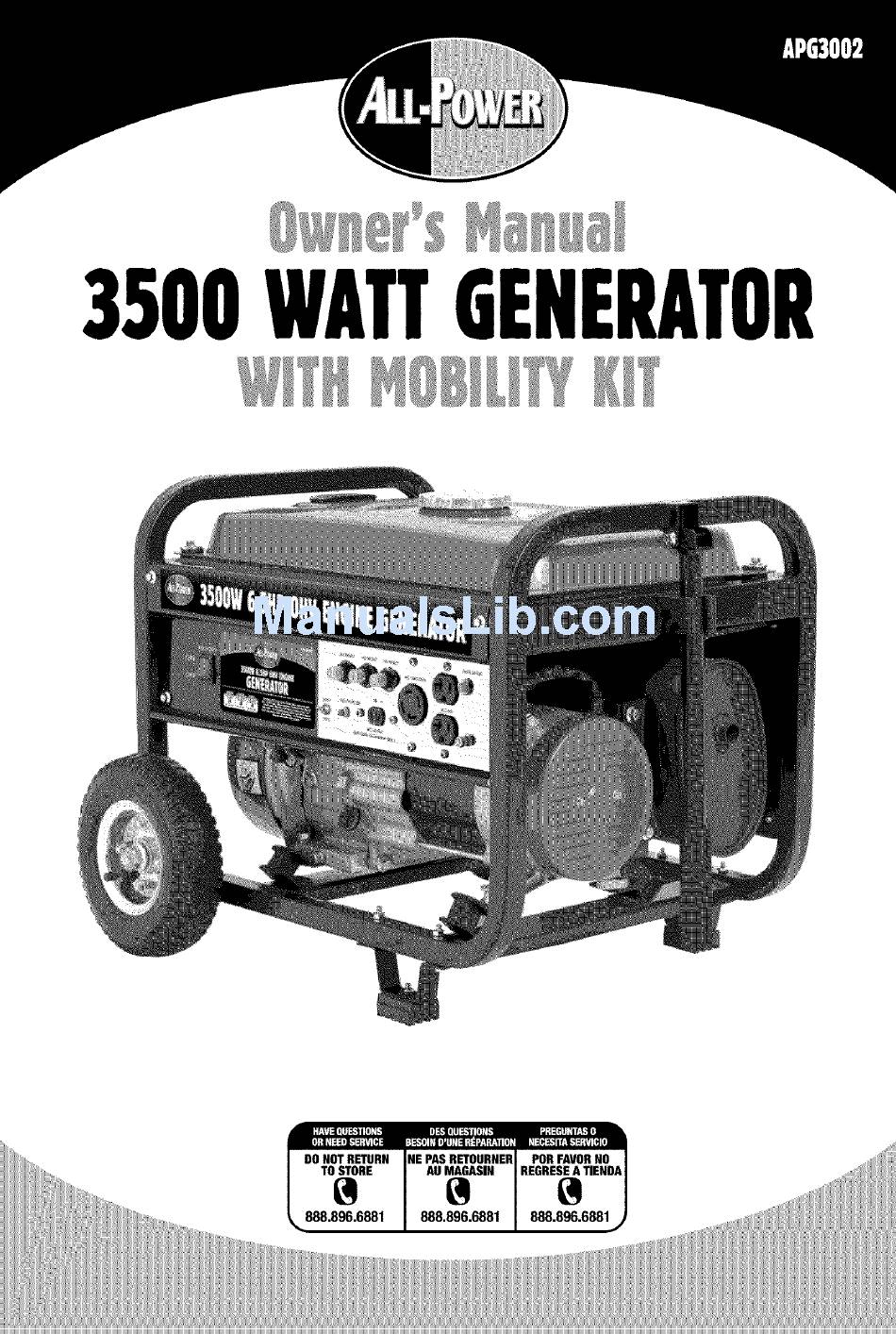

3500WATT G ENERATOR
NE PAS RETOURNER
AU MAGASIN
888.896.6881
888.896.6881
888.896.6881

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APG3002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for All-Power APG3002

Summary of Contents for All-Power APG3002

  • Page 1 3500WATT G ENERATO NE PAS RETOURNER AU MAGASIN 888.896.6881 888.896.6881 888.896.6881...

  • Page 2: Table Of Contents

    3.5KWGENERATOR Table of Contents Topic Page Safety Guidelines - Definitions General Precautions Assembly Specification s General Parts Listing Engine Parts Listing Installation Operation Inspection, Cleaning, and Maintenance Compliance Limited Warranty WARNING! READ AND UNDERSTAND ALL SAFETY PRECAUTIONS IN THIS MANUAL BEFORE OPERATING. FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL INJURY,...

  • Page 3: Safety Guidelines- Definitions

    Owner's Manual Safety Guidelines- Definitions This manual contains important information that you need to know and understand in order to protect YOUR SAFETY and to PREVENT EQUIPMENT PROBLEMS. The following symbols help you recognize this information. Please read the manual and pay attention to these sections. WARNING! WARNINGS INDICATEA CERTAINTY OR STRONG POSSIBILITYOFPERSONAL INJURYOR DEATHIF INSTRUCTIONS ARE NOT FOLLOWED.
  • Page 4 3.5KWGenerator CarbonMonoxide When this tool is running, ensure that the area is well ventilated. Never run the engine in an enclosed area. Run the engine in an open area or with an exhaust evacuation system in an enclosed area. WARNING! THEEXHAUSTCONTAINS POISONOUS CARBON MONOXIDE GASTHATCANCAUSELOSSOFCONSCIOUSNESS AND MAYLEAD TODEATH.
  • Page 5 Owner's Manual General Precautions(cont'd) Gasolineand Oil (cont'd) Excessive buildup of unburned fuel gases in the exhaust system can create a potentially explosive condition. This buildup can occur after repeated failed start attempts, valve testing, or hot engine shutdown. If this occurs, open exhaust system drain plugs, if equipped, and allow the gases to dissipate before attempting to restart the generator.
  • Page 6 3.5KWGenerator ElectricalSafety Grounded tools must be plugged into an outlet properly installed and grounded in accordance with all codes and ordinances. Never remove the grounding prong or modify the plug in any way. Do not use any adapter plugs. Grounding provides a low-resistance path to carry electricity away from the user inthe event of an electrical malfunction.
  • Page 7 Owner's Manual General Precautions(cont'd) ElectricalSafety(cont'd) Before servicing equipment powered by the generator, disconnect the equipment from its power input. Keep all electrical equipment clean and dry. Replace any wiring where the insulation is cracked, cut abraded or otherwise degraded. Replace terminals that are worn, discolored, or corroded.
  • Page 8 3.5KWGENERATOR General Precautions(cont'd) GeneratorUse andCare • Make sure the power switch is in its "OFF" position and disconnect the spark plug wire before making any adjustment, changing accessories, or Storing the generator. Such preventive safety measures reduce the risk of starting the generator accidentally. •...
  • Page 9 Owner's Manual General Precautions(cont'd) Installation Ensure installation meets all applicable safety, and local and national electrical codes. Have installation performed by a qualified, licensed electrician and building contractor. All electrical work, including the earth-ground connection, should be completed by a licensed electrician. Any separate fuel storage or generator supply facility must be built or installed in full compliance with all relevant local, state, and federal regulations.
  • Page 10 3.5KWGenerator General Precautions(cont'd) Mechanical Always make sure the power switch is in its "OFF" position. Disconnect the spark plug wire, and allow the engine to completely cool before carrying out maintenance. Check for damaged parts. Before using the generator, any part that appears damaged should be carefully checked to determine that it will operate properly and perform its intended function.

  • Page 11: Assembly

    Owner's Manual General Precautions (cont'd) Noise Prolonged exposure to noise levels above 85 dBA is hazardous to hearing. Always wear ANSI approved ear protection when operating or working around the Generator when it is running. Extension Cord If an extension cord (not included) is used, make sure to use only UL approved cords having the correct gauge and length according to the following table: NameplateAmps...
  • Page 12 3.5KW Generator Assembly (cont'd) Wheel Assembly Perform the following tasks to install the heavy duty wheels onto the generator assembly(see Fig.2 Fig.3): Insert axles through brackets located on frame at bottom of generator and twist the mounting nuts onto each end of axle. Insert wheels on the opposite end of the axles and twist the mounting nuts untile the nut is fully seated against wheel hub.
  • Page 13 Owner's Manual Fig1 sub-assembly components: • 1 Handle • 1Handle Mounting Bolt/Nut-M8 Fig2 sub-assembly components: • 2 Wheel Axles • 2 spring washer _])16 Fig3 sub-assembly components: • 2 Heavy Duty Wheels • 2 Wheel Axle Mounting Nuts-M16 Fig4 sub-assembly components: •...

  • Page 14: Specifications

    Owners Manual Specifications AC electrical Current output 120/240VAC @ 24/12A, 60Hz Continuous/rated wattage 2,800 Peak wattage 3,500 Outlets Two 120 VAC, 3- spring grounded One 120/240 VAC, twist and lock, 4- spring grounded DC electrical Current output 12VDC @8.3A Gasoline engine Horsepower 6.5 HP...

  • Page 15: General Parts Listing

    3.5KWGenerator General Parts Listing(Fig.A) This list is provided for reference purposes only. All repairs and part replacement should be performed by a qualified technician. Some parts may not be available as single replacements.
  • Page 16 Owner'sManual General Parts Listing(cont'd) Item Qty. Item Qty. Bolt w/Lock Bolt M4x16 Washer M6x12 Cable Sheath Engine Power Switch AC Protector Bolt M8x242 Bolt M6x172 Voltage-on button DC outlet Bolt M5x20 120/240V Outlet ConnectionBoard V-leg support Nut (M5) Stator V-leg cushion Wheel Axle Rotor Lockn ut...
  • Page 17 3.5KWGenerator General Parts Listing(cont'd) Item Qty. Item Qty. Spacer 120V outlet Rub Washer Indicator Bushing Grounding bolt Fuel Valve Wheel Frame Handle grip Contol board Rubber mount Engine Voltage-selector...

  • Page 18: Engine Parts Listing

    Owner's Manual Engine Parts Listing (Fig. B) This list is provided for reference purposes only. All repairs and part replacement should be performed by a qualified technician. Some parts may not be available as individual replacements.
  • Page 19 3.5KWGenerator EngineParts Listing(cont'd) Item Qty. Item Qty. Muffler Carburetor Assembly Cylinder Head Air Cleaner Case Bolt Cylinder Head Air Cleaner Seal Cover Bolt Cylinder Head Air Cleaner Cover Separator Lock Nut Air Cleaner Cover Adjusting Screw Air Cleaner Element Rocker Arm Bolt M6 Rocker Arm Bolt Choke Lever...
  • Page 20 Owner's Manual EngineParts Listing(cont'd) Item Qty. Item Qty. Exhaust Pipe Starting Case Stud Assy. Spark Plug Spiral Spring Valve Guide Starting Wheel Valve Spring Circlip Rocker Shaft Starting Ratchet Circlip Valve Stem Friction Plate Protector Screw Cylinder Head Cover Cover Packing Governor Spring Starter Pulley Bolt...
  • Page 21 3.5KWGenerator EngineParts Listing(cont'd) Item Qty. Item Qty. Plug M10x15 Camshaft Assy. Plug Washer Locating Pin Oil Alert Oil Seal Bolt (M6) Connecting Rod Bolt Crankshaft Connecting Rod Crankshaft Gear Connecting Rod Oil Dipstick Piston Oil Dipstick Seal Compression Ring Ring l Gear Casing Compression Ring II...

  • Page 22: Installation

    Owner's Manual Installation Note. Prior to powering tools and equipment, make sure the generator's rated voltage, wattage, and amperage capacity (two 120V-24AMPs outlets/one 240V-12AMPs outlet) is adequate to supply a// electrical loads that the unit willpower./fpower/ng exceeds the generator's capacity, it may be necessary to group one or more of the tools and/or equipment for connection to a separate generator.
  • Page 23 3.5KWGenerator Installation(cont'd) Supportand Mounting Mount the generator on a concrete slab capable of supporting the weight of the generator. The slab must extend on all sides beyond the flame by at least one foot. Contact a cement contractor for slab specifications if necessary.

  • Page 24: Operation

    Owner's Manual Operation Note. The pads//stings above are he/pfu/ for /ocating the contro/s mentioned be/ow. CAUTION. PR/OR TO FIRST US/NG THE GENERA TO/?, THE ENGINE MUST BE FILLED WiTH APPROX/MA TEL Y ¾ (0.63) QUART OFA HiGH QUALITY SAE 10W-30 GRADE ENGINE OiL.
  • Page 25 Owner's Manual Operation Operation Panel 1. Engine Switch To start engine turn switch to "ON" position; To stop engine turn switch to "OFF" position 2. Voltage Selector Switch Switch to your desired voltage 120V or 240V before you connect your equipment. There is no voltage output on the "OFF"...
  • Page 26 3.5KW Generator Operation (cont'd) Starting 1 Make sure the electrical powered tools/equipment that will be used are not plugged into the generator while the engine is started. 2 Open the fuel valve (40 Fig. A). 3 Close the choke lever (21 Fig. B) to about 1/8"...
  • Page 27 Owner's Manual Operation (cont'd) Powering 120/240Volt AC Tools And Equipment" 1 Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity (two 120V-24AMPs outlets/one 240V-12AMPs outlet) is adequate to supply all electrical loads that the unit will power. If powering exceeds the generator's capacity, it may be necessary to group one or more of the tools and/or equipment for connection to a separate generator.

  • Page 28: Inspection,Cleaning,And Maintenance

    Owner's Manual Inspection,Cleaning,and Maintenance WARNING! ALWAYS MAKE SURE THE ENGINE POWER SWITCH (2) IS IN ITS "OFF" POSITION. DISCONNECT THE SPARK PLUG WIRE FROM THE ENGINE. AND ALLOW SUFFICIENT TIME FOR THE ENGINE AND GENERA TOR TO COMPLETELY COOL BEFORE PERFORMING ANY INSPECTIONS, MAINTENANCE, OR CLEANING.

  • Page 29: Compliance

    3.5KW Generator Compliance UNITED STATES ENVIRONMENTAL PROTECTION AGENCY, WASHINGTON, DC 20460 2005 Model Year Certificate of Conformity Manufacturer: CHONGQING HUAWEILIANLONG TECHNICAL Co. Ltd. CHL-N RSI-05-02 Certificate Number: Effective Date: 08/2/2005 Date Issued: 08/2/2005 Merrylin Zaw-Mon, Director, Certification and Compliance Division, Office of Transportation and Air Quality.

  • Page 30: Limitedwarranty

    Owner'sManual LimitedWarranty ALL-POWER AMERICA warrantsto the originalpurchaser who usesthe productin a consumerapplication(personal,residential o r householdusage)that all productscoveredunderthis warrantyare free from defectsin materialand workmanship for one yearfrom the dateof purchase.All productscovered by this limitedwarrantywhich are usedin commercial a pplications(i.e. incomeproducing)are warrantedto be free of defectsin materialand workmanship for 90 daysfrom the dateof originalpurchase.Products coveredunderthiswarrantyincludeair compressors, a ir tools,service parts,pressurewashers,and generators.
  • Page 31 3.5 KW Generator LimitedWarranty(cont'd) THISWARRANTYDOESNOTCOVER: • Merchandise soldas reconditioned, u sedas rentalequipment,or flooror displaymodels. • Merchandise that has becomedamagedor inoperative becauseof ordinarywear, misuse,cold, heat,rain,excessivehumidity, f reeze damage,use of improperchemicals,negligence, a ccident,failureto operatethe productin accordance with the instructionsprovidedin the OwnersManual(s) suppliedwith the product,impropermaintenance, t he useof accessoriesor attachments not recommended byALL-POWER AMERICA, or unauthorized repairor alterations.
  • Page 32 Owners Manual Limited Warranty (cont'd) • ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECTS, FAILURE OR MALFUNCTION OF THE PRODUCT IS NOT COVERED BY THISWARRANTY. Some states do not allow the exclusion, so it maynot apply to you.
