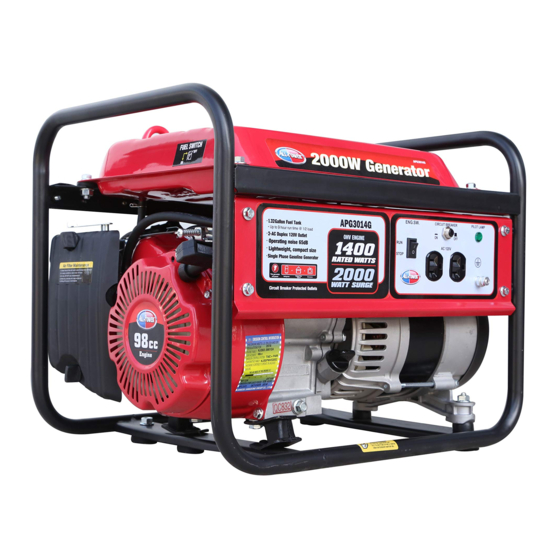

All-Power APG3014G Owner's Manual
  1. Manuals
  2. Brands
  3. All-Power Manuals
  4. Portable Generator
  5. APG3014G
  6. Owner's manual

All-Power APG3014G Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Warning To Reduce The Risk Of Injury, User Must
Read And Understand Instruction Manual.
www.jdna.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APG3014G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for All-Power APG3014G

Summary of Contents for All-Power APG3014G

  • Page 1 Warning To Reduce The Risk Of Injury, User Must Read And Understand Instruction Manual. www.jdna.com...
  • Page 2 DANGER Carbon Monoxide Using a generator indoors WILL KILL YOU IN MINUTES. Carbon Monoxide Generator exhaust contains high levels of carbon monoxide (CO), a poisonous gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO.

  • Page 3: Table Of Contents

    2000 WATT GENERATOR CONTENTS SAFETY PRECAUTIONS ...............2 CONTROL FUNCTION ...............3 PRE-OPERATION CHECKS ..............5 OPERATION ...................6 OIL SENSER ..................9 PERIODIC MAINTENANCE ..............10 TROUBLE SHOOTING ................12 STORAGE ....................14 COMPLIANCE ..................14 SPECIFICATIONS ..................15 SYMBO .....................16 WARRANTY ....................17 PARTS LISTING ..................19...

  • Page 4: Safety Precautions

    OWNER’S MANUAL WARING: PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING. 1. SAFETY PRECAUTIONS 1) EXHAUST FUMES ARE POISONOUS - Never operate the machine in a closed area or it may cause unconsciousness and death within a short time.Operate the engine in a well ventilated area.

  • Page 5: Control Function

    2000 WATT GENERATOR 4) ELECTRIC SHOCK PREVENTION - Never operate the engine in rain or snow. - Never touch the machine with wet hands or electrical shock will occur. - Be sure to ground (earth) the generator. NOTE: - Use ground (earth) lead of sufficient current capacity.
  • Page 6 OWNER’S MANUAL “ON” ( “ENGINE SWITCH” on “RUN” position) Ignition circuit is switched on. The engine can be started. “OFF”(”ENGINE SWITCH” on “STOP” position) Ignition circuit is switched off. The engine will not run. ENGINE SWITCH 2) AC PROTECTOR The AC breaker turns off automatically when the load exceeds the generator rated output.

  • Page 7: Pre-Operation Checks

    2000 WATT GENERATOR 3. PRE-OPERATION CHECKS NOTE: Pre-OPERATION checks should be made each time the generator is used. 1) CHECK ENGINE FUEL - Check fuel level with the tank cap removed. - If fuel level is low,refill with unleaded automotive gasoline. - Be sure to use the fuel filter on the fuel filter neck.

  • Page 8: Operation

    OWNER’S MANUAL - Recommended engine oil: SAE 30 10W-30 C SAE 10W B SAE #20 A SAE #30 or 10W-30 or 10W-30 or 10W-10 or 10W 40 or 10W-40 or 10W-40 3) GROUND ( Earth ) Makee sure to ground (earth) the generator. 4.
  • Page 9 2000 WATT GENERATOR 5. Warm up the engine. 6. Turn the choke level back to the operating position. 7. Warm up the engine without a load for a few minutes. 2) USING ELECTRIC POWER 1. AC PROTECTOR (a) Check the pilot lamp for proper voltage. (b) Turn off the switch of the electrical appliances before connecting to the generator.
  • Page 10 OWNER’S MANUAL 3）STOPPING THE ENGINE 1. Turn off the power switch of the electric apparatus or unplug the cord from receptacle of the generator. 2. Turn the engine switch to “STOP”. 3. Turn the fuel cock lever to “OFF”.

  • Page 11: Oil Senser

    2000 WATT GENERATOR 5. OIL SENSOR - The oil sensor detects the fall in oil in the crankcase and automatically stops the engine when the oil level falls down below the safety limit. - When the engine stops antomatically, check the oil level. - If the engine can not start by usual starting procedures, check the oil level.

  • Page 12: Periodic Maintenance

    2000 WATT GENERATOR 6. PERIODIC MAINTENANCE 1) MAINTENANCE CHART Regular maintenance is most important for the best performance and safe operation. REGULAR SERVICE First Every Every Every Every PERIOD 8 Hours 25 Hours 50 Hours Annually or Each use or Annually or Annually 100 Hours 5 Hours...
  • Page 13 OWNER’S MANUAL 2) ENGINE OIL REPLACEMENT 1. Place the machine on a level surface and warm up the engine for several minutes. Then stop the engine. 2. Remove the oil filler cap. 3. Place an oil pan under the engine. Remove the oil drain plug so that the oil can be completely drained.

  • Page 14: Trouble Shooting

    2000 WATT GENERATOR 2. After wetting the element by clean engine oil , squeeze it tight by hand. 3. Lastly , put the element in the case and install it securely. CAUTION: The engine should never run without the element; excessive piston and/or cylinder may wear.
  • Page 15 OWNER’S MANUAL 2. Engine oil system Insufficient - Oil level is low-Add engine oil. 3. Electrical system Poor spark - Spark plug dirty with carbon or wet- Remove carbon or wipe spark plug dry. - Faulty ignition system-Consult dealer. 4. Compression insufficient - Worn out piston and cylinder-Consult dealer.

  • Page 16: Storage

    2000 WATT GENERATOR 8. STORAGE 1. AC protector Check to make sure the AC protector is in the position. 2. Appliance Check whether the appliance has been connected to the generator when the engine is starting. Disconnect the appliance from receptacle. 3.

  • Page 17: Specifications

    OWNER’S MANUAL 10. SPECIFICATIOIN AC electrical Current Output 120V @ 11.6A 60Hz Continuous/rated Wattage 1400W Peak Wattage 2000W Outlet 2-120V receptacles Gasoline engine Type 4-cycle OHV air-cooled recoil start Displacement 98cc Oil Capacity 0.42 quart (0.4liter) EPA Approved Fuel Type Unleaded gasoline Capacity 1.32 gallons...

  • Page 18: Symbo

    2000 WATT GENERATOR 11. SYMBOL symbol Parts name symbol Parts name ENG. Engine Oil senser Spark plug Auxiliary winding Filed winding Voltmeter AC winding Capacitor AC BR. AC circult breaker ST.MC Stator winding rectifier T.C.I T.C.1 UNIT SYMBOL WIRE COLOUR SYMBOL WIRE COLOUR Yellow/green...

  • Page 19: Warranty

    OWNER’S MANUAL 12. Limited Warranty JD North America warrants to the original purchaser who uses the product in a consumer application (personal, residential or household usage) that all products covered under this warranty are free from defects in material and workmanship for 2 years or 300 hours whichever comes first (1-year parts and labor and following 1 year parts only) from the date of purchase.
  • Page 20 2000 WATT GENERATOR JD North America JD North America...

  • Page 21: Parts Listing

    Owner’s Manual General Parts Listing This list is provided for reference purposes only. All repairs and part replacement should be performed by a qualified technician. Some parts may not be available as single replacements. FIG A. CRANKCASE ASSY AP A P a r t N o. D e s c r i p t i o n Q t y .
  • Page 22 2000W Generato r General Parts Listing FIG B . CYLINDE R HEA D A P A P a r t N o. D e s c r i p t i o n Q t y . APG3014-B-01- JD Pipe APG3014-B-02- JD Wire board APG3014-B-03- JD...
  • Page 23 Owner’s Manual General Parts Listing FIG C. CRANKSHAFT PISTON APA Part No. Description Qty. APG3014-C-01-JD Connecting rod APG3014-C-02-JD Semicircle key APG3014-C-03-JD Crankshaft assy. APG3014-C-04-JD Connecting rod cover APG3014-C-05-JD Flange bolt APG3014-C-06-JD First piston ring APG3014-C-07-JD Second piston ring APG3014-C-08-JD Oil ring guide slot APG3014-C-09-JD Spring APG3014-C-10-JD...
  • Page 24 2000W Generato r General Parts Listing FIG D. CAMSHAF T APA Part No. Description Qty. APG3014-D-01- JD Pin A APG3014-D-02- JD S pring APG3014-D-03- JD Pin B APG3014-D-04- JD Slide block APG3014-D-05- JD Loc k ring APG3014-D-06- JD Valve lifter APG3014-D-07- JD Push rod APG3014-D-08- JD...
  • Page 25 Owner's Manual General Parts Listing FIG D. CAMSHAFT APA Part No. Qty. APG3014-D-13-JD Valve spring APG3014-D-14-JD S pring retainers APG3014-D-15-JD Plate, push rod guide APG3014-D-16-JD Bolt,pivot(8mm) APG3014-D-17-JD Arm, valve rocker APG3014-D-18-JD Pivot, rocker arm APG3014-D-19-JD Nut, pivot adjusting...
  • Page 26 2000W Genera tor General Parts Listing FIG E. AIR CLEANER APA Part No. Description Qty. APG3014-E -01-JD B olt APG3014-E -02-JD Filter cover APG3014-E -03-JD Air cleaner element APG3014-E -04-JD Hold rack APG3014-E -05-JD Net M6 APG3014-E -06-JD Filter seat APG3014-E -07-JD Gasket APG3014-E -08-JD...
  • Page 27 2000W Genera tor MUFFLER ASSEMBLY APA Part No. Part No. Description Qty. APG3014-F-01-JD G3.0-M-01N-JD MUFFLER (W/EXHAUST MANIFOLD) APG3014-F-02-JD G3.0-M-04N-JD MUFFLER BRACKET APG3014-F-03-JD G9.0-M-05-JD EXHAUST CHECK VALVE APG3014-F-04-JD G3.0-M-06-JD EXHAUST MANIFOLD GASKET APG3014-F-05-JD G9.0-M-09-JD CHECK VALVE GASKET APG3014-F-06-JD APG3001C-M-11-JD CHECK VALVE PIPE APG3014-F-07-JD HDW-ZZ-01 AIR HOSE (O/O)
  • Page 28 Owner ‘s Manual General Parts Listing FIG G. CARBURETOR APA Part No. Description Qty. APG 3014-G- 01-JD C arburetor ass y. APG 3014-G- 02-JD Float APG 3014-G- 03-JD Float pin APG 3014-G- 04-JD Main nozzle APG 3014-G- 05-JD Ga sket APG 3014-G- 06-JD Float chamber body APG 3014-G- 07-JD...
  • Page 29 2000W Generator General Parts Listing FIG G. CARBURETOR APA Part No. Description Qty. APG3014-G-13-JD APG3014-G-14-JD APG3014-G-15-JD APG3014-G-16-JD...
  • Page 30 Owner’s Manual General Parts Listing FIG H. GOVERNOR APA Part No. Description Qty. APG3014-H-01-JD Bolt APG3014-H-02-JD Nut M6 APG3014-H-03-JD Platen APG3014-H-04-JD Spring washer APG3014-H-05-JD Handle APG3014-H-06-JD Washer APG3014-H-07-JD Shaft APG3014-H-08-JD Insulationframe APG3014-H-09-JD Bolt APG3014-H-10-JD Spring APG3014-H-11-JD Socket...
  • Page 31 2000W Generator General Parts Listing FIG H. GOVERNOR APA Part No. Description Qty. APG3014-H-12-JD Spring APG3014-H-13-JD Spring APG3014-H-14-JD Link rod APG3014-H-15-JD Nut M 6 APG3014-H-16-JD Governor arm APG3014-H-17-JD Lockring APG3014-H-18-JD Washer APG3014-H-19-JD Governor shaft APG3014-H-20-JD Lock ring APG3014-H-21-JD Gear APG3014-H-22-JD Governor slider APG3014-H-23-JD Flyweight...
  • Page 32 Owner’s Manual General Parts Listing FIG I. IGNITION FLYWHEEL APA Part No. Description Qty. APG3014-I-01-JD String frame APG3014-I-02-JD Stopping protective wires APG3014-I-03-JD Ignition coil assy. APG3014-I-04-JD Flange bolt APG3014-I-05-JD Spark plug APG3014-I-06-JD APG3014-I-07-JD Flywheel...
  • Page 33 2000W Genera tor General Parts Listing FIG J. RECOIL STARTER APA Part No. Qty. APG3014- J -01-JD Handle APG3014- J -02-JD Bolt APG3014- J -03-JD R ecoil starter case APG3014- J -04-JD Starter spring APG3014- J -05-JD R ecoil starter rope APG3014- J -06-JD Drum sheave APG3014- J -07-JD...
  • Page 34 Owner's Manual General Parts Listing FIG J. RE COI L S TAR TE R APA Part No. Description Qty. APG 3014- J -15-J D B ehind cover APG 3014- J -16-J D B olt APG 3014- J -17-J D Front cover APG 3014- J -18-J D Air shroud APG 3014- J -19-J D...
  • Page 35 2000W Generator General Parts Listing 9 10 11 FIG K. magneto APA Part No. Description Qty. APG3014- K-01-JD Front cover APG3014- K-02-JD Rotor APG3014- K-03-JD Bolt M8X185 APG3014- K-04-JD Stator APG3014- K-05-JD Stator APG3014- K-06-JD Bolt M6X105 APG3014- K-07-JD Rear cover APG3014- K-08-JD Bush Assy.
  • Page 36 Owner’s Manual General Parts Listing FIG L. FRAME APA Part No. Description Qty. APG3014- L-1-JD Frame comp. APG3014- L-2-JD Bottom rubber A APG3014- L-3-JD Flange nut M8 APG3014- L -4-JD Bottom rubber B APG3014- L-5-JD Bolt M8X16 APG3014- L-6-JD Bolt M8X55 APG3014- L-7-JD Bottom rubber C...
  • Page 37 2000W Generat or General Parts Listing FIG M. TANK APA Part No. Description Qty. APG3014-M -01-JD Fuel tank comp. APG3014-M -02-JD Fuel filter cap comp APG3014-M -03-JD Fuel filter APG3014-M -04-JD Fuel valve APG3014-M -05-JD Fuel tube APG3014-M-06-JD Tank cushion rubber APG3014-M -07-JD Flange bolt M6X16...
  • Page 38 Owner’s Manual General Parts Listing FIG N. CONTROL PANEL APA Part No. Description Qty. APG 3014- N - 01-J D ENGI NE SWITCH AS SY APG3 014- N -02-JD PILOT LAMP CONTRO L PA NE L C O MP. APG 3014- N -0 3-JD APG3 014- N -04-JD 120V RECE PTACLE APG3 014- N -05-JD...
