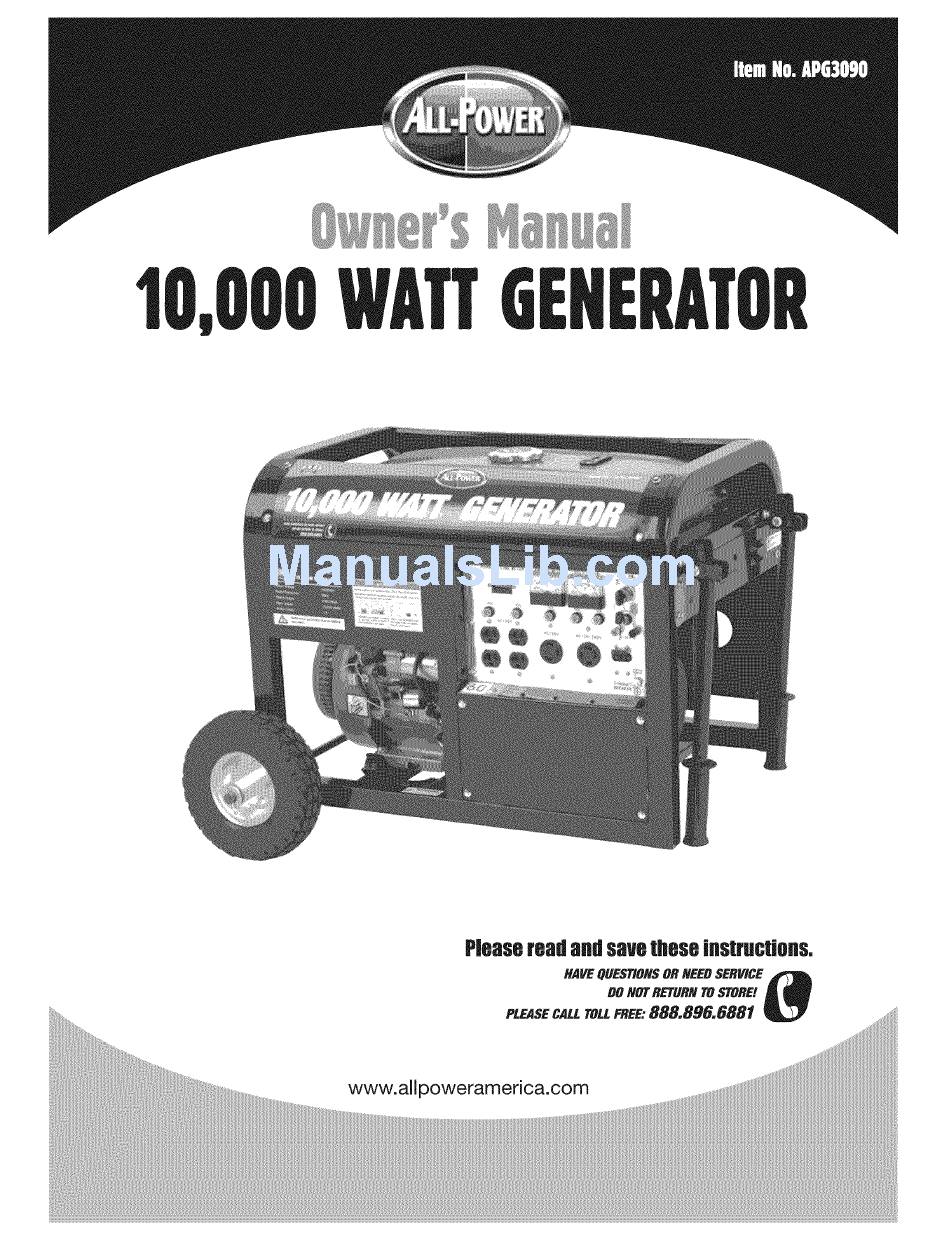

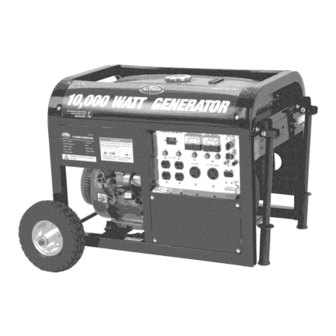

- Page 2 10 000W Generator Table of Contents Topic Page Limited Warrant Safety Guidelines General Precautions Controls Pre-Operation Check Operation Servicing Maintenance Transporting/Storage Assembly Compliance Specifications Parts Listing WARNING! READ AND UNDERSTAND ALL SAFETY PRECAUTIONS IN THIS MANUAL BEFORE OPERATING. FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL INJURY, PROPERTY...
-
Page 3: Limited Warranty
Owner's anual Limited Warranty All-Power warrants to the original purchaser who uses the product in a consumer application (personal, residential or household usage) that all products covered under this warranty are free from defects in material and workmanship for one year from the date of purchase. -
Page 4: Does Not Cover
10,O00W Generator Limited Warranty (cont'd} THIS WARRANTY DOES NOT COVER: Merchandise sold as reconditioned, used as rental equipment or floor display models. Expendable parts or accessories supplied with the product which are expected to become inoperative or unusable after a reasonable period of use. -
Page 5: Safety Guidelines
Owner's anual Safety Guidelines - Definitions This manual contains important information that you need to know and understand in order to protect YOUR SAFETY and to PREVENT EQUIPMENT PROBLEMS. The following symbols help you recognize this information. Please read the manual and pay attention to these sections. -
Page 6: Carbon Monoxide
10,000W Generator General Precautions ARNING! FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN SEVERE INJURY OR DEATH. RESULT IN DAMAGE TO THE TOOL AND/OR AUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS THE ITEM YOU ARE WORKING CAN ALSO Carbon Monoxide WARNING! THE EXHAUST CONTAINS POISONOUS... -
Page 7: General Precautions
TO POWER SENSITIVE ELECTRONIC EQUIPMENT WITHOUT THE USE OF AN APPROVED LiNE CONDITIONER MAY CAUSE DAMAGE TO THE EQUIPMENT. ALL POWER AMERICA IS NOT RESPONSIBLE FOR ANY DIRECT OR iNDIRECT DAMAGE CAUSED BY FAILURE TO USE AN APPROVED LINE CONDITIONER. -
Page 8: Work Area
10,O00W Generator General Precautions (cont'd) Work Area Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Generators create sparks which may ignite the dust or fumes. - Page 9 Owner's anual General Precautions (cont'd) Electrical Safety (cont'd) All connections and conduits from the generator to the load must only be installed by trained and licensed electricians, and in compliance with all relevant local, state, and federal electrical codes and standards, and other regulations where applicable.
- Page 10 0 O00W Generator General Precautions (cont'd) Personal Safety (cont'd) Avoid accidental starting. Make sure the power switch is in its "OFF" position, and disconnect the spark plug wire when not in use. Remove adjusting keys or wrenches before turning the generator on.
- Page 11 Owner's anual General Precautions (cont'd) Servicing Maintain labels and name plates on the generator and engine. These carry important information. If unreadable or missing, contact All-Power immediately for a replacement. Generator service must be performed only qualified repair personnel. Service or maintenance performed by unqualified personnel...
- Page 12 10,O00W Generator General Precautions (cont'd) Installation (cont'd) Carbon Monoxide GAS THAT CAN CAUSE LOSS OF CONSCIOUSNESS ARNING! THE EXHAUST CONTAINS POISONOUS CARBON AND MAY LEAD TO MONOXIDE DEATH. Using a generator indoors WILL KILL YOU IN MINUTES. Generator exhaust contains high levels of carbon monoxide (CO), a poisonous...
- Page 13 Owner's anual General Precautions (cont'd) Mechanical = Always make sure the power switch is in its "OFF" position. Disconnect the spark plug wire, and allow the engine to completely cool before carrying out maintenance. Check for damaged parts. Before using the generator, any part that appears damaged should...
- Page 14 General Precautions (cont'd) Extension Cord If an extension cord (not incUuded) is used, make sure to use onUy UL approved cords having the correct gauge and Uength according to the foUUowing tame: Nameplate Amps (@ Cord Lengths full load) 0 ft.- 50 ft. 50 ft°-100 ft°...
-
Page 15: Controls
Owner's anual Controls Engine Switch To start and stop the engine Switch position: OFF" To stop the engine. ON: To run the engine. START: To start the engine (only for electric start) make sure the engine switch is in the "ON"... -
Page 16: Circuit Breaker
10,O00W Generator Controls (cont) Choke The choke is used to provide an enriched fuel mixture when starting cold engine. It can be opened and closed by operating the choke lever manually. Pull the rod out toward CLOSED to enrich the mixture cold starting. - Page 17 Owner's anual Controls (cont) Switch Position The voltage selector switches the main power carrying windings of the generator to produce 120V ONLY or 120/240V. 120V ONLY: ONLY the 120V receptacles can be used. Do not use the 120/240V receptacle this position. The most power will be available at the 30A 120V locking plug receptacle.
-
Page 18: Pre-Operation Check
10,O00W Generator Controls (cont) AC Operation 1. Start the engine (see page 16). 2. Switch ON the AC circuit breaker. 3. Plug in the appliance. _NOTE Be sure that all appliances are in good working order before connecting them to the generator. If an appliance begins to operate abnormally,... -
Page 19: Operation
Owner's anual Operation F,LLERHOLE O,LF, ERCAP Pre=Operation Check 1. Remove the oil filler cap and wipe the dipstick clean. 2. Check the oil level by inserting the dipstick into the filler neck without screwing it in. 4. If the level is low, fill to the top of the oil filler neck with the recommended oil. - Page 20 10,O00W Generator Operation Pre-Operation Check _NOTE Fuel can damage paint and plastic. Be careful not to spill fuel when filing your fuel tank. Damage caused by spilling fuel is not covered under warranty. Use unleaded gasoline with a pump octane of 86 or higher. This engine is certified to operate on unleaded gasoline.
-
Page 21: Servicing
Owner's anual Servicing Always do the following to keep the generator in good condition. AWARNING 1. Always ground your generator 2. The following table gives reference information for connecting the electric appliances the generator. E |e_tgi¢ dev_ee Rating i OOW 80V A (w } 150W... -
Page 22: Safety Precautions
10,O00W Generator Maintenance Good maintenance is essential for safe, economical, and trouble-tree operation. It will also help reduce air pollution. , WARNING Improper maintenance, or failure to correct a problem before operation, can cause malfunction with you can be seriously hurt or killed. - Page 23 Owner's anual Maintenance Injury From Moving Parts. Do not run the engine unless instructed to do so. Read the instructions before you begin, and make sure you have the tools and skills required. To reduce the possibility of fire or explosion. Use extreme caution when working...
- Page 24 10,O00W Generator Maintenance Replacement Parts The emission control systems on your generators were designed, built, and certified to conform with EPA and California emission regulations. We recommend the use of generators parts whenever you have maintenance done. These original-design replacement parts are manufactured to the same standards as the original...
-
Page 25: Engine Oil Change
Owner's anual Maintenance RepJacement Parts Emission related items. (1) Service more frequently when used in dusty areas. (2) These items should be serviced by an authorized service center, unless the owner has the proper tools and is mechanically proficient. (3) For commercial use, long hours of operation to determine proper maintenance... - Page 26 10,O00W Generator Maintenance Air Cleaner Service A dirty air cleaner will restrict air flow to the carburetor. To prevent carburetor malfunction, service the air cleaner regularly. Service more frequently when operation the generator in extremely dusty areas. NOTE Never run the generator without the air filter.
- Page 27 Owner's anual Maintenance Spark Plug Service In order to service the spark plug, you will need a spark plug wrench (commercially available). Recommended spark plugs: NHSP LD F7TC or Champion N9YC To ensure proper engine operation, the spark plug must be properly gapped and free of debri deposits.
-
Page 28: Spark Arrester
10,O00W Generator Maintenance Spark Attester Maintenance If the generator has been running, the muffler will be very hot. Allow it to cool before proceeding. _NOTE The spark arrester must be serviced every 100 hours to maintain its efficiency. Clean the spark arrester as follows: 1. -
Page 29: Transporting/Storage
Owner's anual Transporting/Storage When transporting the generator, turn the engine switch and the fuel valve OFF. Keep the generator level to prevent fuel spillage. Fuel vapor or spilled fuel may ignite. _WARNING Contact with a hot engine or exhaust system can cause serious burns or fires. -
Page 30: Installation
10,O00W Generator Assembly Battery Installation 1. Remove the cover under the panel as shown. Cover Connect battery and put in the cabin 2. Screw on one bolt to rivet the battery and screw the bolts to close up the plate as shown below. Rivet battery Close up the plate... - Page 31 Owner's anual Assembly Generator Assembly Start by installing the handle on the frame with two bolts supplied. Place a block of wood under the generator so that you don't have to hold it up while trying to install the leg. Place the support leg under the frame.
-
Page 32: Compliance
10,O00W Generator Compliance UNITED STATES ENVIRONMENTAL PROTECTION AGENCY, WASHINGTON, DC 20460 2007 Model Year Certifcate of Conformity +Manufacturer Chongqing Dajiang Power Equipment Co. Ltd. +Certificate Number: CDP-NRSI-07-01 +Effective Date: 5/31/2006 +Date issued: 5/31/2006 Merrylin Zaw-Mon, Director, Compliance and Innovation Strategies Division, Office of Transportation and Air Quality. -
Page 33: Gasoline Engine
Owner's anual Specifications AC electrical Current Output 120V/240V AC @ 62/31A 60Hz Continuous/rated Wattage 7,500 WATTS Peak Wattage 10,000 WATTS Outlet (4) 120VAC, 3 spring grounded (2) 120/240V AC twist-lock outlet DC electrical 8.3A Gasoline engine Horsepower Type 4-cycle OHV air-cooled recoil start &...
Need help?
Do you have a question about the APG3090 and is the answer not in the manual?
Questions and answers

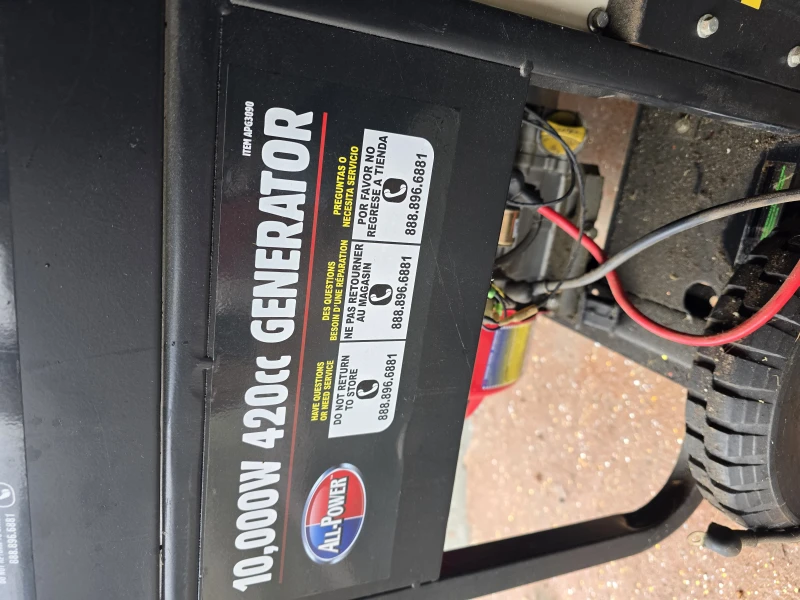

I have all power 10,000 generator apg3090 I need 2 know what kind battery can put in it and size of the battery that goes in that cover hole? Thanks you tony have a good day
