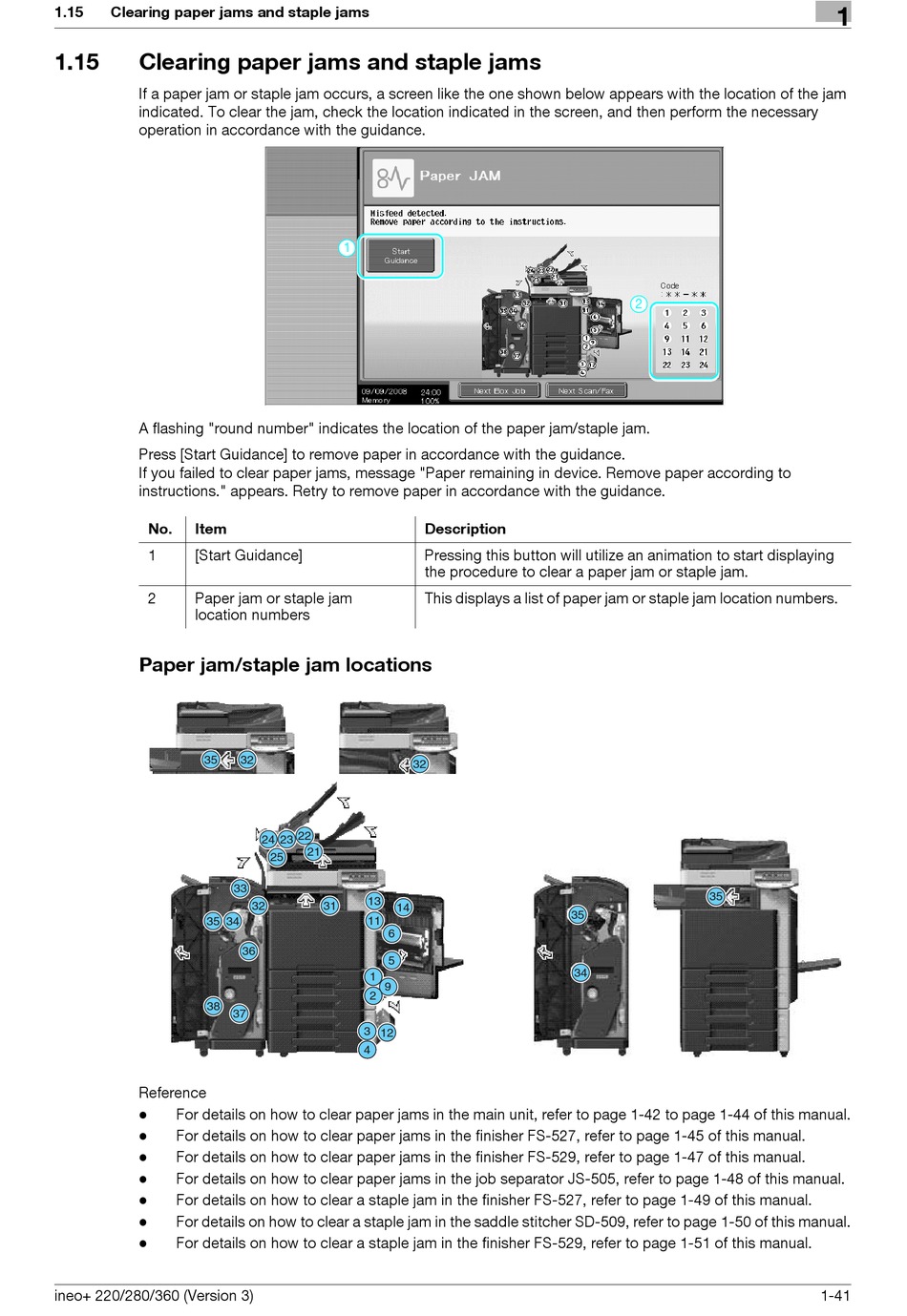

Clearing paper jams and staple jams

1.15 Clearing paper jams and staple jams
If a paper jam or staple jam occurs, a screen like the one shown below appears with the location of the jam
indicated. To clear the jam, check the location indicated in the screen, and then perform the necessary
operation in accordance with the guidance.
A flashing "round number" indicates the location of the paper jam/staple jam.
Press [Start Guidance] to remove paper in accordance with the guidance.
If you failed to clear paper jams, message "Paper remaining in device. Remove paper according to
instructions." appears. Retry to remove paper in accordance with the guidance.
No. Item
1 [Start Guidance]
2 Paper jam or staple jam
location numbers

Paper jam/staple jam locations

35
35
38
Reference
- For details on how to clear paper jams in the main unit, refer to page 1-42 to page 1-44 of this manual.
- For details on how to clear paper jams in the finisher FS-527, refer to page 1-45 of this manual.
- For details on how to clear paper jams in the finisher FS-529, refer to page 1-47 of this manual.
- For details on how to clear paper jams in the job separator JS-505, refer to page 1-48 of this manual.
- For details on how to clear a staple jam in the finisher FS-527, refer to page 1-49 of this manual.
- For details on how to clear a staple jam in the saddle stitcher SD-509, refer to page 1-50 of this manual.
- For details on how to clear a staple jam in the finisher FS-529, refer to page 1-51 of this manual.
