- Page 1 HA5-12G Mini-Converter HDMI 2.0 to 12G SDI Installation and Operation Guide Version 1.3 Published June 8, 2020...
-
Page 2: Notices
AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc. -
Page 3: Table Of Contents
Copyright ..........2 Contacting AJA Support ........2 Chapter 1 –... -
Page 4: Chapter 1 - Introduction

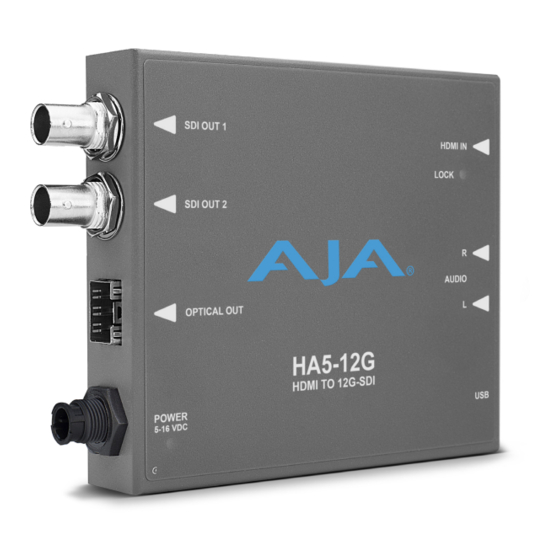

Chapter 1 – Introduction Overview AJA’s HA5-12G allows users to convert an HDMI 2.0 input to two 12G-SDI single link outputs. It includes two SDI DA outputs and transmits 12G-SDI on each SDI link, reducing cable runs when transporting 4K/UltraHD SDI. HA5-12G supports up to 8-Channels of audio from the HDMI source or 2-Channel analog audio (RCA), with eight or two channels of digital embedded audio on 12G-SDI. -
Page 5: Features
• Two 12G-SDI coax outputs • Embedded audio can be selected from the HDMI or Analog audio inputs • Fiber SFP model, HA5-12G-T, includes a 12G-SDI single mode fiber output • Fiber SFP model, HA5-12G-T-ST, includes a 12G-SDI single mode fiber output •... -
Page 6: I/O Connections
NOTE: For highest reliability, the mini converter relies on convection cooling instead of using a built-in fan. Therefore, when installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the HA5-12G with other mini converters. -
Page 7: Chapter 2 - Operation
Chapter 2 – Operation USB Control and Setup—Using AJA Mini-Config Your AJA Mini-Converter can be used right out of the box for some applications since it is designed to recognize inputs and perform standard actions automatically by default. However, to use its full capability, you must use AJA’s Mini-Config software application for PCs and Macs. - Page 8 5. Click Next to begin. Answer the questions in the subsequent dialogues. When finished, an AJA Mini-Config shortcut will be installed on the desktop, and you will be able to locate the AJA Mini-Config application in the AJA folder in the Programs listing.
-
Page 9: Running Aja Mini-Config
PC Startup To run AJA Mini-Config on a PC, double-click on the AJA Mini-Config icon on your desktop, or open the AJA folder in the program list and click on the AJA Mini- Config application located inside the AJA Mini-Config folder. -
Page 10: Operating Aja Mini-Config
AJA’s factory defaults. Operating AJA Mini-Config The AJA Mini-Config application provides a graphic interface for viewing settings and updating software. It consists of an information area at the top that shows the available Mini-Converters attached to the computer via USB, with a graphical rendering of the selected Mini-Converter showing all the connectors and their current state. -
Page 11: Tabbed Screens
8, 10, or 12 bit depth). To determine the bit depth for RGB, divide the bpp by 3. For example: • 24bpp = 8 bit depth • 30bpp = 10 bit depth • 36bpp = 12 bit depth HA5-12G Mini-Converter v1.3 www.aja.com... -
Page 12: Output Tab Screen
Selects the EDID setting. EDID (Extended Display Identification Data) is used to find the highest signal resolution that is compatible with both the source and the destination. When an HDMI source device is initially connected to the HA5-12G, the HA5-12G will communicate with the signal source about what formats the HA5-12G supports. - Page 13 • 4:4:4 YCbCr (HFR 4K/UltraHD 4:4:4 limited to 8 bit) RGB Range Selects the Color Range. Choose from the following: • Auto - (default) The HA5-12G automatically detects the RGB range (if the input signal is RGB). • SMPTE • Full 3G-SDI Mode Selects the 3G SDI Video Mode.
-
Page 14: Hdr Tab Screen
If so, it decodes and presents the static metadata descriptors as defined in CTA-861.3 and HDMI v2.0a. NOTE: The HA5-12G HDR function does not modify the video data. NOTE: Hover the cursor over each parameter field to view its corresponding CTA-861.3 description in a pop-up window. - Page 15 Maximum Frame Average Light Level (FALL) Represents the maximum of frame-based average light levels taken over an entire scene, and can be determined in the post environment. • Range: 0 cd/m to 65535 cd/m • Step size: 1 cd/m HA5-12G Mini-Converter v1.3 www.aja.com...
-
Page 16: Audio Tab Screen
NOTE: The actual channel pair depends on the selection made for the Channel Select control. For example, if Ch 1+2 is selected, but the Channel Select is set to Channels 9-16, then the Analog Audio will be embedded into SDI Ch 9+10. HA5-12G Mini-Converter v1.3 www.aja.com... -
Page 17: Update Tab Screen
This field shows the version of the firmware currently installed inside the Mini-Converter. Desired - This field shows the version of firmware embedded in the AJA Mini- Config application which you can install into the Mini-Converter by clicking the Update button. -
Page 18: Software Update Procedure
This is the factory assembly number. Serial Number - This is the factory set unique serial number of your Mini- Converter. If you ever call AJA Support for service, you may be asked for this number. HA5-12G Mini-Converter v1.3 www.aja.com... -
Page 19: Appendix A - Specifications
• (SD) 720 x 480p 59.94 • (SD) 720 x 480i 59.94 • RGB and YCbCr, 4:4:4/4:2:2, 8, 10, 12-bit NOTE: Raster and frame rate dependent, please see HA5-12G Video Formats in Documents and Manual. Video Input Digital • 1x HDMI Type A connector*, HDMI v2.0b Video Output Formats •... - Page 20 Video Output Digital • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082 • Single Link SD/HD/2K/UltraHD/4K Video Output Digital - Additional for HA5-12G-T Only • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082 • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max) •...
- Page 21 *HA5-12G, HA5-12G-T, and HA5-12G-T-ST each use approximately 12 watts of power and convection cooling. It will be warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling.
- Page 22 HA5-12G Video Input Formats 4K/UltraHD Inputs Supported 1x HDMI 2.0b: Format Frame Rate Colorspace Sampling Bit Depth • 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 YCbCr 4:2:2 8, 10, 12 • 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 YCbCr 4:2:0 ...
- Page 23 HA5-12G Video Output Formats 4K/UltraHD Outputs Supported 1x 12Gb SDI: L evel A/B Format Frame Rate Colorspace Sampling Bit Depth • 3840x2160p 23.98, 24, 25, 29.97, 30 A or B-DL YCbCr/RGB 4:4:4 10 • 3840x2160p 50, 59.94, 60 A or B-DL...
- Page 24 SD Outputs Supported 1x 270Mb SDI : Format Frame Rate Colorspace Sampling Bit Depth • 525i 59.94 YCbCr 4:2:2 • 625i YCbCr 4:2:2 10 HA5-12G Mini-Converter v1.3 www.aja.com...
-
Page 25: Appendix B - Safety And Compliance
Community throughout this document: AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY, SWITZERLAND HA5-12G Mini-Converter v1.3 www.aja.com... - Page 26 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. HA5-12G Mini-Converter v1.3 www.aja.com...
- Page 27 2016). If this equipment is used in a domestic environment, radio interference may occur, in which case, the user may be required to take corrective actions. Translated Warning and Caution Messages The following caution statements, warning conventions, and warning messages apply to this product and manual. HA5-12G Mini-Converter v1.3 www.aja.com...
- Page 28 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore HA5-12G Mini-Converter v1.3 www.aja.com...
- Page 29 Aviso! Dado que a ficha principal é utilizada como a desconexão para o dispositivo, esta deve manter-se prontamente acessível e funcional. Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di sconnessione, deve rimane prontamente accessibile e operabile. HA5-12G Mini-Converter v1.3 www.aja.com...
- Page 30 Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura seja realizada por uma central de serviços da AJA ou por um local autorizado. Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili dall’utente.
- Page 31 Hersteller. ¡Advertencia! Utilice solamente los accesorios y conexiones especificados y/o vendidos por el fabricante. Aviso! Utilize apenas equipamentos/acessórios especificados e/ou vendidos pelo fabricante. Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal produttore. HA5-12G Mini-Converter v1.3 www.aja.com...
- Page 32 Avvertenza I cavi a fibre ottiche attivi (ossia in cui si propagano segnali) emettono radiazioni invisibili. Non fissare lo sguardo direttamente sull'estremità di un cavo a fibre ottiche attivo; il cavo HA5-12G, HA5- 12G-T or HA5-12G-T-ST è un prodotto laser di Classe 1.
-
Page 33: Warranty And Liability Information
No amendment to or modification of this warranty will be binding unless in writing and signed by AJA Video. The laws of the State of California, USA will govern this warranty and any dispute arising from it. Any translation of this HA5-12G Mini-Converter v1.3... - Page 34 English and any non-English versions, the English version of this warranty will govern. This limited warranty gives you specific legal rights and you may have other rights that vary from jurisdiction to jurisdiction, some of which are noted above. HA5-12G Mini-Converter v1.3 www.aja.com...
-
Page 35: Index
Update Tab Screen 17 HDMI 2.0a Static Metadata Descriptors 14 HDMI Conversion Audio Tab Screen 16 HDR Detected HDR Tab Screen 14 HDR Tab Screen 14 High Dynamic Range HDR Tab Screen 14 Info Tab Screen 18 HA5-12G Mini-Converter v1.3 www.aja.com...
