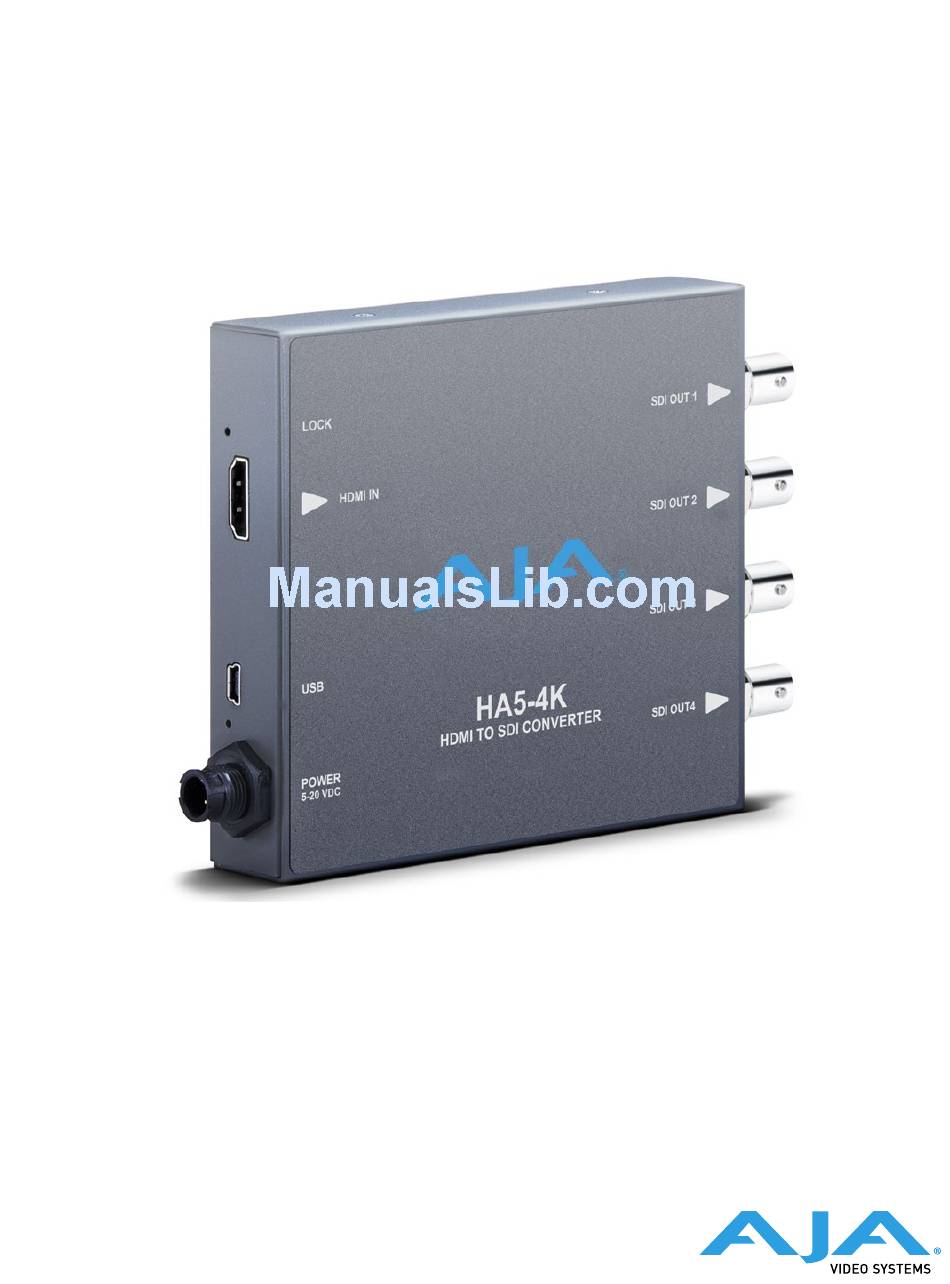

- Page 1 HA5-4K HDMI to SDI Mini-Converter Installation and Operation Guide Version 1.7r1 Published May 1, 2018...
-
Page 2: Notices
AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc. -
Page 3: Table Of Contents
HA5-4K Tech Specs ........ -
Page 4: Chapter 1 - Introduction

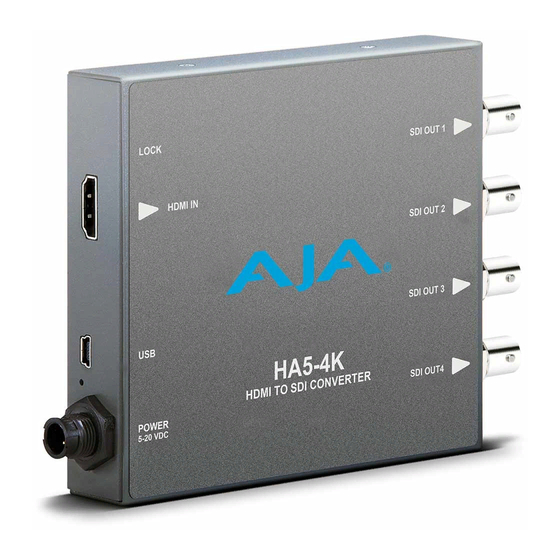

Overview AJA's HA5-4K Mini-Converter provides high-quality conversion of HDMI v2.0 to 4K SDI with 4 x 3G-SDI outputs. HA5-4K allows conversion of HDMI video from various sources, including DSLR's, mirrorless cameras, action cameras, or prosumer 4K video cameras to 4K SDI for use in professional workflows. The HA5-4K outputs SDI video with the same format and frame rate as the incoming HDMI video. -
Page 5: Features
• Support for HDMI 2.0a • HDR Static Metadata Descriptors • Setup via PC/Mac using USB port and supplied USB cable (AJA Mini-Config configuration software application available via download from AJA website) • Uses universal input +5V power supply AJA model DWP-U-R1 (included) •... -
Page 6: I/O Connections
NOTE: For highest reliability, the mini converter relies on convection cooling instead of using a built-in fan. Therefore, when installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the HA5-4K with other mini converters. -
Page 7: Chapter 2 - Operation
Chapter 2 – Operation USB Control and Setup—Using AJA Mini-Config Your AJA Mini-Converter can be used right out of the box for some applications since it is designed to recognize inputs and perform standard actions automatically by default. However, to use its full capability, you must use AJA’s Mini-Config software application for PCs and Macs. - Page 8 5. Click Next to begin. Answer the questions in the subsequent dialogues. When finished, an AJA Mini-Config shortcut will be installed on the desktop, and you will be able to locate the AJA Mini-Config application in the AJA folder in the Programs listing.
-
Page 9: Running Aja Mini-Config
PC Startup To run AJA Mini-Config on a PC, double-click on the AJA Mini-Config icon on your desktop, or open the AJA folder in the program list and click on the AJA Mini- Config application located inside the AJA Mini-Config folder. -
Page 10: Operating Aja Mini-Config
You can choose which Mini-Converter you wish to control using the pulldown menu in the upper right hand corner. If you want to configure multiple Mini- Converters in parallel, you can do it by running multiple instances of the AJA Mini-Config application and have each control a different Mini-Converter. -
Page 11: Tabbed Screens
Mini-Converter type. When you Click on any of the tab buttons, the pane below the tabs will change to match your tab selection. Any changes you make are immediately applied and will be saved, overwriting previous settings. HA5-4K HDMI to SDI Mini-Converter v1.7r1 www.aja.com... -
Page 12: Input Tab Screen
Input Tab Screen RGB Range Selects the Input Video Color Range for RGB signals. Choose from: • Auto (default) • SMPTE • Full Output Tab Screen HA5-4K HDMI to SDI Mini-Converter v1.7r1 www.aja.com... - Page 13 BNCs. A 4K/UHD LFR dual stream output signal can be distributed to each pair (1-2 and 3-4) of BNC output connectors. • Off - (default) no video sent to any extra BNC outputs;. HA5-4K HDMI to SDI Mini-Converter v1.7r1 www.aja.com...
-
Page 14: Hdr Tab Screen
If so, it decodes and presents the static metadata descriptors as defined in CTA-861.3 and HDMI v2.0a. NOTE: The HA5-4K HDR function does not modify the video data. NOTE: Hover the cursor over each parameter field to view its corresponding description in a pop-up window. - Page 15 Represents the maximum of frame-based average light levels taken over an entire scene, and can be determined in the post environment. • Range: 1 cd/m to 65535 cd/m • Step size: 1 cd/m HA5-4K HDMI to SDI Mini-Converter v1.7r1 www.aja.com...
-
Page 16: Audio Tab Screen
In Single output mode, when the DA function is Off the audio will only be sent out the SDI Out 1 BNC. When the DA Function is On, the audio will also be sent out the SDI Out 2, 3, and 4 BNCs. HA5-4K HDMI to SDI Mini-Converter v1.7r1 www.aja.com... -
Page 17: Update Tab Screen
This indicator bar shows the progress of firmware installation. Software Update Procedure 1. Check the AJA website for new AJA Mini-Config software for your Mini- Converter. If new software is found, download it and uncompress the file archive (zip). Here is the URL to use when checking: http://www.aja.com/en/products/mini-converters/mini-config-software... -
Page 18: Info Tab Screen
This is the factory assembly number. Serial Number - This is the factory set unique serial number of your Mini- Converter. If you ever call AJA Support for service, you may be asked for this number. HA5-4K HDMI to SDI Mini-Converter v1.7r1... -
Page 19: Appendix A - Specifications
• (4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30 • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • (Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30 HA5-4K HDMI to SDI Mini-Converter v1.7r1 www.aja.com... - Page 20 • 5.76" x 4.02" x 0.90" (146.31 × 102.11 × 22.86 mm) Weight • 0.6 lb (0.3 kg) Power • 5-20VDC regulated, 10 watts, power supply required, included with purchase • AC Adapter: 100-240VAC, 50/60 Hz, universal input HA5-4K HDMI to SDI Mini-Converter v1.7r1 www.aja.com...
- Page 21 *HA5-4K uses approximately 10 watts of power and convection cooling. It will be warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the HA5-4K with other Mini-Converters.
-
Page 22: Appendix B - Safety And Compliance
AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY, SWITZERLAND HA5-4K HDMI to SDI Mini-Converter v1.7r1 www.aja.com... - Page 23 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. HA5-4K HDMI to SDI Mini-Converter v1.7r1 www.aja.com...
- Page 24 Install and use the equipment according to the instruction manual. Translated Warning and Caution Messages The following caution statements, warning conventions, and warning messages apply to this product and manual. HA5-4K HDMI to SDI Mini-Converter v1.7r1 www.aja.com...
- Page 25 (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore HA5-4K HDMI to SDI Mini-Converter v1.7r1 www.aja.com...
- Page 26 Aviso! Dado que a ficha principal é utilizada como a desconexão para o dispositivo, esta deve manter-se prontamente acessível e funcional. Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di sconnessione, deve rimane prontamente accessibile e operabile. HA5-4K HDMI to SDI Mini-Converter v1.7r1 www.aja.com...
- Page 27 Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura seja realizada por uma central de serviços da AJA ou por um local autorizado. Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili dall’utente.
- Page 28 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto HA5-4K HDMI to SDI Mini-Converter v1.7r1 www.aja.com...
-
Page 29: Warranty And Liability Information
AJA Video, with shipping charges prepaid. AJA Video shall pay to return the product to Customer but only if to a location within the country in which the AJA Video service center is located. -
Page 30: Limitation Of Liability
No amendment to or modification of this warranty will be binding unless in writing and signed by AJA Video. The laws of the State of California, USA will govern this warranty and any dispute arising from it. Any translation of this...
