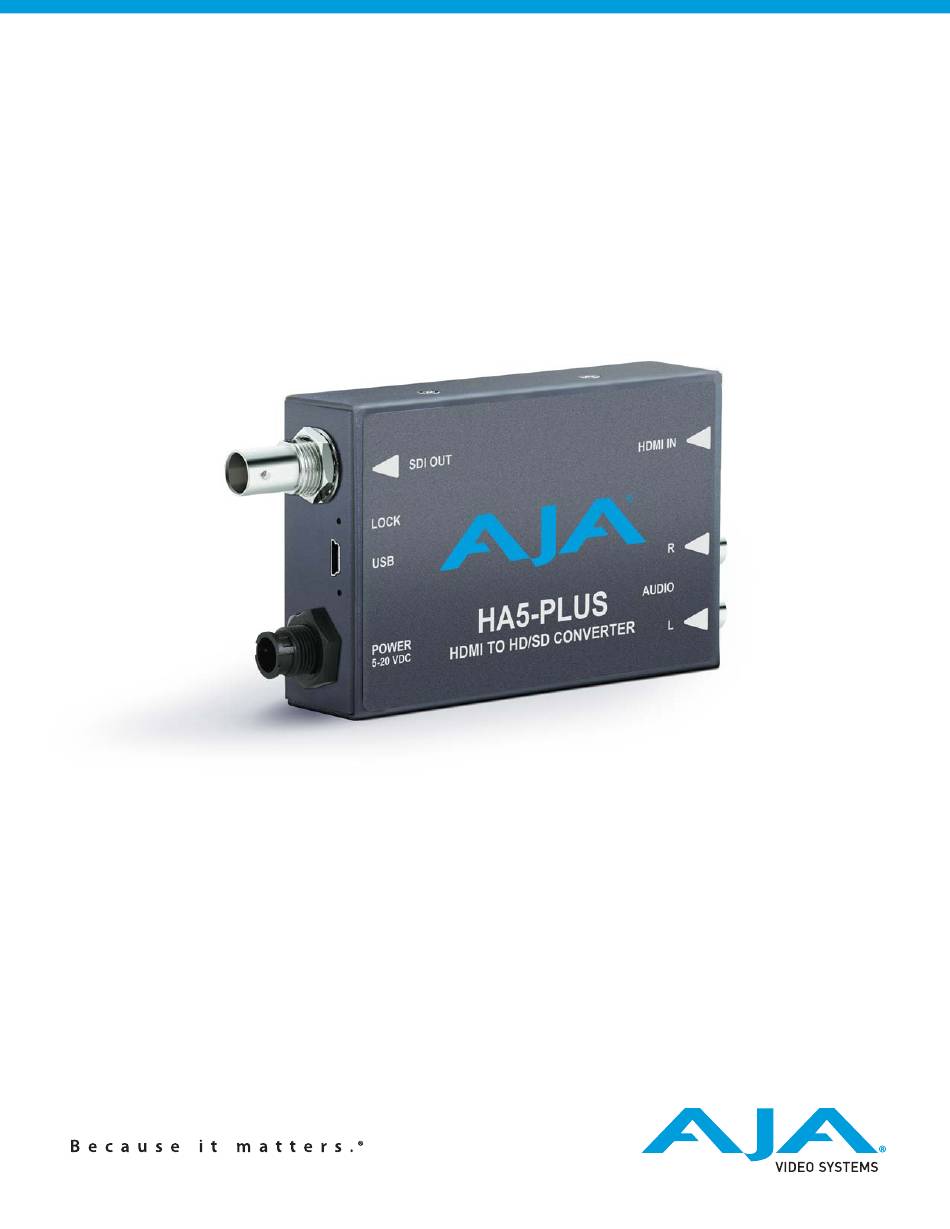

- Page 1 Mini-Converter HA5-Plus Installation & Operation Guide Version 1.2 Published: August 5, 2014...
-
Page 2: Table Of Contents
USB Control and Setup—Using AJA MiniConfig ........ - Page 3 Index............28 HA5-Plus Mini-Converter v1.2 www.aja.com...
-
Page 4: Notices
AJA®, lo®, Ki Pro®, KONA®, KUMO®,T-TAP®, Because it matters.® and ROI® are registered trademarks of AJA Video Systems, Inc. in the United States. AJA and Ki Pro are trademarks of AJA Video Systems, Inc. registered in other countries. AJA Control Room™, CION™, Corvid Ultra™, FiDO™, Science of the Beautiful™, TruScale™, TruZoom™, V2Analog™... -
Page 5: Chapter 1: Introduction
• Accepts 8 channels of HDMI embedded audio • Outputs 8 channels of SDI embedded audio (Channels 1-8 or 9-16) • HDMI cable supplied • Uses universal input +5V power supply AJA model DWP-U-R1 (included) NOTE: The HA5-Plus will not pass HDMI video with HDCP copy protection. -
Page 6: Block Diagram
Unbalanced Analog Audio Port Power In (RCA Jacks) Power Input NOTE: The Lock LED indicates valid input video by color. Green is SD video, red is HD video, amber is 3G video, off is no input. HA5-Plus Mini-Converter v1.2 www.aja.com... -
Page 7: User Controls
5. The converter will now run using the default factory settings. If you wish to alter the factory settings, you’ll need to: • Install the AJA MiniConfig software (supplied on CD) on your computer • Attach the converter via USB •... -
Page 8: Chapter 2: Operation
A Setup Wizard will guide you through the installation. Just click Next to begin. Answer all questions in the subsequent dialogues; when done, you will be able to locate the MiniConfig application in the AJA folder in the Programs listing. Running MiniConfig Connect the Mini-Converter to the PC or Mac via the supplied USB cable. -
Page 9: Pc Startup
PC Startup To run MiniConfig on a PC, find the AJA MiniConfig in the program list and locate the AJA MiniConfig application. Figure 4. PC MiniConfig Startup Mac Startup To run MiniConfig on a Mac, double-click the Applications folder and locate the AJA MiniConfig application. - Page 10 Screens are virtually the same on both PC and Mac, with subtle differences that reflect the general look of the platform environment. Running Multiple Mini- MiniConfig can manage multiple AJA Mini-Converters connected via USB—even when Converters: they are of differing types. However it only connects to one at a time. You can choose which Mini-Converter you wish to control using the pulldown menu in the upper right hand corner.
-
Page 11: Tabbed Screens
Any changes you make are immediately implemented and are saved, overwriting previous settings. Figure 8. MiniConfig, Input Tab Screen Input Video Selections RGB Range: Selects the Input Video Color Range. Choose Auto, SMPTE or Full color range. HA5-Plus Mini-Converter v1.2 www.aja.com... -
Page 12: Output Tab Screen
Click on the Output tab to view and make changes to the HA5-Plus output settings. Figure 9. MiniConfig, Output Tab Screen 3G Mode: This control selects the type of 3G SDI output. Choose 3G-Level A or 3G-Level B. HA5-Plus Mini-Converter v1.2 www.aja.com... -
Page 13: Audio Tab Screen
Ch 1-2 through Ch 7-8 that correspond to that set of embedded channels. Channel Select: Choose which set of 8 channels (4 pairs) of embedded audio the SDI output will carry. Select Channels 1-8 or Channels 9-16. HA5-Plus Mini-Converter v1.2 www.aja.com... -
Page 14: Update Tab Screen
This indicator bar shows the progress of software being installed. Software Update 1. Check the AJA website for new MiniConfig software for your Mini-Converter. If new Procedure software is found, download it and uncompress the file archive (zip). Here is the URL to use when checking: http://www.aja.com/en/products/mini-converters/mini-config-software... -
Page 15: Info Tab Screen
This is the factory set model name of the Mini-Converter (HA5-Plus). Assembly: This is the factory assembly number. Serial Number: This is the factory set unique serial number of your Hi5-Plus. If you ever call AJA Support for service, you may be asked for this number. HA5-Plus Mini-Converter v1.2 www.aja.com... -
Page 16: Appendix A: Specifications
Embed to either SDI audio Ch 1-8 or Ch 9-12 Physical Size 4.6" x 2.4" x 1" (117 x 61 x 25 mm) Power Uses AJA Power Supply model DWP-U-R1 (included) 100-240V, 50/60Hz Universal Input +5-20V DC, 3 Watts HA5-Plus Mini-Converter v1.2 www.aja.com... -
Page 17: Appendix B: Safety And Compliance
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe B prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. HA5-Plus Mini-Converter v1.2 www.aja.com... -
Page 18: European Union And European Free Trade Association (Efta)
Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe B. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. HA5-Plus Mini-Converter v1.2 www.aja.com... -
Page 19: Korea Kcc Compliance Statement
For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. HA5-Plus Mini-Converter v1.2 www.aja.com... -
Page 20: Translated Warning And Caution Messages
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un paño seco. Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco. Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno asciutto. HA5-Plus Mini-Converter v1.2 www.aja.com... - Page 21 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. HA5-Plus Mini-Converter v1.2 www.aja.com...
- Page 22 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. HA5-Plus Mini-Converter v1.2 www.aja.com...
- Page 23 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. HA5-Plus Mini-Converter v1.2 www.aja.com...
- Page 24 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. HA5-Plus Mini-Converter v1.2 www.aja.com...
- Page 25 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
- Page 26 ¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los cable(s) de la fuente de alimentación CA tipo brick. Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover a unidade. Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità. HA5-Plus Mini-Converter v1.2 www.aja.com...
-
Page 27: Warranty Information
AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located. -
Page 28: Index
Input Select setting 13 Input Tab Screen 11 Input Video Selections 11 MiniConfig Operation 9 Screen Description 10 Starting 8 MiniConfig installation Mac 8 PC 8 Mini-Converters Multiple 10 Multiple Mini-Converters 10 None Input Select 13 HA5-Plus Mini-Converter v1.2 www.aja.com...
