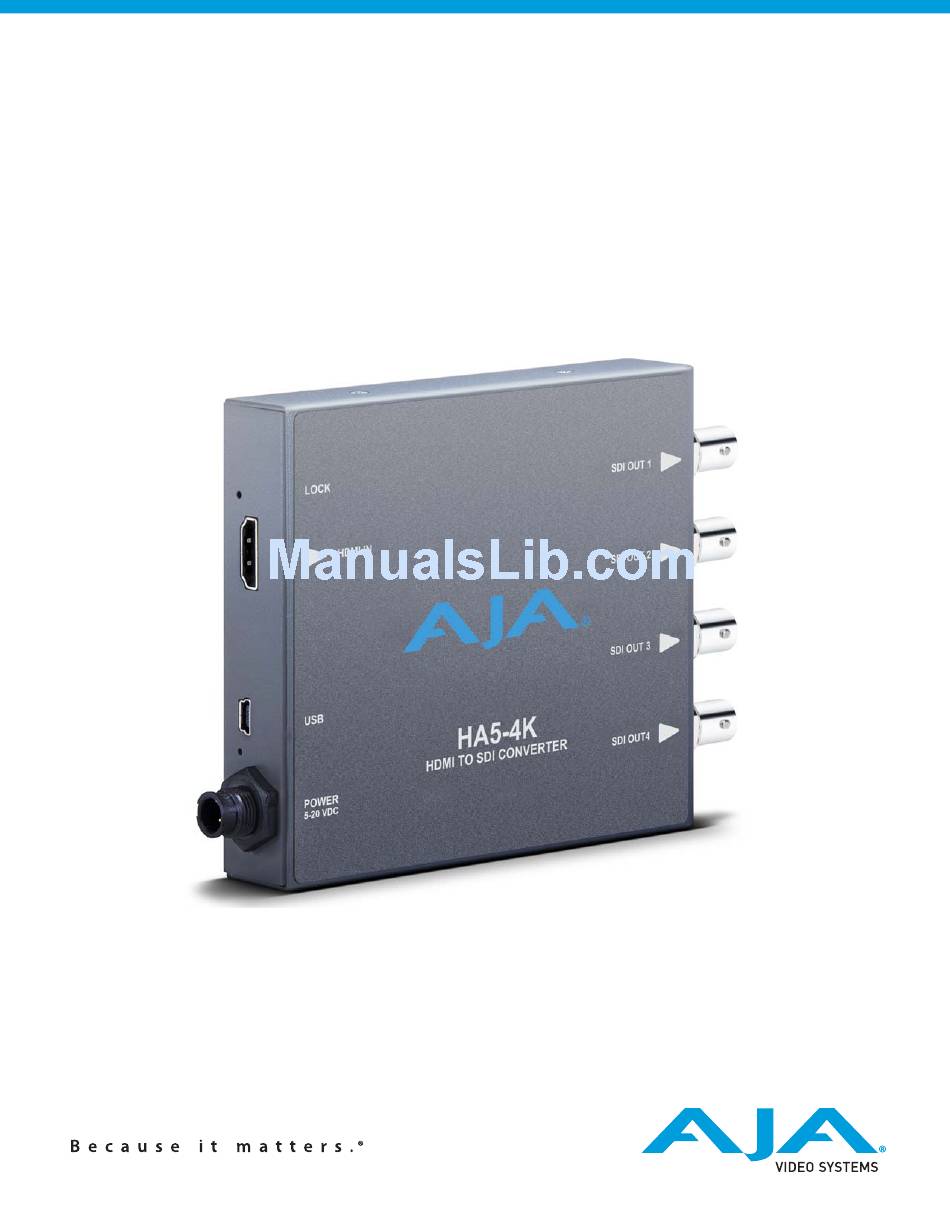

  • Page 1 HA5-4K Mini-Converter HDMI to SDI Installation and Operation Guide Version 1.3 Published: January 9, 2016...
  • Page 2: Table Of Contents

    USB Control and Setup—Using AJA Mini-Config........
  • Page 3 Index............32 HA5-4K Mini-Converter v1.3...
  • Page 4: Notices

    AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc. for use with camera products.
  • Page 5: Chapter 1: Introduction

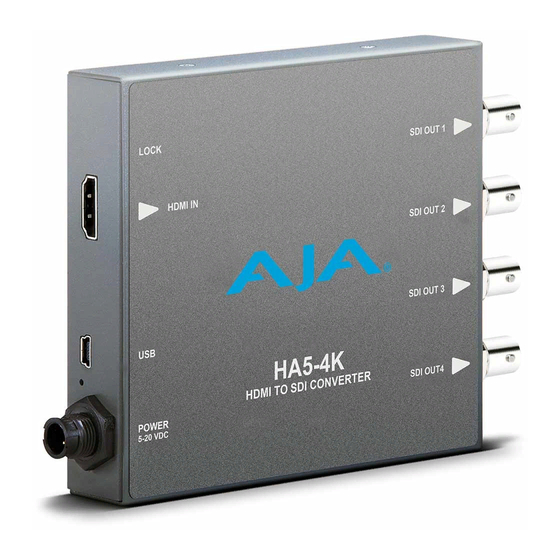

    Chapter 1: Introduction Overview AJA's HA5-4K Mini-Converter provides high-quality conversion of HDMI to 4K SDI with 4 x 3G-SDI outputs. HA5-4K allows conversion of HDMI video from various sources, including DSLR's, mirrorless cameras, action cameras, or prosumer 4K video cameras to 4K SDI for use in professional workflows.
  • Page 6: Features

    • P to PsF conversion • DA Function • Setup via PC/Mac with Mini-Config software using USB port and supplied USB cable • Uses universal input +5V power supply AJA model DWP-U-R1 (included) • 5 year warranty NOTE: 3D is not supported in this converter.
  • Page 7: I/O Connections

    2. Connect video equipment to the converter HDMI and BNC connectors. 3. Apply power to the converter (AJA power supply included). 4. The HA5-4K will now run using the default factory settings. If you wish to alter the factory settings, you’ll need to: •...
  • Page 8: Chapter 2: Operation

    Chapter 2: Operation USB Control and Setup—Using AJA Mini-Config Your AJA Mini-Converter can be used right out of the box for some applications since it is designed to recognize inputs and perform standard actions automatically by default. However, to use its full capability, you must use AJA’s Mini-Config software application for PCs and Macs.
  • Page 9: Mac Installation

    5. Click Next to begin. Answer the questions in the subsequent dialogues. When finished, an AJA Mini-Config shortcut will be installed on the desktop, and you will be able to locate the Mini-Config application in the AJA folder in the Programs listing.
  • Page 10: Running Mini-Config

    (supplied) to the Mini-Converter. PC Startup To run Mini-Config on a PC, double-click on the AJA Mini-Config icon on your desktop, or open the AJA folder in the program list and click on the AJA Mini-Config application located inside the Mini-Config folder.
  • Page 11: Operating Mini-Config

    Screens are virtually the same on both PC and Mac, with subtle differences that reflect the general look of the platform environment. Running Multiple Mini- Mini-Config can manage multiple AJA Mini-Converters connected via USB—even when Converters they are of differing types. However it only connects to one at a time. You can choose which Mini-Converter you wish to control using the pulldown menu in the upper right hand corner.
  • Page 12: Tabbed Screens

    When you Click on any of the tab buttons, the pane below the tabs will change to match your tab selection. Any changes you make are immediately applied and will be saved, overwriting previous settings. HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 13: Input Screen

    Input Screen Color Range Selects the Input Video Color Range for RGB signals. Choose from: • Auto (default) • SMPTE • Full HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 14: Output Screen

    • Crop - Crop pixels from left and right sides of the raster to fit a narrower aspect ratio (4K to UHD, or 2K to HD). Genlock Select the genlock reference. Choose from the following: • HDMI In (default) - Locks to incoming HDMI clock. • FreeRun - Locks to free running SDI internal clock. HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 15 Controls how Low Frame Rate (23.98, 24, 25, 29.97, 30 fps) incoming video will be output, using all four BNC outputs (at 1.5 Gbps each), or two BNC outputs (at 3 Gbps each). Choose from the following: • Quad 1.5 Gbps • Dual 3 Gbps HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 16: Audio Screen

    In Single output mode, when the DA function is Off the audio will only be sent out the SDI Out 1 BNC. When the DA Function is On, the audio will also be sent out the SDI Out 2, 3, and 4 BNCs. HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 17: Update Screen

    Mini-Converter’s non-volatile memory. Progress: This indicator bar shows the progress of firmware installation. Software Update 1. Check the AJA website for new Mini-Config software for your Mini-Converter. If new Procedure software is found, download it and uncompress the file archive (zip). http://www.aja.com/en/products/mini-converters/mini-config-software#support...
  • Page 18: Info Screen

    This is the factory set model name of the Mini-Converter (HA5-4K). Assembly: This is the factory assembly number. Serial Number: This is the factory set unique serial number of your HA5-4K. If you ever call AJA Support for service, you may be asked for this number. HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 19: Appendix A: Specifications

    • 3840x2160PsF 23.98, 24, 25, 29.97, 30 2 x 3G-SDI (Level B-DS) • 4096x2160p 23.98, 24, 25, 29.97, 30 • 4096x2160PsF 23.98, 24, 25, 29.97, 30 • 3840x2160p 23.98, 24, 25, 29.97, 30 • 3840x2160PsF 3.98, 24, 25, 29.97, 30 HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 20: Audio Input

    • 1280x720p 50, 59.94, 60 270Mb SD-SDI • 525i 29.97 (59.94 fields) • 625i 25 (50 fields) Audio Input • HDMI embedded audio, 24-bit, up to 8 channels Audio Output • SDI embedded audio, 24-bit, up to 8 channel HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 21: Physical

    Physical Power • +5 to 20V DC regulated, 10 watts max • AJA external power supply model DWP-U-R1 (included): • 100-240V, 50/60Hz universal input Size • 5.8” x 3.9” x 0.8” (147 mm x 99 mm x 20 mm) including connectors...
  • Page 22: Appendix B: Safety & Compliance

    Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe B prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 23: European Union And European Free Trade Association (Efta)

    Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe B. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 24: Recycling Notice

    This is a Class B product based on the standard of the VCCI Council (VCCI V-3/2014.04). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 25: Translated Warning And Caution Messages

    ¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un paño seco. Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco. Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno asciutto. HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 26 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 27 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 28 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 29 Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura seja realizada por uma central de serviços da AJA ou por um local autorizado. Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili dall’utente.
  • Page 30 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. HA5-4K Mini-Converter v1.3 www.aja.com...
  • Page 31: Warranty Information

    Warranty Information Limited Warranty AJA Video Systems, Inc. (AJA Video) warrants that this product will be free from defects in materials and workmanship for a period of five years from the date of purchase. If a product proves to be defective during this warranty period, AJA Video, at its option, will either repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
  • Page 32: Index

    Info Screen 18 Input Screen 13 Installation overview 7 Mapping setting 15 Mini-Config Acquiring 8 Control 5 Installation on Mac 9 Installation on PC 8 Operation 11 Running Multiple Converters 11 Screen Description 12 Startup 10 HA5-4K Mini-Converter v1.3 www.aja.com...
