Summary of Contents for AJA HA5

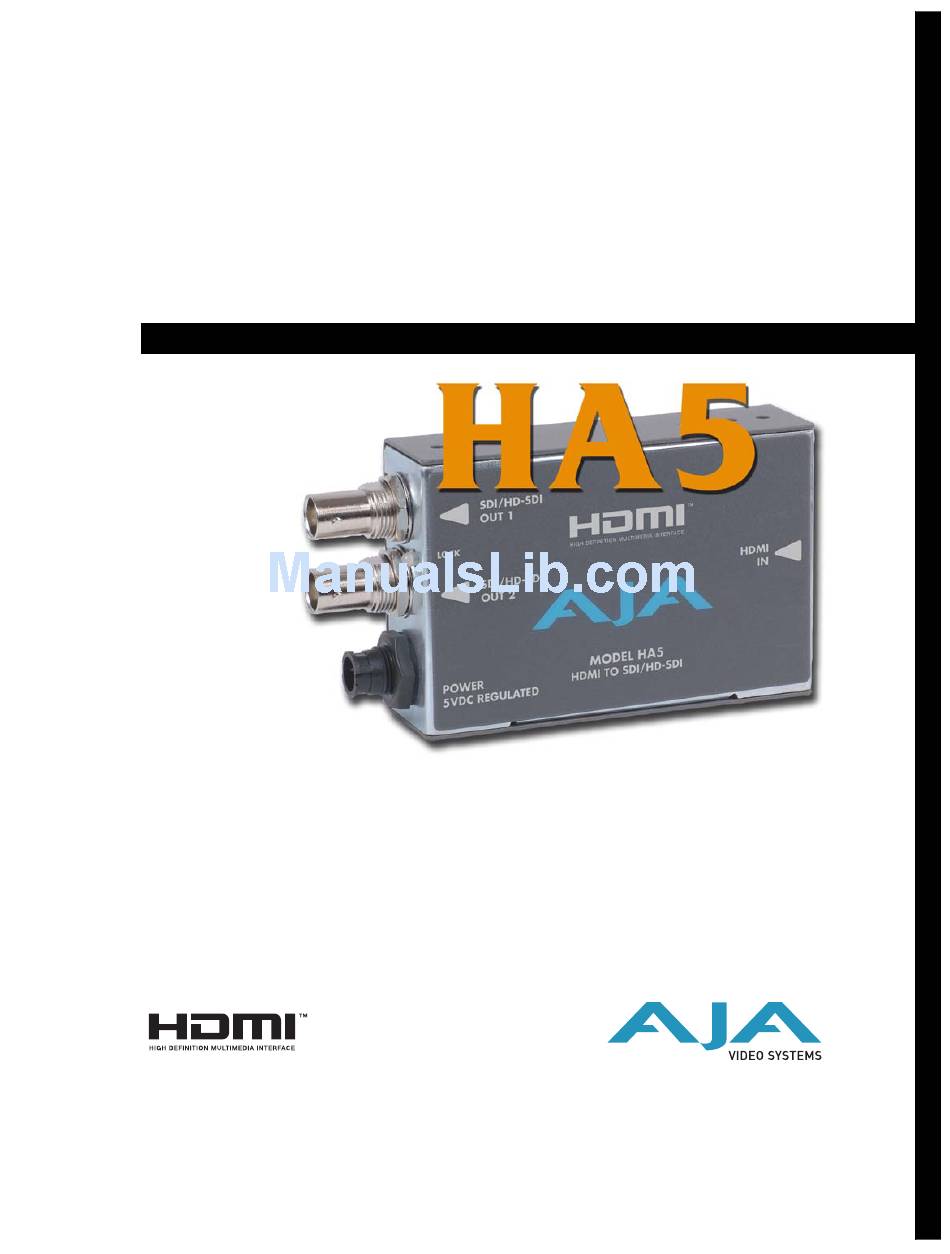

- Page 1 HDMI To HD-SDI/SDI Video and Audio Converter User Manual May 13, 2008...
-
Page 2: Contacting Support
AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located. -
Page 3: Block Diagram

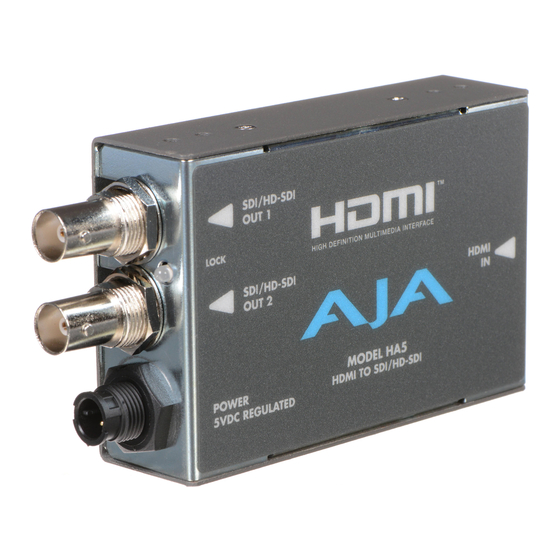

AJA HA5 HDMI to SDI/HD-SDI Video and Audio Converter User Manual — Introduction Introduction The HA5 converts HDMI to SDI or HD-SDI. Up to eight channels of HDMI audio are embedded into the SDI/HD-SDI output allowing a convenient single cable audio/video connection. -
Page 4: User Controls
YCbCr out (64-940) To access this jumper, remove the four phillips screws securing the back side of the HA5 case. Once the case cover is removed, locate the jumper block. Jumper positions 1 through 3 are clearly marked on the circuit board. -
Page 5: Specifications
AJA HA5 HDMI to SDI/HD-SDI Video and Audio Converter User Manual — Installation Installation Typically, HA5 installation consists of the following steps: 1. Ensure the HA5 is disconnected from power. 2. Connect equipment to the convertor BNCs and HDMI input connector.
