Chapter 3: Installation/Basic Troubleshooting
Double-ended 50-pin Cable
The connectors on the double-ended cable are provided with a grounding shield and strain relief
screws, as shown in the following figure.
1. You should ensure that the screws are torqued down at the Tenor AX and at the opposite end of the cable,
as follows.
•
See item 7 in the previous section for the torque specs for the Tenor AX side.
•
At the opposite end, if the screw is being secured into plastic, then the torque is
3.0 - 3.5 in. lbs. (0.34 - 0.39 Nm).
•
If the screw is being secured into metal, then the torque is 4.5 - 5.0 in. lbs.
(0.51 - 0.57 Nm).
2. Ensure that the grounding shield at the termination point is connected to an appropriate earth ground.
3-6

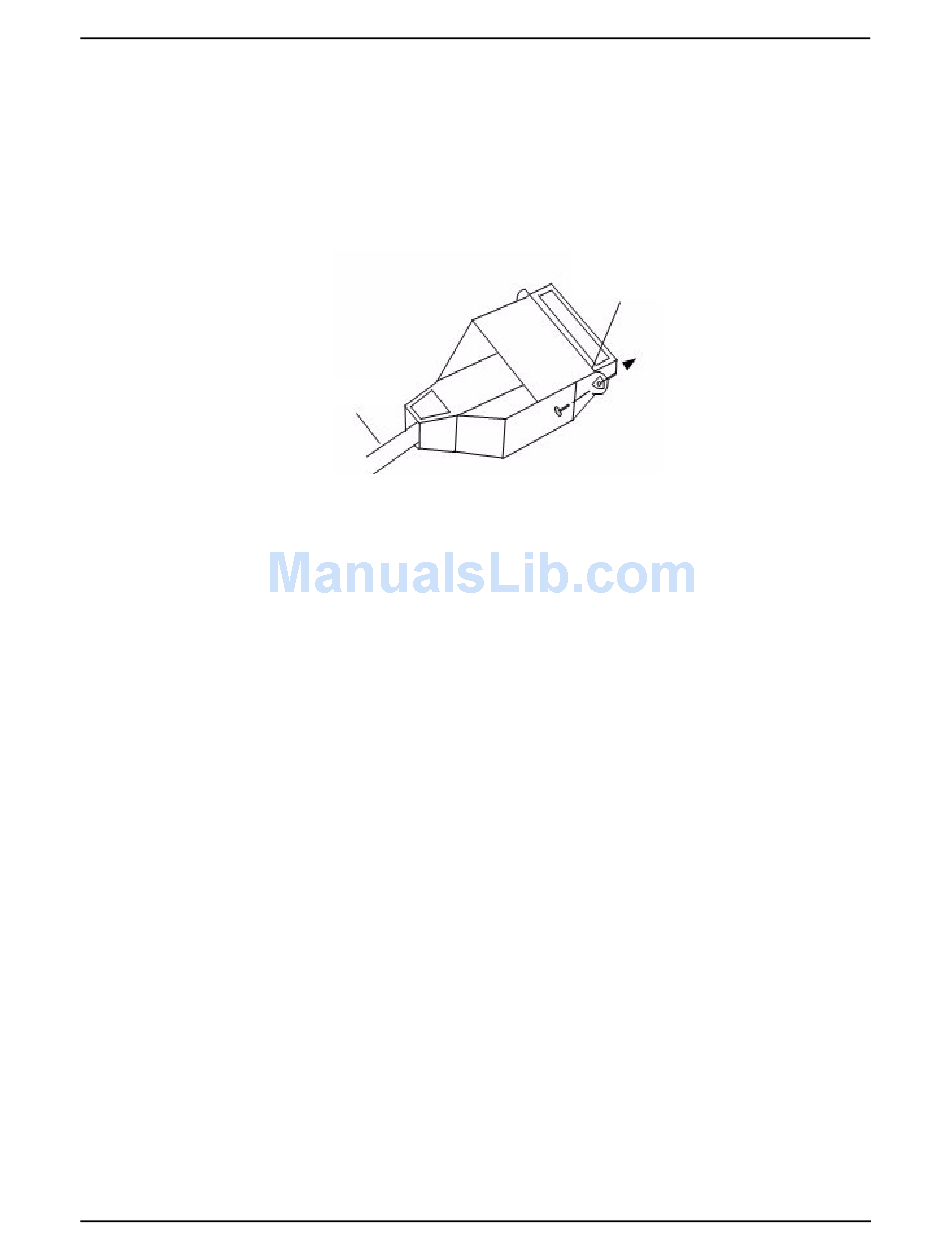

Figure 2-4 Torque down screws to make ground
Cable
Grounding
Screw
P/N 480-0062-00-10
