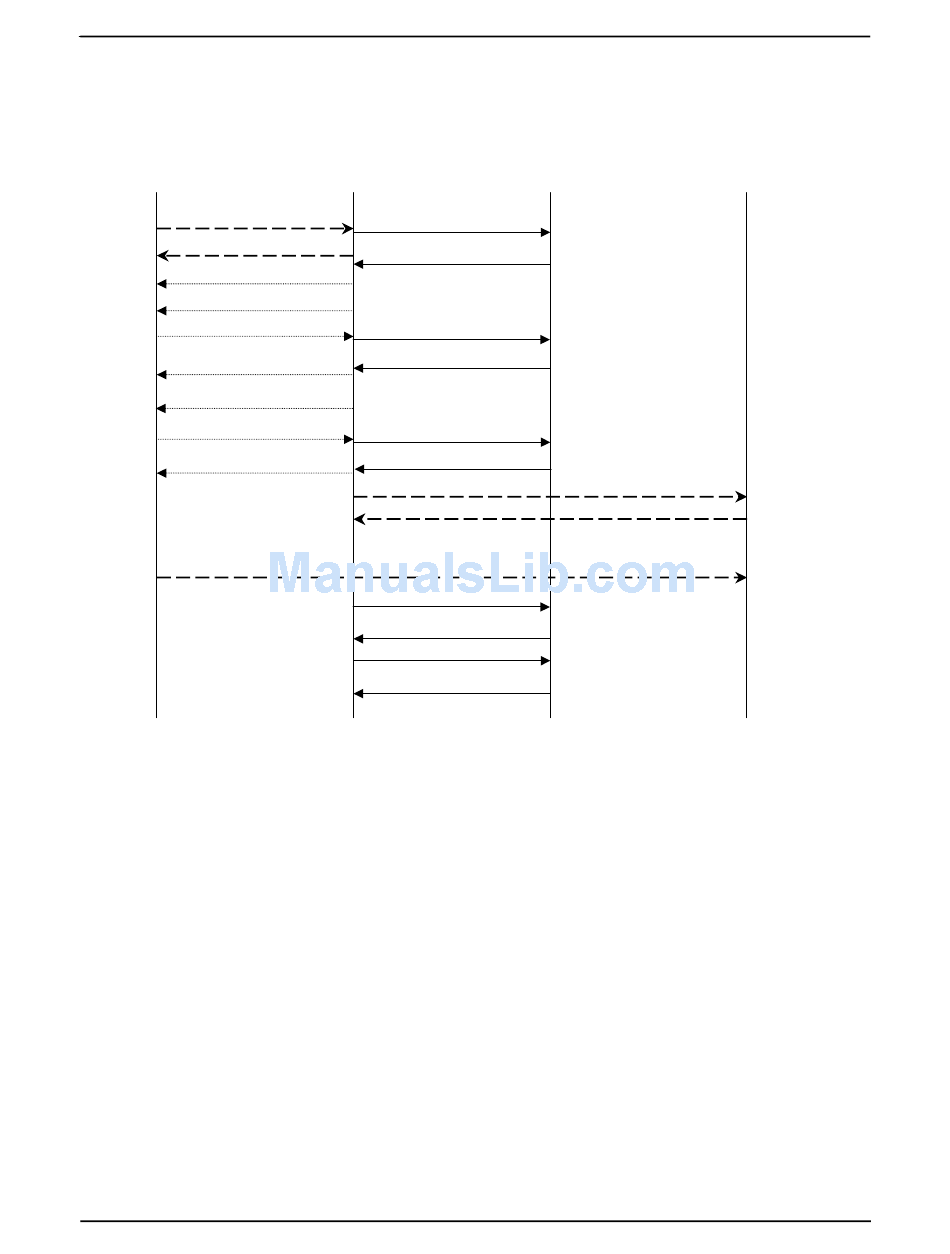

Figure 6-3 Pre-paid Calling Card - Call Flow (default language)
CALLING
PARTY
SETUP
CONNECT
"Welcome "
"Please Enter Your Card Number"
GET CARD NUMBER
"You have X dollars and Y cents remaining"
"Please Enter The Phone Number to call"
GET DNIS
"You have x minutes "
P/N 480-0062-00-10
PREPAID
ENABLED
TENOR
START ACCOUNTING
START ACCOUNTING ACK
AUTHENTICATION (CARD NUMBER)
AUTHENTICATION RESP (MONEY)
AUTHORIZATION ( DNIS )
AUTHORIZATION RESP (TIME)
CONNECT
DISCONNECT
STOP ACCOUNTING IP LEG
STOP ACCOUNTING IP LEG ACK
STOP ACCOUNTING TELEPHONY LEG
STOP ACCOUNTING TEL LEG ACK
Chapter 6: Advanced Topic: SNMP/IVR
RADIUS
SERVER
SETUP
CALLED
PARTY
6-23
