- Page 1 DVI FM 2000 GEF-DVI-FM2000 User Manual...
- Page 3 Notice Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. DVI FM 2000 Extender is a trademark of Gefen, LLC © 2011 Gefen, LLC. All rights reserved.
-
Page 4: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender unit Layout Sender unit Descriptions Receiver unit Layout Receiver unit Descriptions Connecting the DVI FM 2000 Wiring Diagram Specifications Warranty... -
Page 5: Introduction

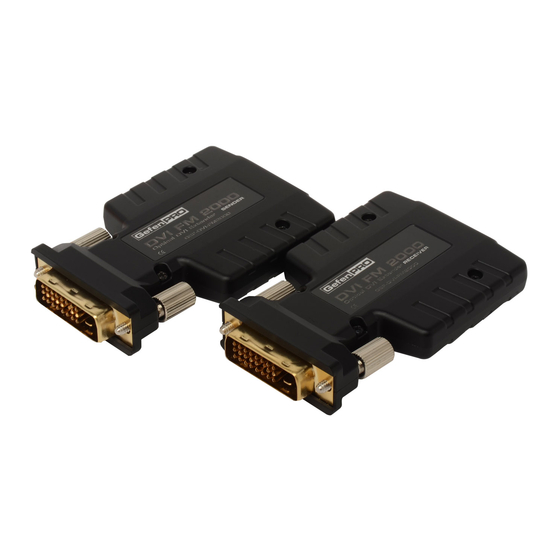

The GefenPRO DVI FM 2000 The Gefen DVI FM 2000 extends a Dual Link DVI source up to 1000 feet (300 meters) using a two- strand multi-mode (50 or 62.5 micron) fiber optic cable. Resolutions up to 1080p Full HD and 3840 x 2400 at 60 Hz are supported. -
Page 6: Operation Notes
The included power supply is required for the Receiver unit. However, if the source does not supply enough power to the Sender unit, then an optional power supply (Gefen part no. EXT-PS52AIP-1.3) must be used. In most situations, powering the Sender unit will not be... -
Page 7: Features
FEATURES Features • Extends Dual Link DVI up to 1000 feet (300 meters) using multi-mode (50 or 62.5 micron) fiber optic cable. • Supports HD resolutions up to 1080p Full HD at 120Hz • Supports VESA resolutions up to 1920 x 1200 (WUXGA) and 3840 x 2400 (WQUXGA). •... -
Page 8: Sender Unit Layout
SENDER UNIT LAYOUT Bottom Front Back... -
Page 9: Sender Unit Descriptions
SENDER UNIT DESCRIPTIONS Status This LED indicator will glow bright blue, indicating that there is a valid connection between the Sender unit and Receiver unit. This LED will glow red when there is an interruption in the signal between the Sender unit and the Receiver unit. -
Page 10: Receiver Unit Layout
RECEIVER UNIT LAYOUT Bottom Front Back... -
Page 11: Receiver Unit Descriptions
RECEIVER UNIT DESCRIPTIONS Status This LED indicator will glow bright blue, indicating that there is a valid connection between the Receiver unit and Sender unit. This LED will glow red when there is an interruption in the signal between the Receiver unit and the Sender unit. -
Page 12: Connecting The Dvi Fm 2000
CONNECTING THE DVI FM 2000 How to Connect the DVI FM 2000 Connect the Dual Link DVI source to the Sender unit. Connect the Dual Link DVI display to the Receiver unit. Connect the Sender unit and Receiver unit together using two SC multi-mode fiber optic cables. -
Page 13: Wiring Diagram
WIRING DIAGRAM Wiring Diagram for the DVI FM 2000 ® FIBER OPTIC CABLE Sender Dual-Link DVI Source Receiver Dual-Link DVI Display GEF-DVI-FM2000... -
Page 14: Specifications
SPECIFICATIONS Maximum Pixel Clock........................2 x 165 MHz Input Video Signal...........................1.2V p-p Input DDC Signal........................5V p-p (TTL) DVI Connector (Sender / Receiver)................DVI-D, 19-pin, male Fiber Optic Connector (Sender / Receiver)..................SC type Power Supply (Sender / Receiver).....................5V DC Power Consumption.....................2.5W (max.) per unit Operating Temperature........................0 ~ 50 °C Storage Temperature......................... -
Page 15: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi cations. - Page 16 Rev A6 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefenpro.com support@gefenpro.com This product uses UL listed power supplies.
