Summary of Contents for Gefen FW-1394B

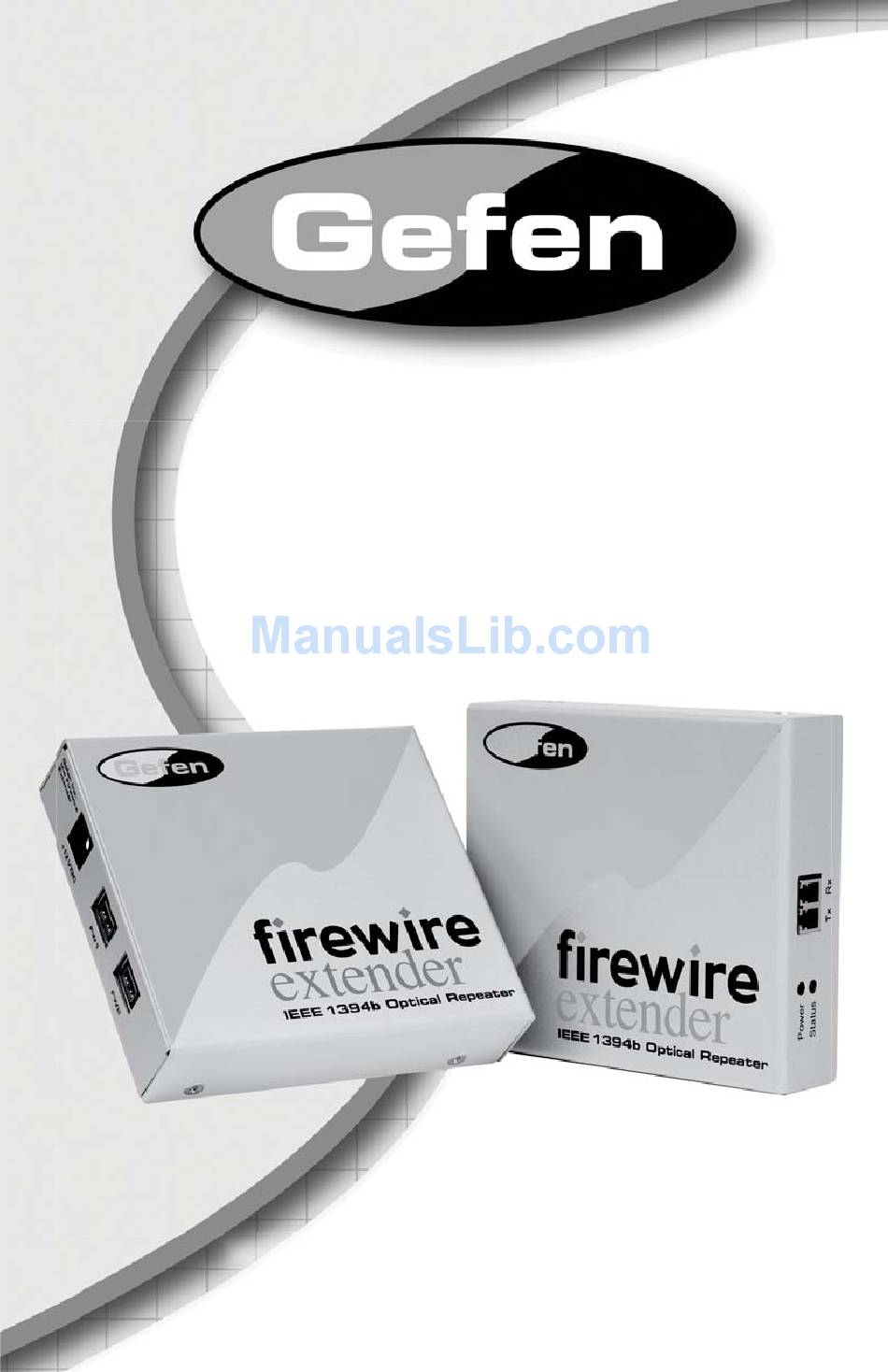

- Page 1 Firewire 800 Extender EXT-FW-1398B User Manual www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Firewire 800 Extender is a trademark of Gefen Inc. © 2008 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
Introduction Operation Notes Features Sender/Receiver Panel Layout Panel Descriptions Connecting And Operating The Firewire 800 Extender Wiring Diagram Specifi cations Warranty CONTENTS... -
Page 4: Introduction
Congratulations on your purchase of the Firewire 800 Extender. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Operation Notes
READ THESE NOTES BEFORE INSTALLING OR OPERATING THE FIREWIRE 800 EXTENDER • The fi ber optics cable must be treated carefully when connectors are exposed. They are susceptible to dust which can contribute to loss of pixels. • The Firewire 800 Extender is housed in a metal box for better RF shielding. OPERATION NOTES... -
Page 6: Features
Features • Extends Firewire devices up to 1640 (500 meters) feet • Transfer Rates of 100/200/400/800 Mbps • Compliant with IEEE 1394.a & b • Allows remote devices to operate in real-time, connected to the source • Works with Apple and PC computers •... -
Page 7: Sender/Receiver Panel Layout
SENDER/RECEIVER PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Descriptions
Status LED This LED will become active once a stable link has been established between the sending and receiving units. Power LED This LED will become active once the included power adapter has been connected. Fiber Optic TX and RX Inputs Connect a LC terminated fi... -
Page 9: Connecting And Operating The Firewire 800 Extender
CONNECTING AND OPERATING THE FIREWIRE 800 EXTENDER How to Connect the Firewire 800 Extender Connect the supplied Firewire cable from the computers Firewire port into one of Firewire 800 Extender unit. (Either unit will work as a sender or a receiver.) Connect the fi... -
Page 10: Wiring Diagram
WIRING DIAGRAM... -
Page 11: Specifi Cations
SPECIFICATIONS Input Connector Type ... 1394b Output Connector Type ...1394b Power Consumption ... 6 Watts (max.) Power Supply ... 12VDC Dimensions ... 4”W x 1”H x 3.625”D Shipping Weight ... 4 Lbs...
