Summary of Contents for Gefen DVI-3000HD

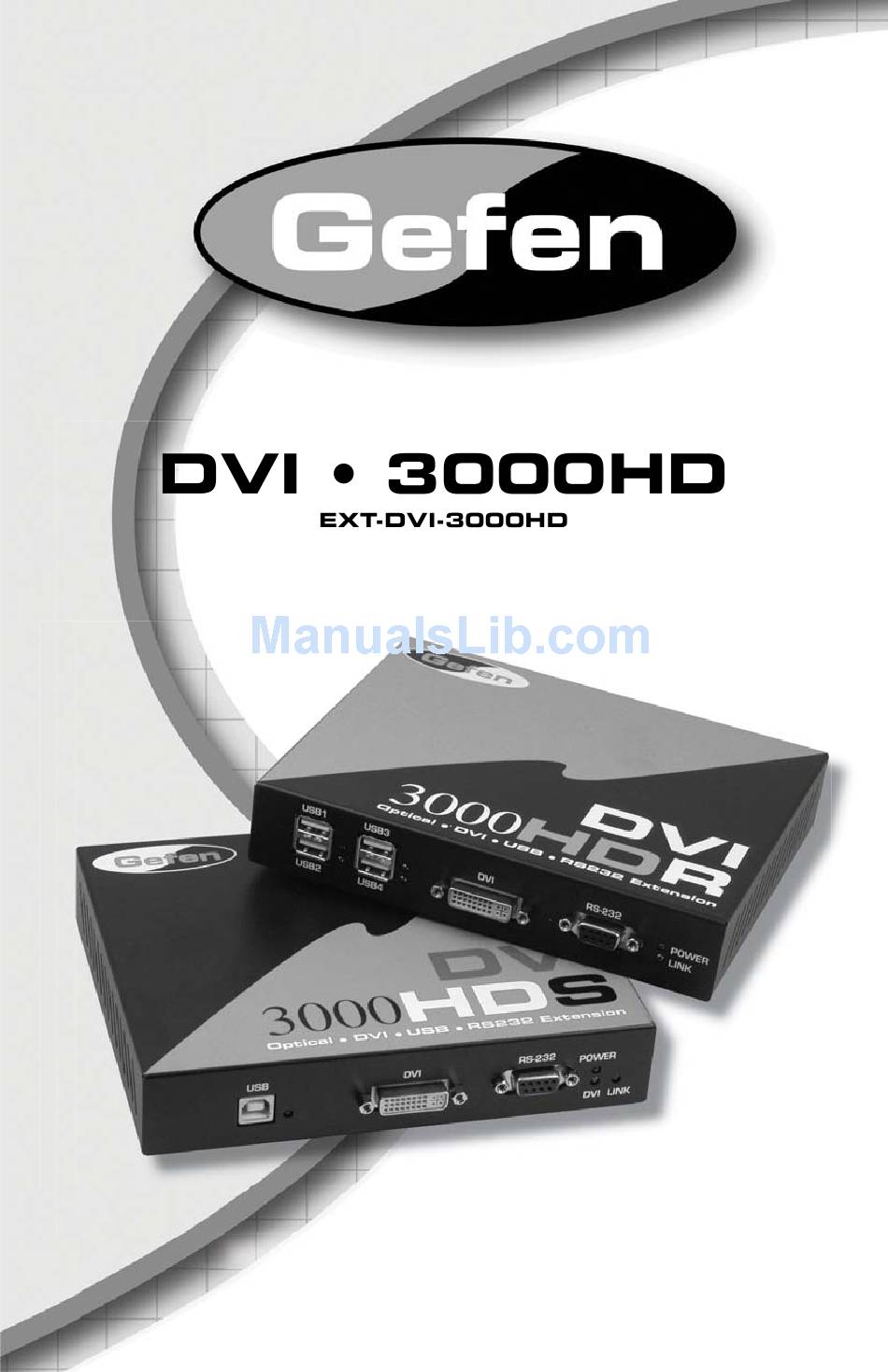

  • Page 1 User Manual www.gefen.com...
  • Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI • 3000HD is a trademark of Gefen Inc. © 2008 Gefen Inc., All Rights Reserved...
  • Page 3: Table Of Contents

    ntroduction / Operation Notes eatures / Package Includes ender Panel Descriptions eceiver Panel Descriptions Connecting And Operating The DVI • 300 pecifi cations Warranty CONTENTS...
  • Page 4: I Ntroduction / Operation Notes

    Congratulations on your purchase of the DVI • 3000HD. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate.
  • Page 5: F Eatures / Package Includes

    Features • Extension lengths up to 6.25 miles (10km) can be achieved • Extends any DVI compliant display • Extends USB 1.1 compliant devices • Extends RS-232C devices • Eliminates computer noise where you work • Uses duplex SC single mode or multi mode fi ber cables •...
  • Page 6: Sender Panel Descriptions

    SENDER PANEL DESCRIPTIONS USB B Input SC-SC Single/Multi-mode Fiber Input Front Panel RS-232 Input DVI Input Back Panel 12V DC Power Input Reset Button Power LED Indicator DVI LED Link LED Indicator Indicator...
  • Page 7: Receiver Panel Descriptions

    RECEIVER PANEL DESCRIPTIONS USB A Inputs USB A Inputs SC-SC Single/Multi-mode Fiber Input Front Panel RS-232 Output DVI Output Back Panel 12V DC Power Input Reset Button Power LED Indicator Link LED Indicator...
  • Page 8: Connecting And Operating The Dvi • 3000Hd

    CONNECTING AND OPERATING THE DVI • 3000HD How to Connect the DVI • 3000HD Connect the DVI source to the DVI • 3000HD sending unit’s DVI input using the supplied DVI cable. Connect the computer’s USB to the DVI • 3000HD sending unit’s USB input using the supplied USB A to B cable.
  • Page 9: Specifications

    SPECIFICATIONS Video Amplifi er Bandwidth ... 1.20 Gbps Input Video Signal ... 1.2 Volts p-p Input DDC Signal ... 5 Volts p-p (TTL) Single Link Range ... 1280x1024 DVI Connector ... DVI-D (19 pin) Female USB Input ... USB Type “B” Connector USB Output ...
