Alpine INE-S920E Owner's Manual
  1. Manuals
  2. Brands
  3. Alpine Manuals
  4. Car Navigation system
  5. INE-S920E
  6. Owner's manual

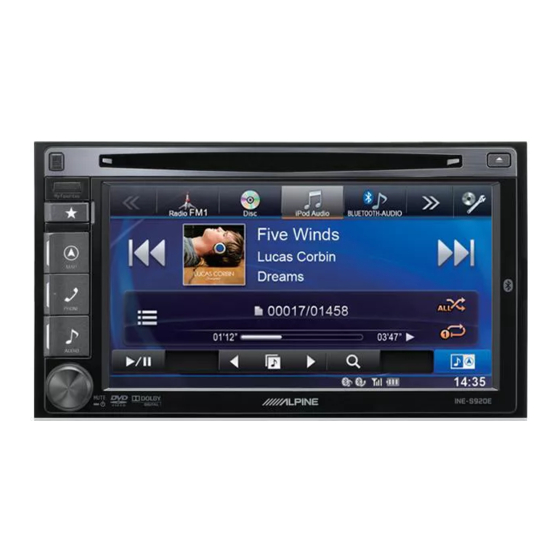

Alpine INE-S920E Owner's Manual

8-inch advanced navi station, audio-video section
Hide thumbs Also See for INE-S920E:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

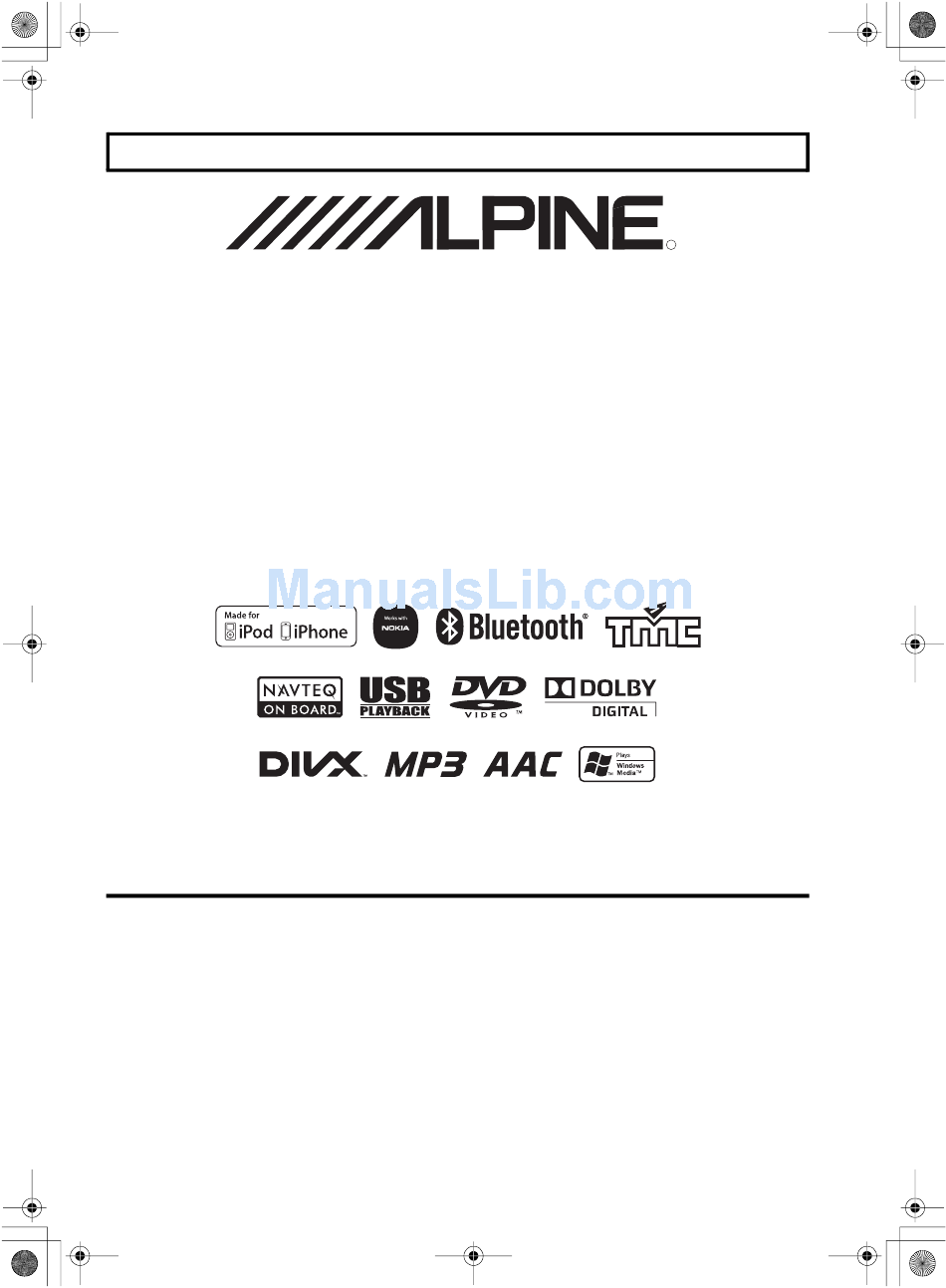

01GB00INE-S920E.book Page 1 Tuesday, June 12, 2012 10:56 AM
ADVANCED NAVI STATION
8-INCH ADVANCED NAVI STATION
ALPINE ELECTRONICS MARKETING, INC.
1-7, Yukigaya-Otsukamachi, Ota-ku,
Tokyo 145-0067, JAPAN
Phone: 03-5499-4531
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place, Torrance,
California 90501, U.S.A.
Phone 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF CANADA, INC.
777 Supertest Road, Toronto,
Ontario M3J 2M9, Canada
Phone 1-800-ALPINE-1 (1-800-257-4631)
YAMAGATA (Wuxi) Co., Ltd.
Block 28-25, Changjiang Nanlu, WND, jiangsu, China
01GB01INE-S920E.fm
AUDIO/VISUAL SECTION
INE-S920E
INE-Z928E
• OWNER'S MANUAL
Please read before using this equipment.
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
161-165 Princes Highway, Hallam
Victoria 3803, Australia
Phone 03-8787-1200
ALPINE ELECTRONICS GmbH
Wilhelm-Wagenfeld-Str. 1-3, 80807 München, Germany
Phone 089-32 42 640
ALPINE ELECTRONICS OF U.K. LTD.
Alpine House
Fletchamstead Highway, Coventry CV4 9TW, U.K.
Phone 0870-33 33 763
R R
ALPINE ELECTRONICS FRANCE S.A.R.L.
(RCS PONTOISE B 338 101 280)
98, Rue de la Belle Etoile, Z.I. Paris Nord Il,
B.P. 50016, 95945 Roissy Charles de Gaulle
Cedex, France
Phone 01-48638989
ALPINE ITALIA S.p.A.
Viale C. Colombo 8, 20090 Trezzano
Sul Naviglio (MI), Italy
Phone 02-484781
ALPINE ELECTRONICS DE ESPAÑA, S.A.
Portal de Gamarra 36, Pabellón, 32
01013 Vitoria (Alava)-APDO 133, Spain
Phone 945-283588
ALPINE INE-S920E/INE-Z928E 68-21057Z31-A (EN)
Designed by ALPINE Japan
Printed in China
68-21057Z31-A (Y_B5)
