Additional menus

1. The Privacy mask and System startup are submenus of Program select menu 2 (Figure 47).

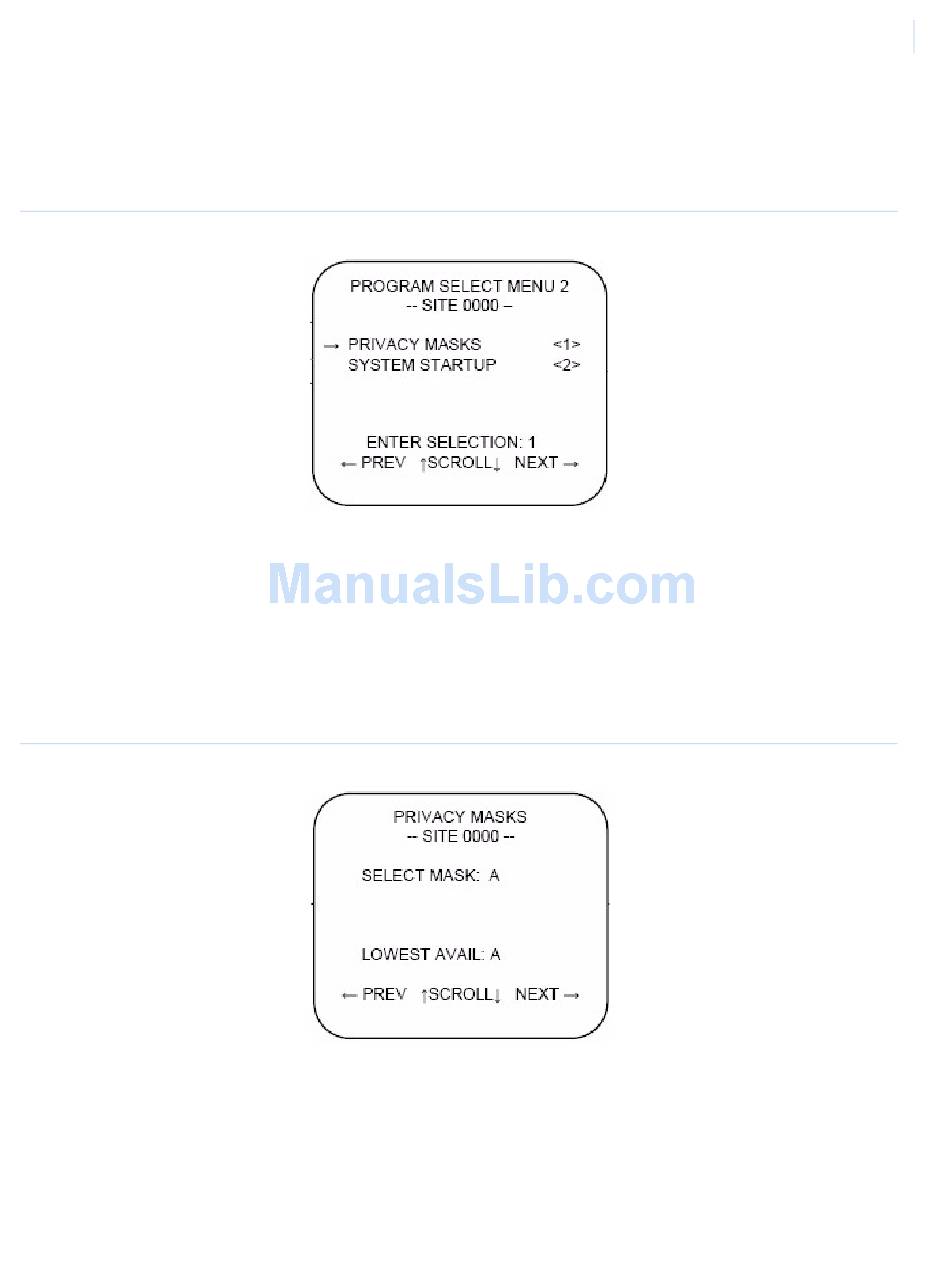

Figure 47. Program select additional menus

Privacy masks

To set a privacy mask, do the following:
Note: Privacy masks do not display if they were not implemented in your installation.
1. From the Program select menu (Figure 7 on page 7), select 6 to go to Additional menus.
2. From the Program select menu 2 (Figure 47), select 1. The Privacy masks menu displays (Figure 48).
Figure 48. Privacy mask
3. Select the letter of the mask you want to create or edit (A through X).
4. Pan right with the joystick to proceed.
5. Center the crosshairs on the center of the area you want to mask off and press the iris + button
(Figure 49 on page 36).
Chapter 1 35
Programming
