3. Use the keypad to enter the number (01 to 16) of the area to be programmed and titled. The Area 01
programming menu displays.

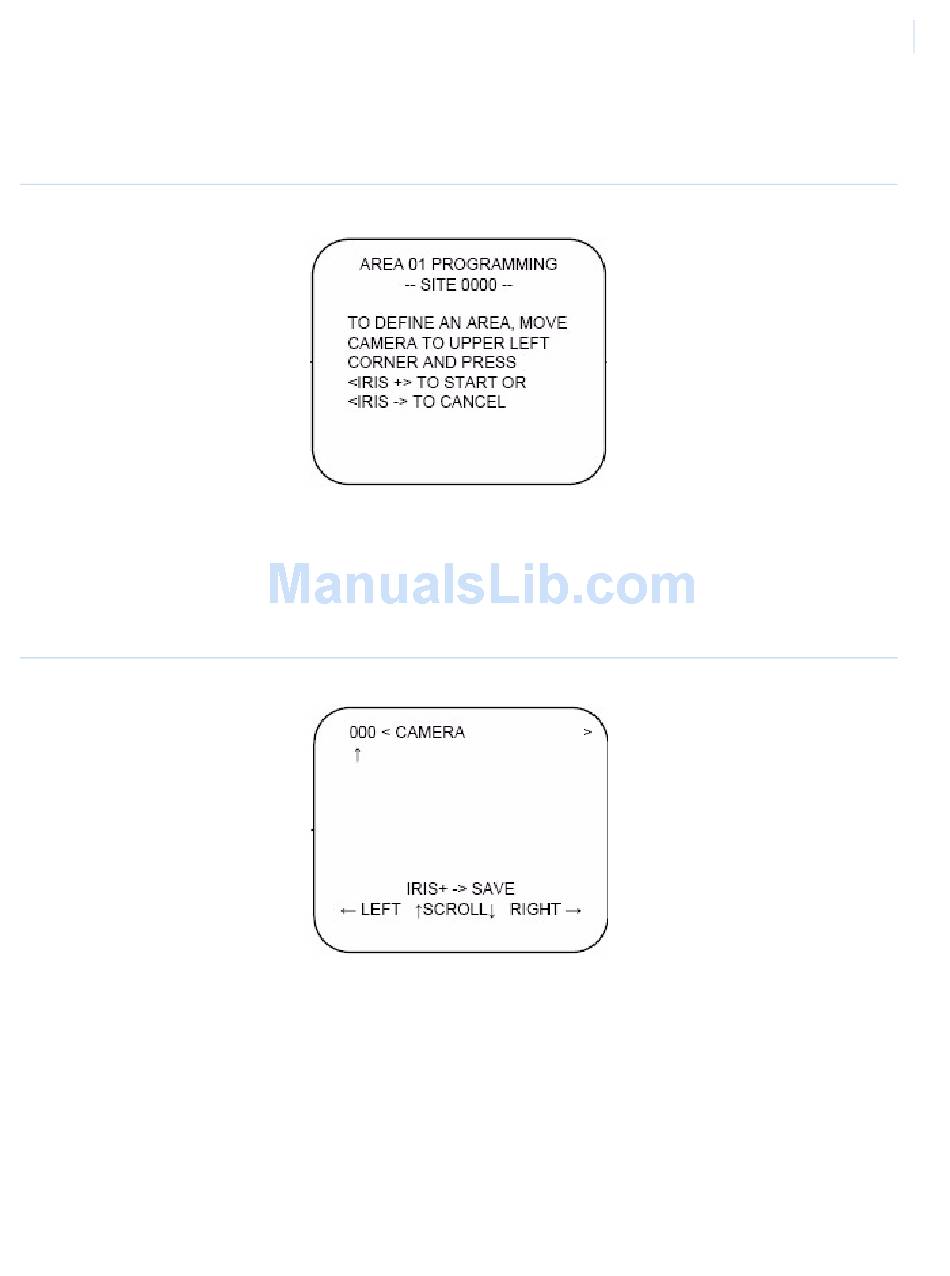

Figure 39. Area 01 programming menu
4. To define the boundaries of an area, use the joystick to pan/tilt the camera to the upper left corner of
the desired area and press the iris + button.
5. Use the joystick to pan/tilt the camera to the lower right corner of the desired area and press the iris +
button.
6. The Title entry menu displays.
Figure 40. Title entry menu
To assign and edit area titles, do the following:
1. Confirm that the cursor (arrow) is under the area ###.
2. To move the display location for the title up or down on the screen, move the joystick up or down. (The
title cannot be moved left or right.)
3. To enter or edit the title, move the cursor to the right (inside the parenthesis).
4. Move the joystick up and down to scroll to the desired alphanumeric character (Figure 34 on page 25).
5. Move the joystick right and left to move to the next character or edit the previous character.
6. When the title is complete, press the iris + button to save the title and return to the Assigning area titles
menu.
