Presets menu

CyberDome II cameras can store up to 128 preset positions (numbered 1 to 128). To enter preset positions, do
the following:
1. Select the Program select menu (Figure 7 on page 7).
2. Navigate to option 2 and pan right. The Preset programming menu displays (Figure 33).

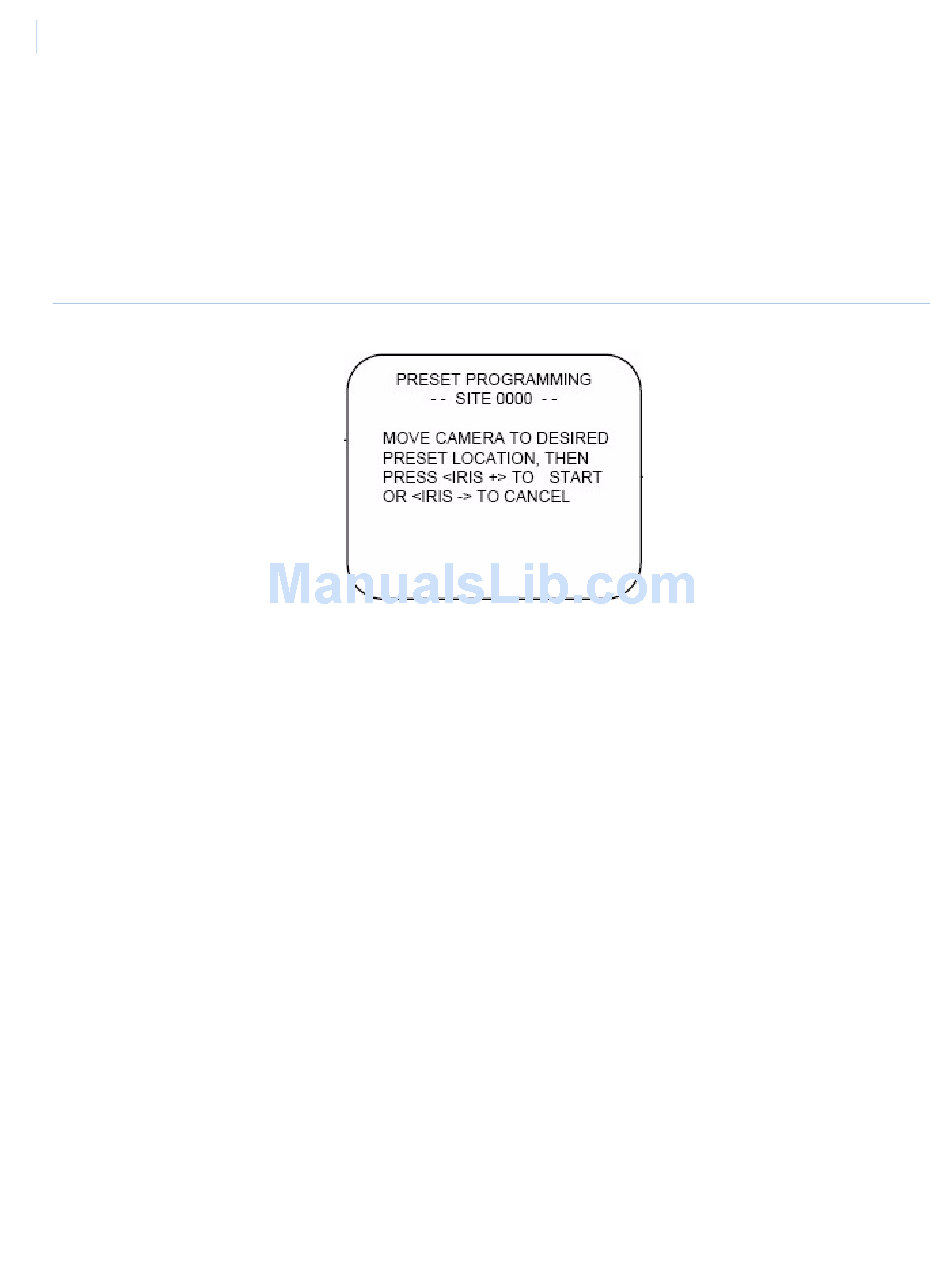

Figure 33. Preset programming menu
3. Move the camera to the desired position.
4. Press the iris + button.
5. Enter a three-digit number to indicate the preset position (000 to 128). Use a number that is equal to or
greater than the lowest unused number indicated on the screen.
Note: Preset numbers 62 and 63 are reserved for autopan limit settings.
A message displays for two seconds to confirm that the preset position has been stored.
6. Repeat steps 3 through 5 for all additional preset positions to be stored.
7. Press iris- to return to the Program select menu.
