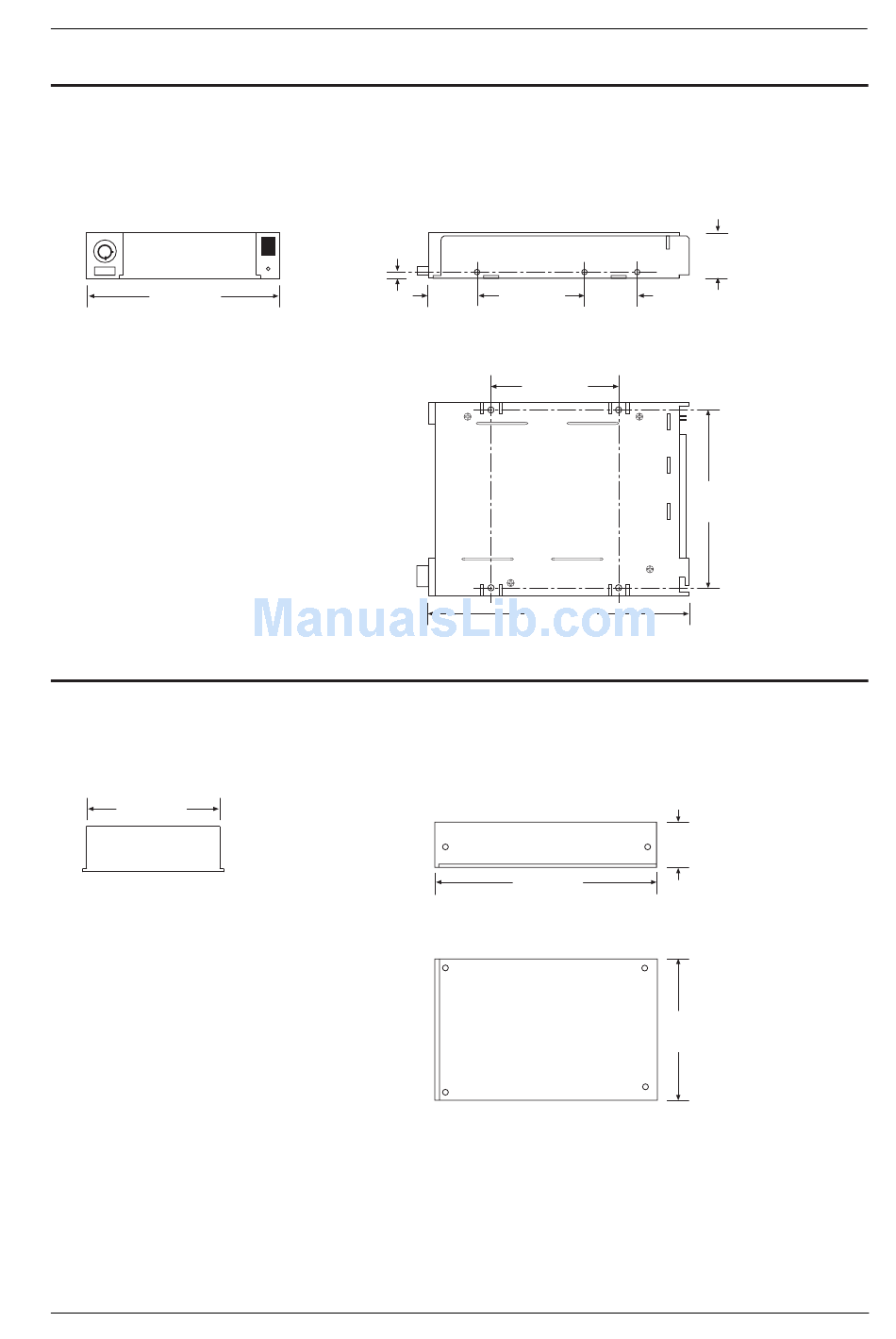

Figure A-1: De50 Physical Dimensions - StorCase Technology Data Express DE50 User Manual

Appendix A - Specifications/Dimensions
Receiving Frame
with Carrier Installed
4.01
(101.9mm)
Carrier
Only
2.89
(73.4mm)
DE50 for Backup User's Guide - Rev. D00
0.18
(4.6mm)
1.02
(26.0mm)

Figure A-1: DE50 Physical Dimensions

(Dimensions are for reference only)
2.36 1.18
(60.0mm) (30.0mm)
2.75
(69.9mm)
5.65
(143.5mm)
0.95
(24.1mm)
5.04
(128.0mm)
2.96
(75.2mm)
StorCase Technology, Inc.
21
1.01
(25.7mm)
3.71
(94.2mm)
