Figure 7: Drive Carrier Components; Figure 8: Drive Carrier Circuit Board Installation - StorCase Technology Data Express DE50 User Manual

8
2. Disassemble the drive carrier unit into its four (4) main components as shown in Figure
7 (the drive carrier unit is shipped pre-assembled).
Top
Cover
3. Install the Drive Carrier Circuit Board (cable-side down) onto the drive by attaching the
I/O cable on the board to the drive (Figure 8).
2.5” Drive
(Not Included)
1
StorCase Technology, Inc.
Bottom
Plate

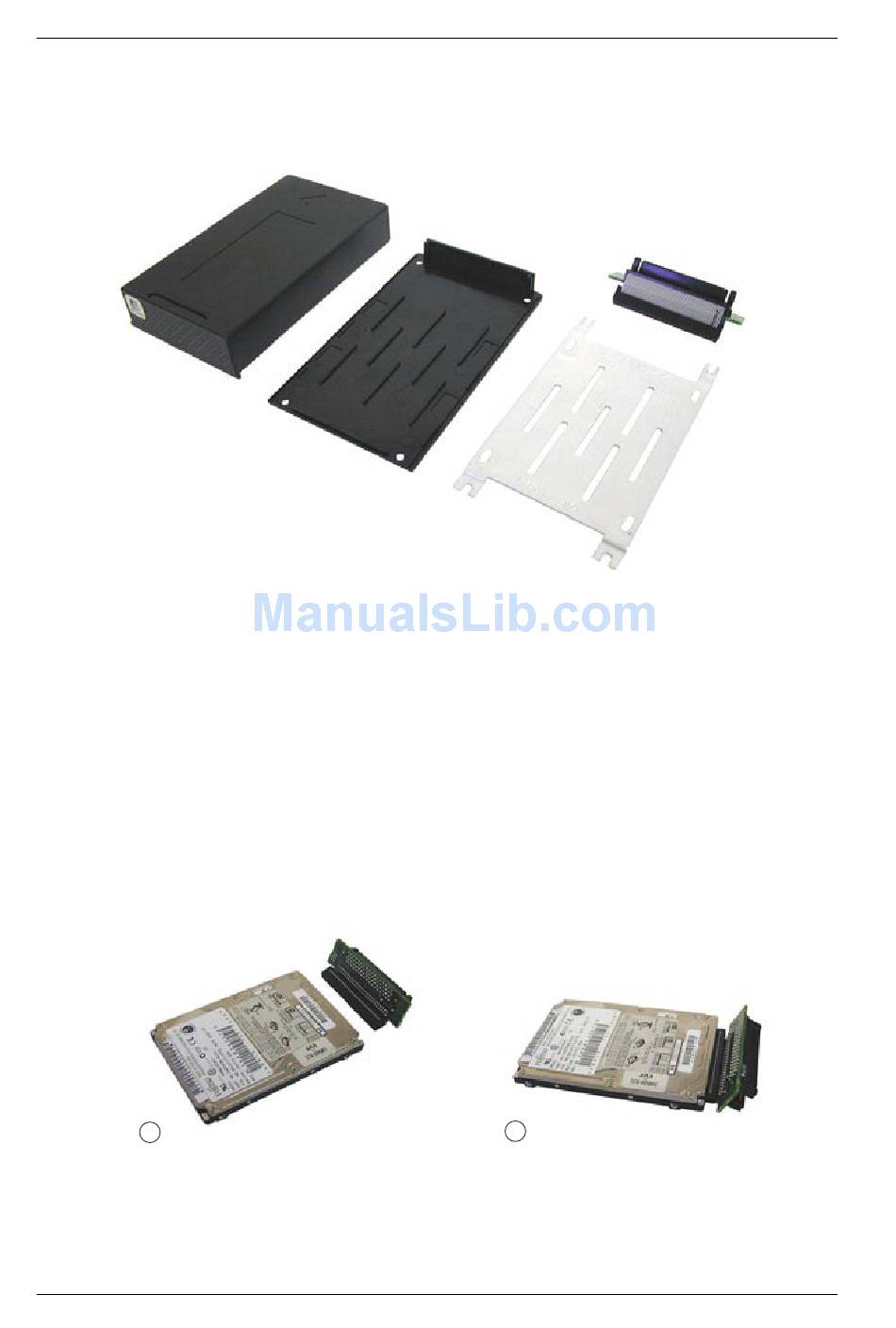

Figure 7: Drive Carrier Components

Drive Carrier
Circuit Board
(Cable-side Down)

Figure 8: Drive Carrier Circuit Board Installation

Drive Mounting
Bracket
2
Drive with Circuit
Board Installed
DE50 for Backup User's Guide - Rev. D00
Installation
Drive Carrier
Circuit Board
