Carefully insert the drive/bracket assembly into the top cover (Figure 10).
6.
Install the bottom plate onto the top cover and secure with the samefour (4) #4-40
Phillips screws saved from Step 1 (Figure 6).
NOTE:
StorCase Technology, Inc.
Front

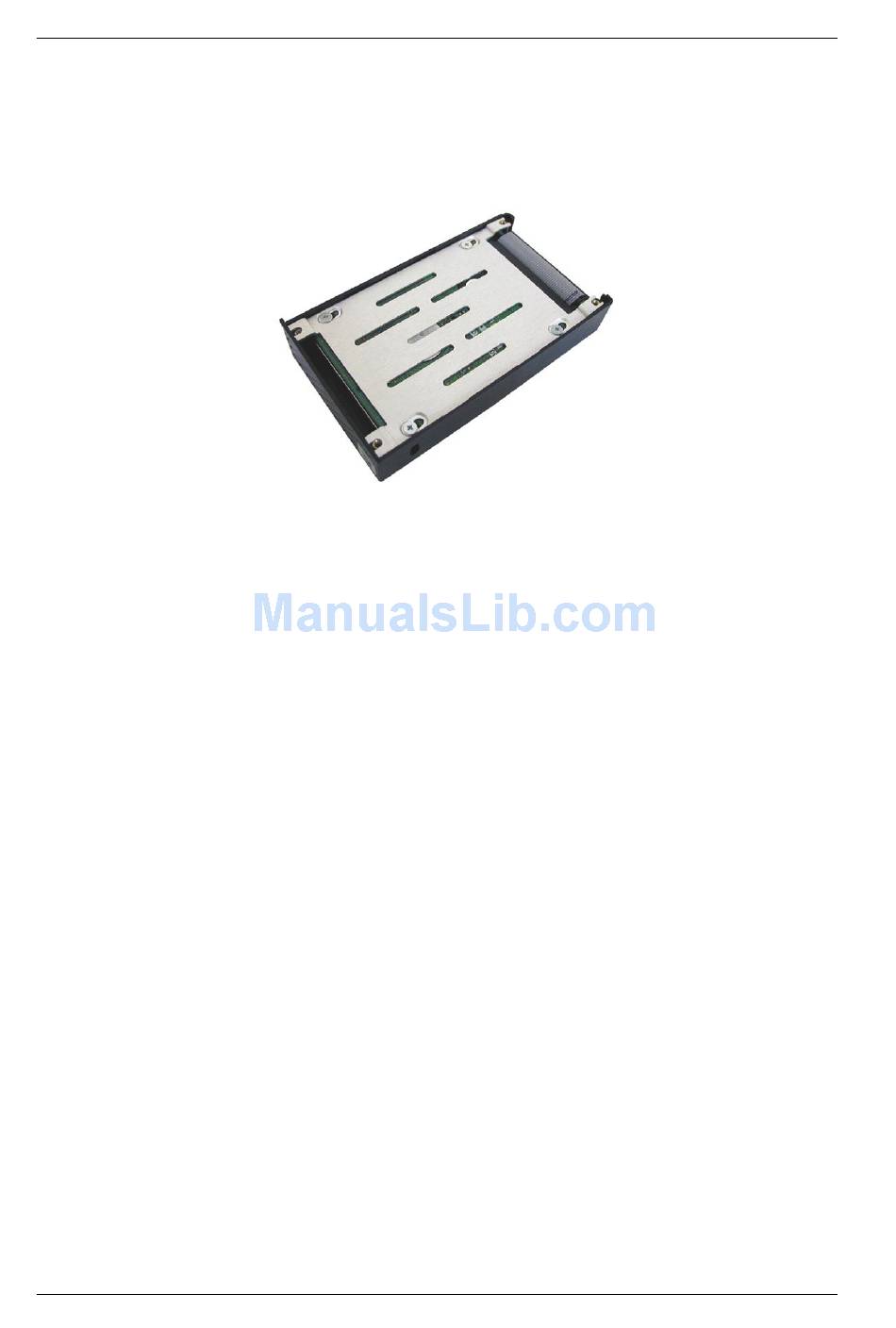

Figure 10: Drive/Bracket Assembly Installation
Make sure that the drive circuit board is properly seated in the top cover
slot before tightening screws.
DE50 for Backup User's Guide - Rev. D00
Installation
