12
Connect to Front
USB Port Cable
(If applicable)

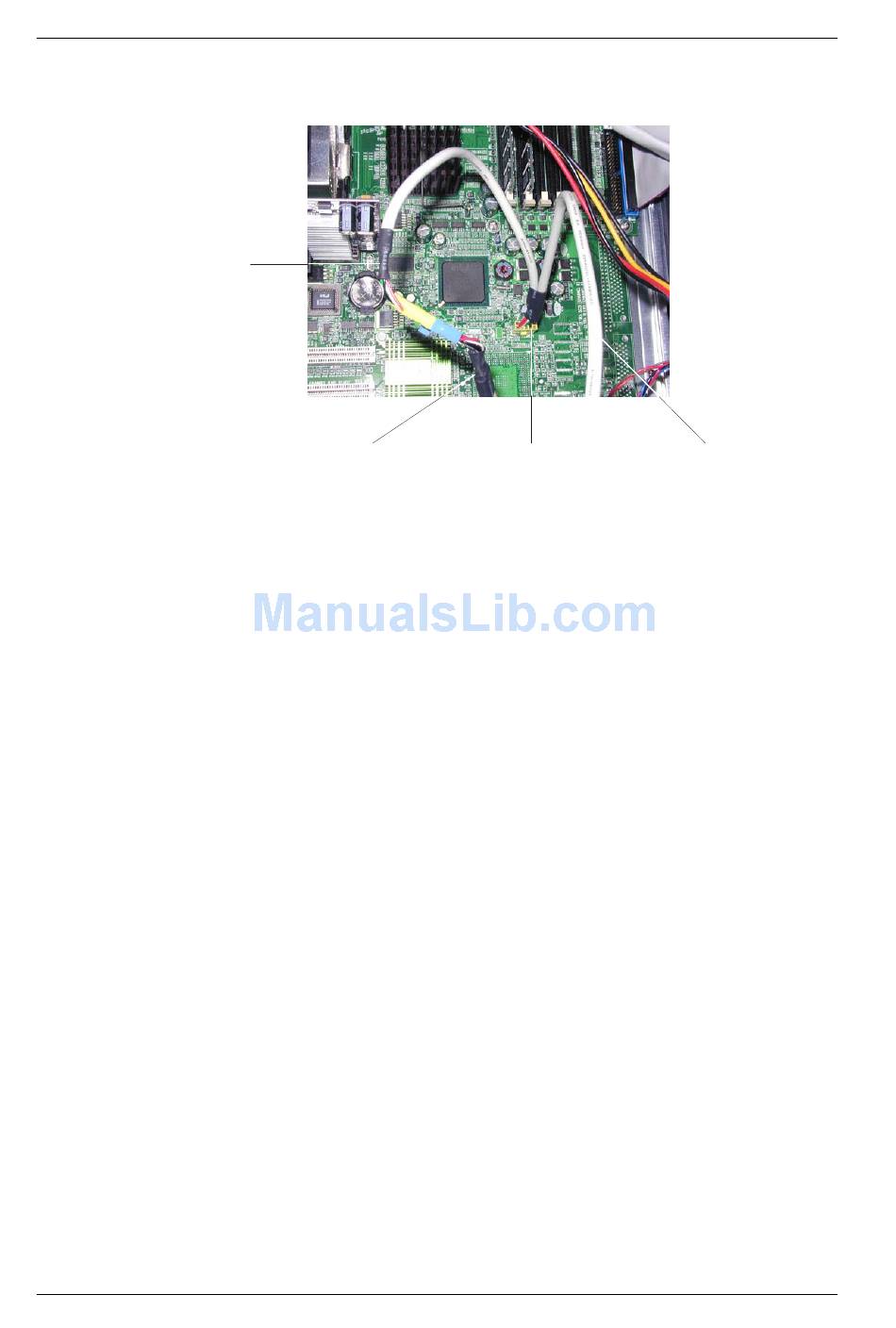

Figure 11: Connecting the Split USB Cable to the System

5. If your system motherboard has only one 9-Pin USB connector and it is connected
to the front USB ports (Figure 12), disconnect the front USB port cable from the system
motherboard USB connector (refer to your system motherboard manufacturer's
documentation for further information).
Connect the female connector on the split USB cable (provided) to the newly vaca-
ted USB connector located on the system motherboard (Figures 11 & 16).
If applicable, connect the male connector on the split USB cable to the front USB
port cable (Figures 11 & 16). Make sure the red wires on both cables are correctly
aligned.
NOTE:
6. If your system motherboard has only a spare 4-Pin USB connector, connect the female
connector on the split USB cable (provided) to it. The female connector on the split
USB cable has two rows of wires, a 5-wire row and a 4-wire row. Make sure to
connect the 5-wire row to the system motherboard's 4-Pin USB connector (refer to
your system motherboard manufacturer's documentation for further information).
NOTE:
StorCase Technology, Inc.
Typical System Motherboard (your system may vary)
Front USB
Port Cable
Connecting the DE50 to the system motherboard's only USB connector
will disable one of the front USB ports (if applicable). Only the lower
(or second) USB port will still function while the DE50 is installed (Figure
12).
When connecting the 5-wire row to the 4-pin USB connector, make sure
that the wires on the cable correspond to the appropriate pins (refer to
your system motherboard manufacturer's documentation for information
on pin assignments).
Connect to Motherboard
USB Connector
DE50 for Backup User's Guide - Rev. D00
Installation
Connect to DE50
USB Connector
