Installation
7. For 5.25" peripheral slots, the 5.25" adapter bracket must be installed. The receiving
frame is side-mounted into the adapter bracket using four (4) M3 Phillips Pan Head
screws (provided), as shown in Figure 13.
With the drive carrier locked in place inside the receiving frame, install the DE50 into
the 5.25" drive opening in the computer or expansion chassis. Use the appropriate
guides to position the Data Express, and fasten it into place with four (4) self-tapping
screws provided. Mounting holes are provided on each side and the bottom of the
adapter bracket to accomodate a variety of mounting configurations. Use the mounting
holes which best suit the computer or expansion chassis configuration (Figure 14).
DE50 for Backup User's Guide - Rev. D00

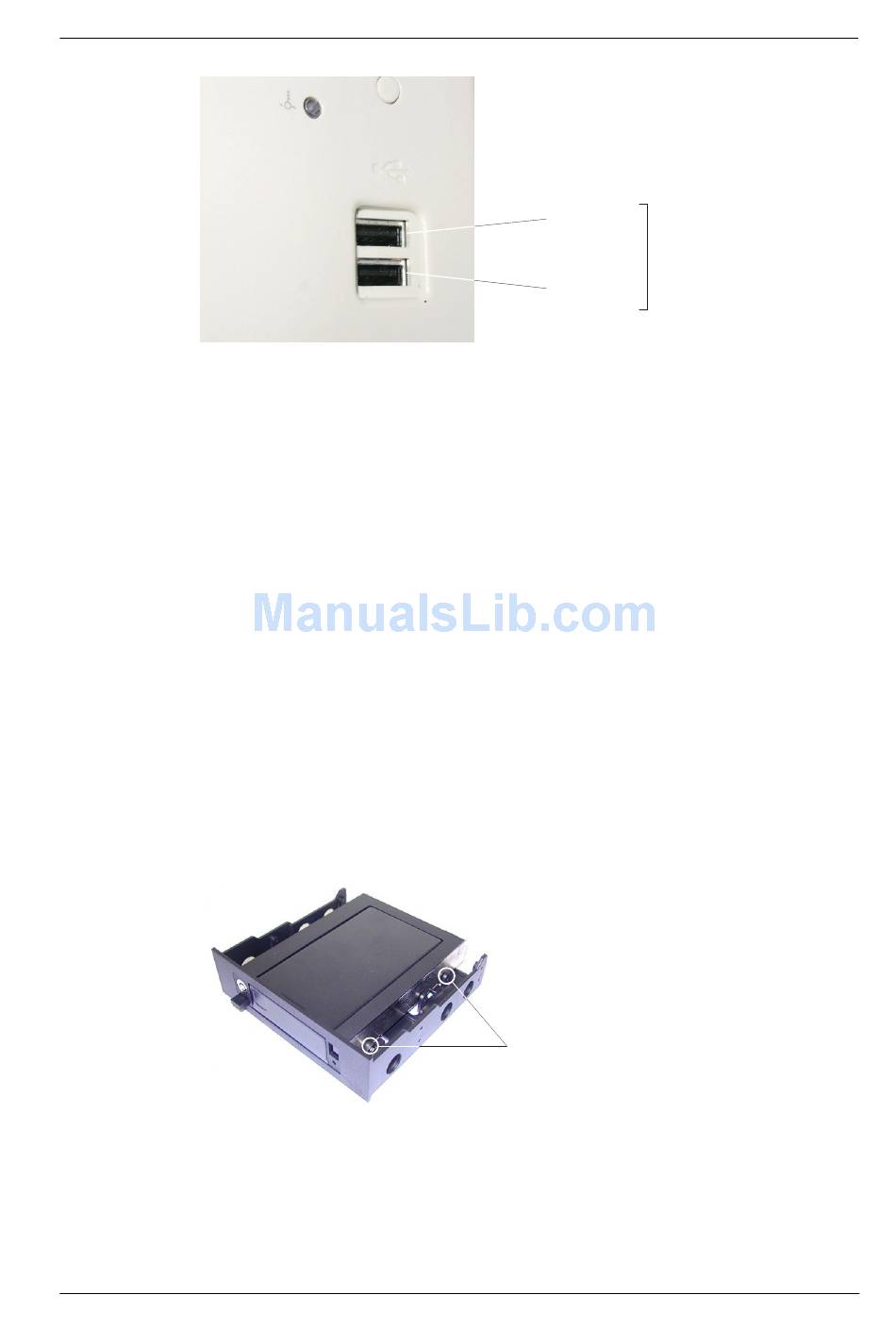

Figure 12: Typical Front USB Ports

(Your PC may vary)

Figure 13: Installing the 5.25" Adapter Bracket

Disabled
Front
USB
Ports
Functional
Secure with M3 Phillips
Pan Hd. Screws
(2 per Side)
StorCase Technology, Inc.
13
