Summary of Contents for StorCase Technology Data Express DX115

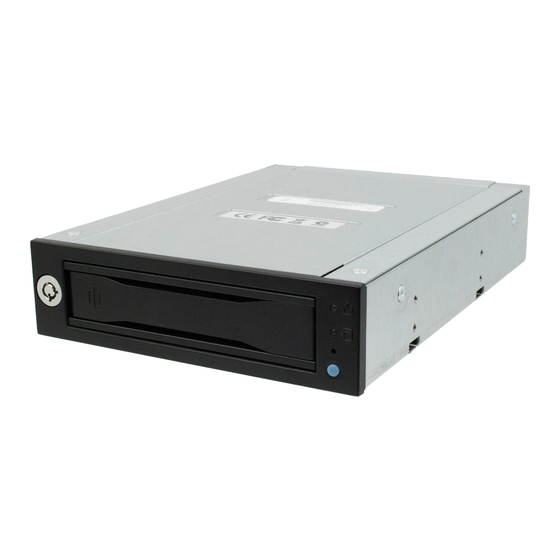

- Page 1 ® StorCase Technology ® Data Express DX115 for Backup Removable SATA 3Gbps Drive Enclosure User's Guide...
- Page 2 DX115 for Backup Removable SATA 3Gbps Drive Enclosure User's Guide Part No. D89-0000-0306 A01 June 2006 StorCase Technology, Inc. 17600 Newhope Street Fountain Valley, CA 92708-9885 Phone (714) 438-1850 Fax (714) 438-1847 DX115 for Backup User's Guide - Rev. A01...
-
Page 3: Limited Warranty
LIMITED WARRANTY STORCASE TECHNOLOGY, Incorporated (“StorCase”) warrants that its products will be free from defects in material and workmanship, subject to the conditions and limitations set forth below. StorCase will, at its option, either repair or replace any part of its product that proves defective by reason of improper workmanship or materials. - Page 4 StorCase product, even if StorCase has been advised of the possibility of such damages. Copyright © 2006 StorCase Technology. All rights reserved. All registered trademarks are the property of StorCase Technology. All other logos and trademarks are properties of their respective companies. DX115 for Backup User's Guide - Rev. A01...
-
Page 5: Declaration Of Conformity
Declaration of Conformity Company Name: StorCase Technology, Inc. Corporate Office Address: 17600 Newhope Street Fountain Valley, CA 92708 Manufacturing Address: 17600 Newhope Street Fountain Valley, CA 92708 Product Name: Data Express SATA DX115 Model Number: S22J106, S22J107, S22J108, S22J109, S22J110,... -
Page 6: Table Of Contents
Replacing the Cooling Fan ................... 14 APPENDICES ........................15 Appendix A - Specifications/Dimensions ..............16 Appendix B - Optional Accessories ................17 Carrying Case ....................17 Reader's Comments ....................... 19 DX115 for Backup User's Guide - Rev. A01 StorCase Technology, Inc. - Page 7 Please check the StorCase web site at http://www.storcase.com or contact your StorCase representative for the latest revision of this document. StorCase Technology, Inc. DX115 for Backup User's Guide - Rev. A1...
-
Page 8: Introduction
Introduction INTRODUCTION Packaging Information The StorCase Technology Data Express ® system is shipped in a container designed to provide protection and prevent damage during shipment. The Data Express unit was carefully inspected before and during the packing procedure at the factory. Bent or broken connectors, or evidence of other damage to the Data Express should be reported to the shipper immediately. -
Page 9: Package Contents
M3 Phillips Flat Hd. Screws Insert Sheets (not shown) Split USB Cable ® Retrospect ® Backup Drive Lock Keys Software CD (not shown) Self-Tapping Screws Figure 1: Package Contents StorCase Technology, Inc. DX115 for Backup User's Guide - Rev. A01... -
Page 10: General Description
SAS DX115 receiving frame supports SATA and SAS drives. ® The StorCase Technology Data Express SATA 3Gbps DX115 for Backup is a removable drive carrier and receiving frame, designed to provide durable and reliable mounting for one (1) low-profile (up to 1"... -
Page 11: Front Panel
It is the responsibility of the user to ensure that the host does not access the drive while attempting to remove the drive. Failure to do so may result in loss of data and/or damage to the drive itself! StorCase Technology, Inc. DX115 for Backup User's Guide - Rev. A01... - Page 12 • Fan Error LED Disable Switch - This switch allows the user to disable the Fan Error LED (by inserting a paper clip or similar object to activate switch). StorCase recommends replacing a faulty fan immediately. Contact StorCase for spare fan ordering information. DX115 for Backup User's Guide - Rev. A01 StorCase Technology, Inc.
-
Page 13: Receiving Frame Rear Panel
• Factory Reserved Pins - These pins are reserved for factory use only - Do not install jumper under any circumstances! • Cooling Fan - Field-replaceable fan provides ample cooling (4.6 CFM) for drive. StorCase Technology, Inc. DX115 for Backup User's Guide - Rev. A01... -
Page 14: Installation
Drive Carrier Board (Figure 5). Turn the drive/carrier assembly over. Fasten the drive into place with four (4) #6-32 Phillips Flat Hd. screws (Figure 5). Some drives may require minor adjustment before securing into carrier with screws. DX115 for Backup User's Guide - Rev. A01 StorCase Technology, Inc. -
Page 15: Figure 5: Drive Installation Assembly
Installation Bottom-mount Drive with Four (4) #6-32 Drive Carrier Phillips Flat Hd. Board Screws (Provided) Figure 5: Drive Installation Assembly StorCase Technology, Inc. DX115 for Backup User's Guide - Rev. A01... -
Page 16: Figure 6: Drive Cover Installation
Install the provided drive cover (Figure 6). Insert this end into carrier first Lower cover until flush with carrier Secure with Phillips Flat Hd. screws (1 per Side) Figure 6: Drive Cover Installation DX115 for Backup User's Guide - Rev. A01 StorCase Technology, Inc. -
Page 17: Installing The Receiving Frame
Adjust the front of the receiving frame so the carrier slides freely in and out on the receiving frame guides. The position of adjoining peripheral units may require ad- justment. Mounting Holes (Bottom) Mounting Holes (Left) Mounting Holes (Right) Figure 7: Receiving Frame Mounting Holes StorCase Technology, Inc. DX115 for Backup User's Guide - Rev. A01... -
Page 18: Drive Activity Led
The Drive Activity LED can be enabled via host connection (cable not included) to Pin 1 located on the Receiving Frame Motherboard (Figure 4). Refer to the SATA PC system/host controller manufacturer's documentation for further infor- mation. DX115 for Backup User's Guide - Rev. A01 StorCase Technology, Inc. -
Page 19: Drive Hot Swap
XP Home/XP Professional. DriveSwap32 will not run on Windows 95/98/ME/NT, or Windows 64-bit ver- sion. For easy drive hot swap, please refer to the DriveSwap32 insert sheet (provided) for further information. StorCase Technology, Inc. DX115 for Backup User's Guide - Rev. A01... -
Page 20: Data Backup And Restoration
OS 7.1 or later, and Mac OS X 10.1 or later. ® For easy data backup and restoration, please refer to the EMC User's Guide (provided) on ® ® the EMC Retrospect Backup software CD. DX115 for Backup User's Guide - Rev. A01 StorCase Technology, Inc. -
Page 21: Replacing The Cooling Fan
Once the screws are removed, disconnect the fan cable from the receiving frame. Once the cable is disconnected, remove the fan. To install the new fan, simply reverse Steps 1-3 above. Remove Screws Figure 8: Removing the Cooling Fan StorCase Technology, Inc. DX115 for Backup User's Guide - Rev. A01... -
Page 22: Appendices
Appendix A - Specifications/Dimensions APPENDICES DX115 for Backup User's Guide - Rev. A01 StorCase Technology, Inc. -
Page 23: Appendix A - Specifications/Dimensions
Electrical Specifications Chassis Reliability/Maintainability MTBF (at 30° C) 600,000 Hours Input MTTR 5 minutes +12V 20mA Preventive None Maintenance Cooling Insertion Rating (Total for 1 Fan) 50,000 4.6 CFM StorCase Technology, Inc. DX115 for Backup User's Guide - Rev. A01... -
Page 24: Figure A-1: Sata 3Gbps Dx115 Physical Dimensions
Appendix A - Specifications/Dimensions Receiving Frame with Carrier Installed Carrier Only Figure A-1: SATA 3Gbps DX115 Physical Dimensions (Dimensions are for reference only) DX115 for Backup User's Guide - Rev. A01 StorCase Technology, Inc. -
Page 25: Appendix B - Optional Accessories
10” long x 11” wide x 4.5” high, make it easy to carry and to store. The foam lining is contoured to fit a single Data Express carrier. Contact your StorCase dealer for further details and ordering information. StorCase Technology, Inc. DX115 for Backup User's Guide - Rev. A01... -
Page 26: Reader's Comments
Are there any changes you would like us to make, either with the hardware itself, or with the installation instructions? Everyone at StorCase Technology is working toward the goal of providing you with the highest quality, most cost effective, products available on the market, and we need your comments to guide our efforts. - Page 27 B U S I N E S S R E P LY M A I L FIRST CLASS MAIL PERMIT NO. 10686 SANTA ANA, CA POSTAGE WILL BE PAID BY ADDRESSEE TECHNOLOGY CORPORATION 17600 NEWHOPE STREET FOUNTAIN VALLEY CA 92708-9885 StorCase Technology, Inc. DX115 for Backup User's Guide - Rev. A01...
