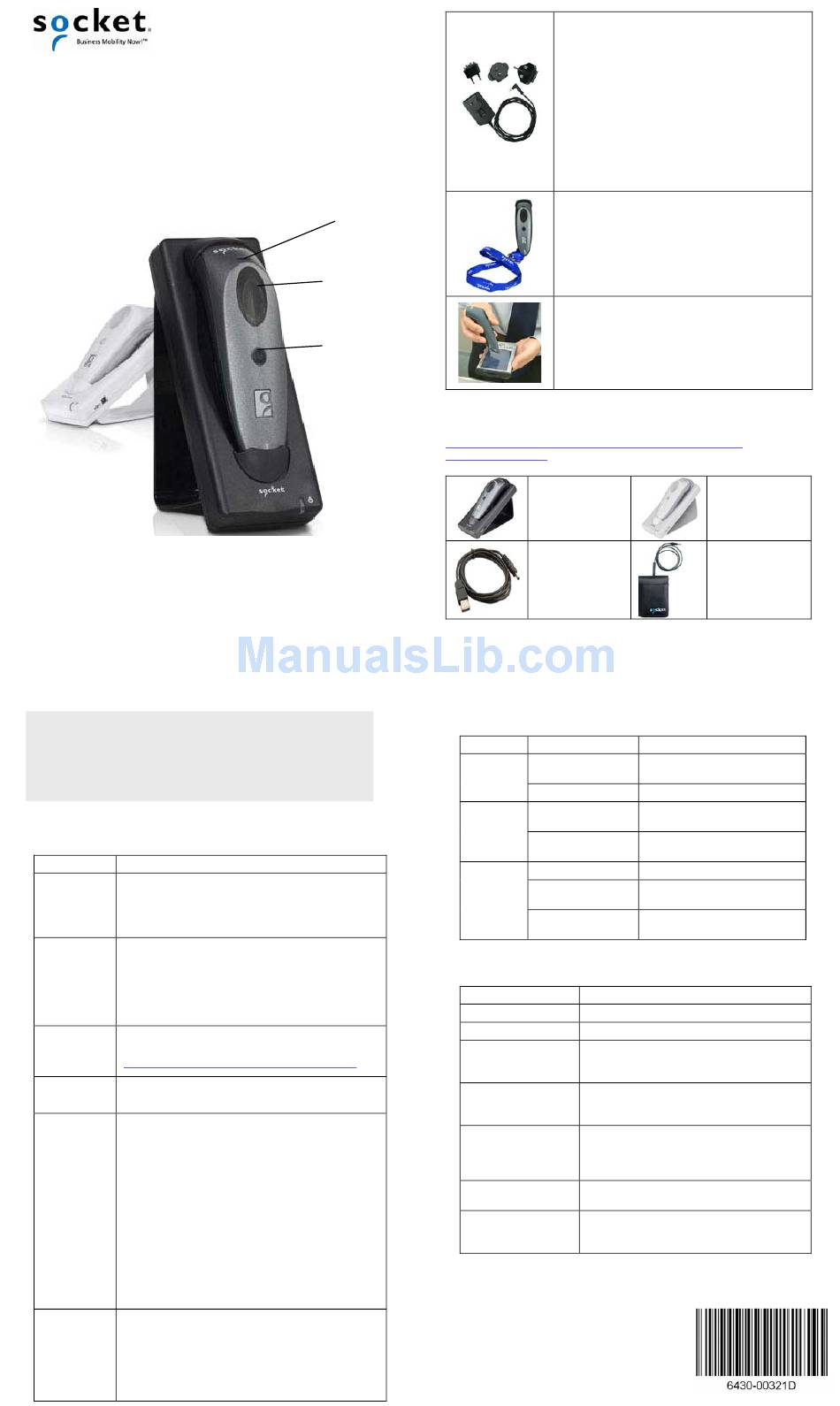

Socket 7X Quick Start Manual

Quick Start Guide

®

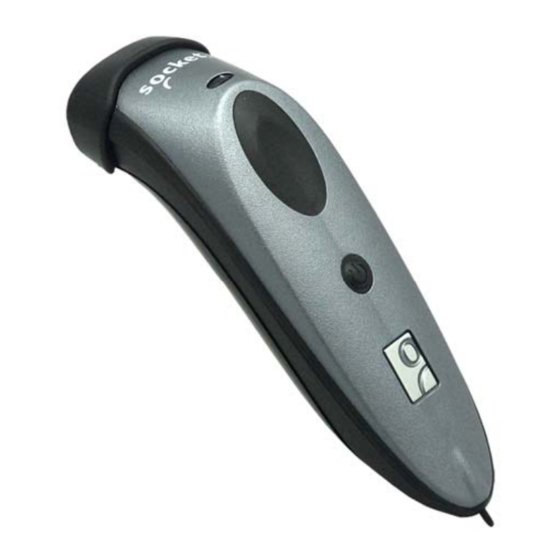

Bluetooth Cordless Hand Scanner
(CHS)
7X and 7XRx
7X SKU# CX2849-1242 (P/N 8550-00036)
7XRx SKU# CX2843-1160 (P/N 8550-00047)
© 2010 Socket Mobile, Inc. All rights reserved. Socket, the Socket logo, Socket Bluetooth Cordless Hand Scanner, and Business
Mobility Now! are registered trademarks or trademarks of Socket Mobile, Inc. The Bluetooth word mark is a registered trademark
of the Bluetooth SIG, Inc. USA, and any use by Socket Mobile, Inc. is under license. All other trademarks and trade names contained
herein may be those of their respective owners.
Package Contents
•
Socket Bluetooth Cordless Hand Scanner (CHS) 7X or 7XRx
•
Lanyard / belt clip with retractable tether
•
Rechargeable battery (pre-installed, DO NOT REMOVE)
•
Charging cable
Basic Functionality
Note: No software is required for normal operation.
Function Procedure
Power On: Press and hold down the power button
until you hear two (low-high) tones.
Powering on
/off Power Off: Press and hold down the power button
until you hear two (high-low) tones.
Press and hold the trigger button to activate the
scanner. An aiming beam will appear for 3 seconds.
Position the red aiming beam over the 2D (or 1D)
Scanning
barcode. The CHS will beep, flash a green LED, and
barcodes
vibrate to confirm the barcode data was decoded and
recorded in your application. Refer to User's Guide for
more details.
Please refer to the Command Sheet in the User's
Enabling/
Guide, available online at:
Disabling
http://www.socketmobile.com/support/downloads
Symbologies
Disconnect through your device's Bluetooth software
Disconnecting
or simply turn off the CHS.
Reverts CHS back to factory default state. You can do
this to remove a pairing or revert to the default
Bluetooth device (keyboard for Windows, "other" for
iPad).
1. Power on CHS
2. Press and hold down the Trigger button and
momentarily press the Power button while still
holding down the Trigger button.
Factory Reset
3. After 15 seconds, the scanner will beep. Release
the Trigger button.
4. The scanner will beep 5 times and power off.
5. The next time you power on the scanner, it will
take longer than normal. After the scanner
finishes powering on, it will have factory default
settings.
Releases the Bluetooth pairing from the last system
the CHS was paired to. This allows new pairing to
another system.
1. Power on CHS
Pairing Reset
2. Press and hold down the Trigger button and press
the Power button until you hear a series of 3
tones.
LED
Trigger
button
Power button
Optional Charging Accessories: Available separately.
http://www.socketmobile.com/products/bluetooth-barcode-
scanners/accessories/
LED
LED
Bluetooth
Status
(Blue)
Good
Read
(Green)
Battery
Status
(Red)
Beeps
Beep Patterns
2 beeps (low-high)
2 beeps (high-low)
1 beep
2 beeps (same tone)
2 long beeps (same
tone)
1 beep with green
LED
5 consecutive tones
6/2010
Assembling the AC Adapter:
The included AC adapter comes with four plugs.
Find the correct plug for your region and slide it
into the head of the adapter.
Charging the CHS:
The CHS must be fully charged before first use.
Total charging time from empty to full is about
3.5 hours. The LED of the CHS will be red while
charging, and green when fully charged.
WARNING! Do not remove the factory-
installed battery!
Attaching the Tether:
Use a coin or screwdriver to turn the lock under
the CHS. Remove the battery cover and wrap
the string loop of the tether around the inside
part of the lock. Replace the battery cover. If
desired, attach the tether to a lanyard/belt.
Touch Screen Stylus:
Use the stylus tip on Pocket PC and other device
touch screens. Do not use the stylus if damaged,
as it may scratch the screen. The stylus does not
work on tablets with Active Matrix displays.
Charging Cradle
AC4026-708
USB to DC Plug
Charging Cable
AC4051-1192
LED Behavior Meaning
1 blink per second Bluetooth radio is on, but not
connected
1 blink per 3 seconds Scanner connected to computer
On Data successfully scanned and
transmitted to host device
On when connected Scanner is fully charged
to charging source
1 blink per second 20% battery capacity remaining
On when connected Battery Charging (on cradle or
to charging source AC power)
Off Powered off or Good Battery
status
Meaning
Power on
Power off
Scanner connected to computer. When
connected, the scanner will auto power off
after 2 hours of inactivity.
Scanner disconnected from computer. When
disconnected, the scanner will auto power off
after 5 minutes of inactivity.
Scanner unsuccessfully tried 10 times to connect
to computer. After these attempts, the scanner
will go into sleep mode and power off after 5
minutes of inactivity.
Data successfully scanned and sent to
computer.
The scanner detects an internal fault and will
reset itself. If the scanner is connected to a host
computer, it will disconnect during the reset.
Charging Cradle,
Antimicrobial
AC4050-1152
Mobile Power
Pack (not sold in
EMEA)
AC4050-1152
Printed in USA
