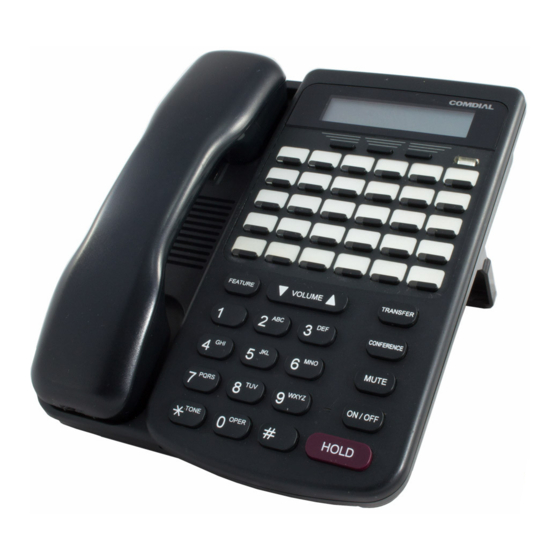

Comdial DX-80 User Manual

Analog station
Hide thumbs Also See for DX-80:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation and Maintenance Manual
DX-80™
Analog
Station
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX-80 and is the answer not in the manual?

Questions and answers

Related Manuals for Comdial DX-80

Summary of Contents for Comdial DX-80

  • Page 1 DX-80™ Analog Station User’s Guide...
  • Page 2 DX-80™ Analog Station User’s Guide Making a Call: Analog Ports (Single Line Telephones) Outgoing Call (CO Line) Dial CO Line code (other codes may be applicable) Listen for CO Line dial tone; then dial the telephone number. Intercom Call with Auto Selection Active...
  • Page 3 Paging 400, 401-408, or 777 Dial the Page access code 400, 401-408, or 777 Speed Dial Extension 470-489 System 500-699 Setup Dial #1 + speed # bin (470-489) + number to dial Press FLASH (hookswitch flash). Operation-Use Dial the Speed Dial bin (470-489 or 500-699) Setup: Analog Ports Alarm - Extension Operation - Activate...
  • Page 4 Call Forward - Extension Operation - Activate Call Forward may be activated for the following types of calls 1=CO calls only, 2=CO and Intercom calls, or 3= Intercom calls only Immediate Forward: Dial #22 + ext number+type of call to forward Forward on Busy: Dial #21 + ext number+type of call to forward Forward on No Answer: Dial #24 + ext number+type of call to forward (1,2, or 3) + T...

  • Page 5: Call Pickup

    In Progress Features: Analog Ports Call Back - CO Line/Extension When you try to access an outside line or extension and get a busy tone, dial Call Park Answer Dial #73 + extension number where call is parked Call Pickup 6, *, or 440 -447 Extension (Direct) Call Pickup: Dial ringing extension number + 6...

  • Page 6: Pulse To Dtmf Conversion

    Hold {FLASH} Place a call on hold: While on a call, press {FLASH} (hookswitch flash). Hang up. The line is placed on System (Common) hold. Retrieve a call on hold: Press {FLASH} (hookswitch flash). Intrusion - Extension/CO Line When you dial an extension that is busy, dial 8. Meet Me Page # or #59 While a page is currently in progress, dial # or #59.
  • Page 7 Notes: P7291 AEUG 11/02-2...
  • Page 8 P7291 AEUG 11/02-2 DX-80 Analog Station User’s Guide...
