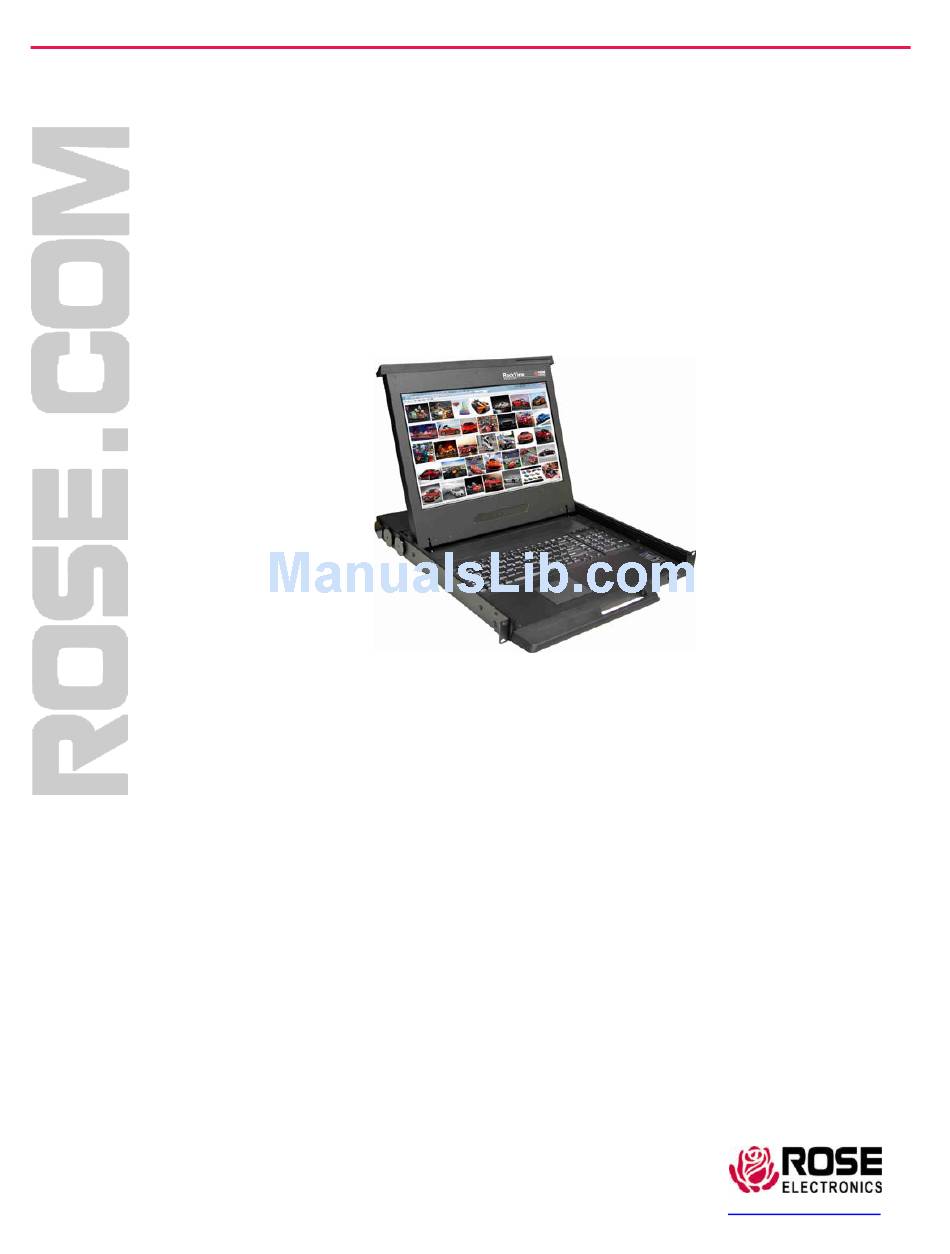

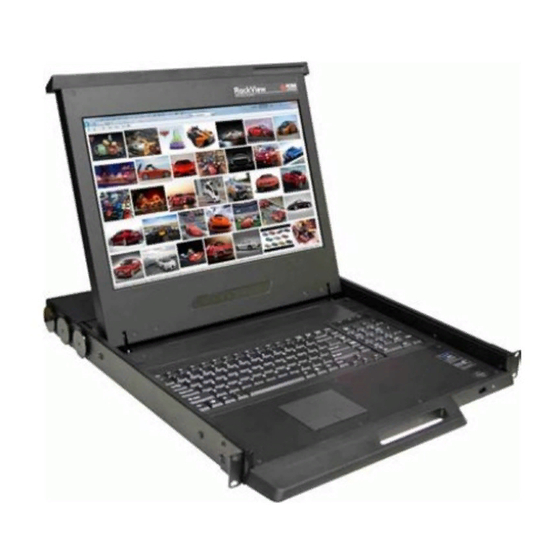

- Page 1 Rackview High Resolution – KVM Rack Drawer INSTALLATION AND OPERATIONS MANUAL Widescreen 17” LCD Ultra High Resolution 1920 x 1200 Rose Electronics 10707 Stancliff Road Houston, Texas 77099 WWW.ROSE.COM Phone (281) 9337673...
- Page 3 Rose Electronics warrants the Rackview Product to be in good working order for one year from the date of purchase from Rose Electronics. Should this product fail to be in good working order at any time during this one- year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. Repair parts and replacement units will be either reconditioned or new.
-
Page 4: Table Of Contents
OSD (On-Screen Display Control Panel) Operation Page 12 PIP and PBP Page 13-14 Video Format Page 15 Product Options Page 15 Specifications Page 16 Product Codes Page 16 Technical Support Page 17 Page 4 KVM Rack Drawer (FHD) High Resolution WWW.ROSE.COM... -
Page 5: Safety Instructions
Re-position or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Page 5 KVM Rack Drawer (FHD) High Resolution WWW.ROSE.COM... -
Page 6: Pre-Installation And Package Contents
To clean your LCD safely, please follow these steps: • Disconnect the power cord. • Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible. Page 6 KVM Rack Drawer (FHD) High Resolution WWW.ROSE.COM... -
Page 7: Rackview Layout Diagram And Dimensions
590 x 823 x 140 mm 15 kg 19 kg RV1-CAKVT17/FHD 17.4 x 18.9 x 1.73 inch 23.2 x 32.4 x 5.5 inch 33 lb 42 lb The package weight can vary with accessories included Page 7 KVM Rack Drawer (FHD) High Resolution WWW.ROSE.COM... - Page 8 Rackview Dimensions Unit: mm 1mm = 0.03937 inch Page 8 KVM Rack Drawer (FHD) High Resolution WWW.ROSE.COM...
-
Page 9: Installation
Measure the depth of the front and rear rack rails Align each rear-mounting slide to a suitable length (depth) STEP 3 Complete the Installation Fix the Rackview Console Drawer into the Rack Screws, cage nuts and cup washers are provided Page 9 KVM Rack Drawer (FHD) High Resolution WWW.ROSE.COM... - Page 10 Installation – How to Unlock and Operate the Rackview 17” High Res STEP 1 Hold the handle and slide out the Rackview drawer STEP 2 Flip up the LCD to a suitable viewing angle STEP 3 Operate the Rackview Console Drawer Page 10 KVM Rack Drawer (FHD) High Resolution WWW.ROSE.COM...
-
Page 11: Connection To A Server/Kvm Switch
Before attempting to connect anything to the Rackview LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices only after the Rackview LCD console drawer has been powered-on. Rose Electronics is not responsible for any product damage or warranty claims caused in this way. -
Page 12: Osd (On-Screen Display Control Panel) Operation
On-Screen Display Operation ( OSD ) Page 12 KVM Rack Drawer (FHD) High Resolution WWW.ROSE.COM... -
Page 13: Pip And Pbp
Rackview Single Rail 17” FHD Page 6 www.rose Picture In Picture and Picture By Picture Modes (PIP and PBP) 1. Picture-In-Picture (PIP) Page 13 KVM Rack Drawer (FHD) High Resolution WWW.ROSE.COM... - Page 14 2. Screen Size 3. Picture-By-Picture (PBP) 4. PIP / PBP Source Page 14 KVM Rack Drawer (FHD) High Resolution WWW.ROSE.COM...
-
Page 15: Video Format
Note 1: The /DC option includes additional power cord and power adapter. Note 2: The /Audio and /DC options extend the Rackview chassis depth from 480mm (18.9”) to 530mm (20.9”). Please check with Rose Electronics for pricing and availability of these options. Page 15 KVM Rack Drawer (FHD) High Resolution... -
Page 16: Specifications
HD15 to HD15 + (1) USB-A. (VGA +USB) /K3: CAB-CMBDVUAC005 DVI-D + VGA(M) to DVI-I + (1) USB-A (DVI + USB) Optional Items: (check with Rose Electronics for pricing and availability) HDMI Cable Audio Option DC Voltage Option (12/24/48VDC) Page 16 KVM Rack Drawer (FHD) High Resolution... -
Page 17: Technical Support
Rose USA (281) 933 7673 Rose Europe +49 (0) 2454 969442 Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 Rose Electronics 10707 Stancliff Road Houston, Texas 77099 © Copyright 2013 Rose Electronics. All rights reserved. Specifications subject to change without notice Page 17 KVM Rack Drawer (FHD) High Resolution...
