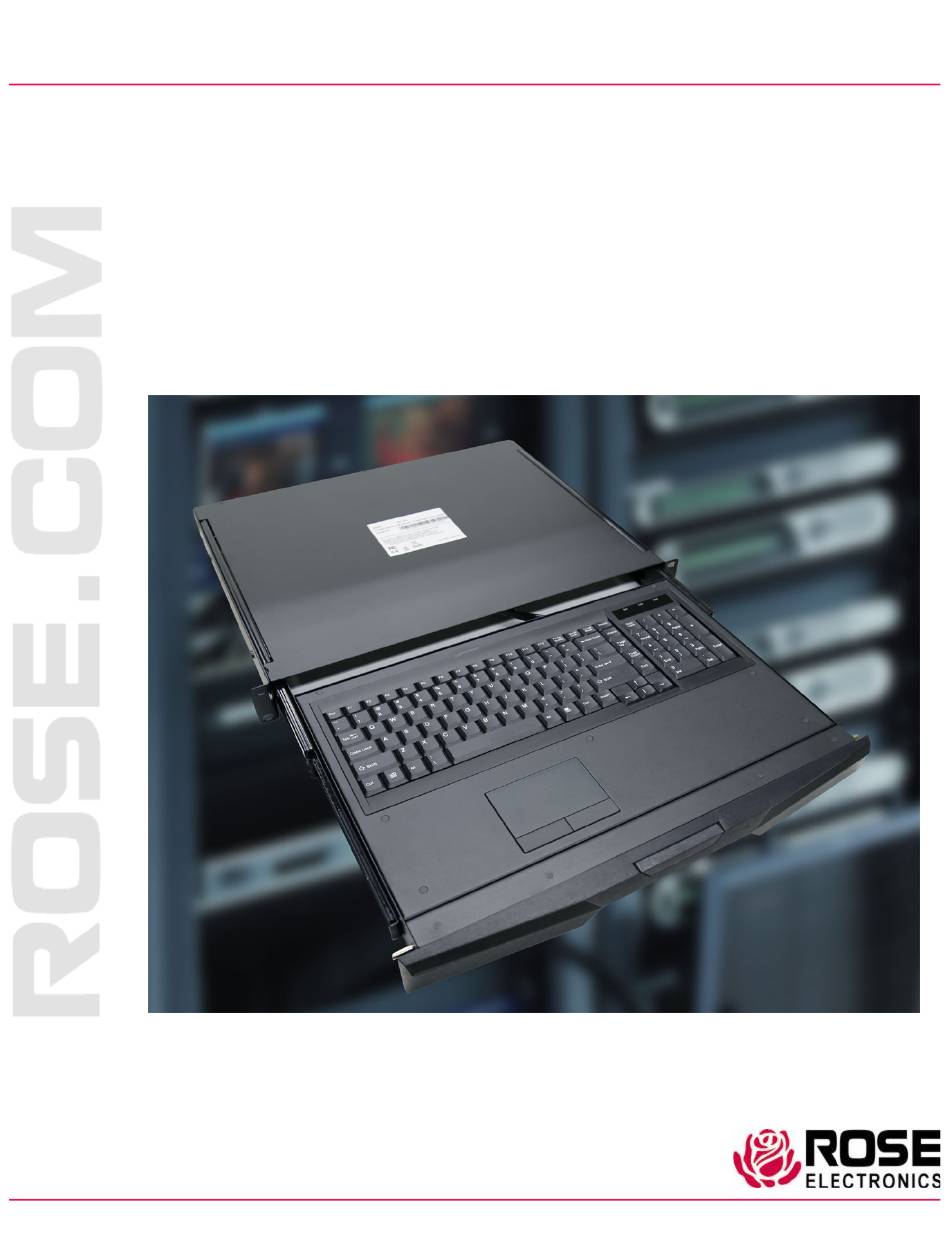

- Page 1 RackView Keyboard Drawer Sliding Keyboard/Mouse Drawer Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
- Page 2 RackView Keyboard Drawer to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU, as well as these standards: ■...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer System Introduction Features Package Contents RackView Options RackView Models RackView Layout Installation Procedure Installation of the RackView Keyboard Drawer Cabling RackView to an External Device Connection to a PC/Server Connection to an External KVM Switch RackView Keyboard Cable Troubleshooting Safety... -
Page 5: Disclaimer
(See limited warranty). System Introduction Thank you for choosing the Rose Electronics RackView Keyboard Drawer. This product is the result of Rose Electronics’ commitment to providing state-of-the-art solutions for today’s demanding workplace. The RackView Keyboard Drawer is the ideal product for managing one or more PC’s/Servers in a confined rack... -
Page 6: Package Contents
1 x set of “L-Bracket” and fastener screws 1 x 6ft (2.0m) Keyboard/Mouse interface cable 1 x Manual If the package contents are not correct, contact Rose Electronics or your reseller so the problem can be quickly resolved. RackView Options Trackball mouse ... -
Page 7: Rackview Models

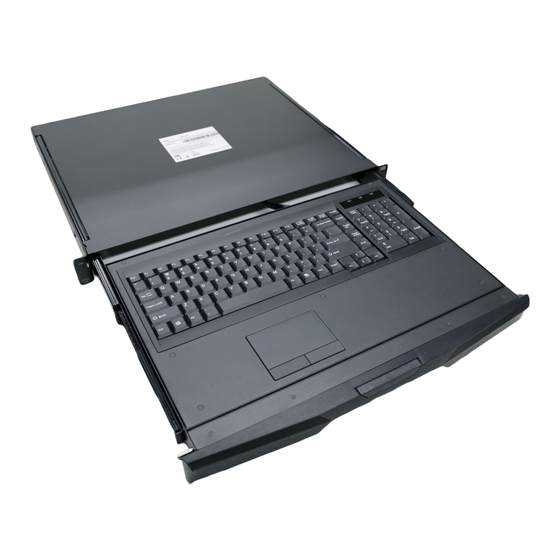

MODELS RackView Models The RackView Keyboard Drawer is available as described below. RackView Layout RackView Keyboard Drawer Standard Size Keyboard Drawer Short Size Keyboard Drawer Figure 1. RackView product layout - key features RackView Keyboard Drawer Manual... -
Page 8: Installation Procedure
INSTALLATION Installation Procedure Installation of the RackView Keyboard Drawer Step 1 Install left & right rear L-brackets with two fasteners shown in the diagram. Leave the fasteners slightly loose. Step 2 Measure the depth of the front and rear mounting rails. -
Page 9: Cabling Rackview To An External Device
RackView Keyboard Drawer, we suggest turning off the power to all devices. Apply power to connected devices only after the RackView has been powered-on. Rose Electronics is not responsible for any product damage or warranty claims caused in this way. -
Page 10: Rackview Keyboard Cable
The standard RackView Keyboard cable has an HD15 connector at one end and a PS2 + USB combo connection at the other end. The cable is 6ft (2.0m) in length. Longer cables are available on request from Rose Electronics. Troubleshooting If the RackView Keyboard Drawer fails to enumerate correctly with the attached product (PC, Switch, Extender) then re-connect the cable. -
Page 11: Safety
PRODUCT SAFETY Safety The RackView Keyboard Drawer, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. Except where explained in this manual, do not attempt to service this Unit yourself. -
Page 12: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 13: Appendices
APPENDICES Appendix A — Specifications Chassis Details Standard model: 17.4 x 21.7x 1.73 inch (441.6 x 550 x 44 mm) Drawer Dimensions Short model: 17.4 x 15.7x 1.73 inch (441.6 x 400 x 44 mm) Standard model: 22.9lb (10.4Kg) Weight Short model: 18.9lb (8.6Kg) Standard model: 22.0 –... -
Page 14: Figure 4. Rackview Keyboard Drawer Chassis Dimensions
Appendix C — RackView Dimensions RackView Dimensions: Package Size and Weight Product Dimension Packing Dimension Gross Model (W × D × H) approx (W × D × H) approx Weight Weight 441.6 x 550 x 44 mm 574 x 743 x 95 mm 22.9lb 28.8lb Standard Depth... -
Page 15: Figure 5 Rackview Integrated Kvm Switch Models
Appendix D — RackView with Optional Integrated KVM Switch RackView Option with Integrated KVM Switch The standard depth RackView Keyboard Drawer can be supplied with an integrated KVM switch mounted at the rear of the RackView unit, in a compact 1U package The available switch options are;... -
Page 16: Figure 7. Rackview Mac Keyboard - Special Function Keys
Appendix F — RackView Special Keyboard Options MAC and SUN Keyboard layouts are available in US language format only, Please refer to the following for a description of the special function keys provided for MAC Keyboard and SUN Keyboard compatibility. MAC Keyboard –... -
Page 17: Figure 8. Rackview Sun Keyboard - Special Function Keys
SUN Keyboard – special function keys Num LED in Off mode Num LED in Green mode Key pad behaves as a SUN Solar Key pad behaves as a normal key system administration command mode pad mode Figure 8. RackView SUN Keyboard – special function keys RackView Keyboard Drawer Manual... - Page 18 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
