Rose electronics RackView RV1-LCD15 Specifications

Rose electronics RackView RV1-LCD15 Specifications

Rack mounted tft/lcd monitor

Advertisement

Quick Links

RackView

Features and Benefits

Four sizes to choose from:
15" LCD
17" LCD
19" LCD
20" LCD panel mount
19" model features HD15 and DVI-D inputs or
HD15 and S-Video / Composite inputs
PiP features using two different video inputs
optional on the 20" model
Front panel controls
On-screen display for adjusting all settings
Provides a sharp, clear display
Easy to install
Optional KVM or Video switch can be added
Made in USA
LCD

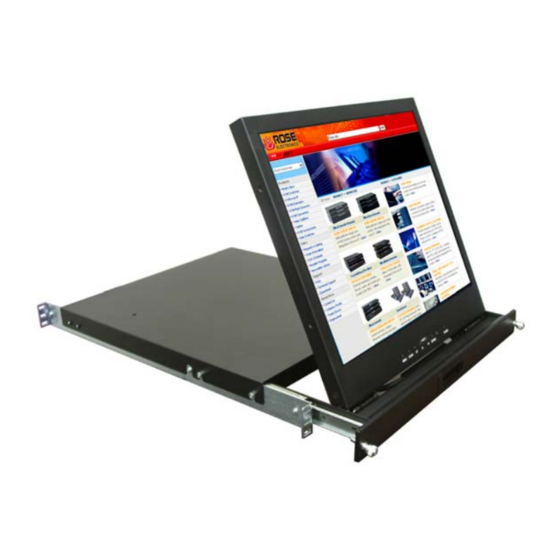

Rack mounted TFT/LCD Monitor
1U - High resolution TFT/LCD monitor
HD15, DVI, and S-Video/composite
connectors (Depending on model)
Needs only 1U of rack space
Available in 15", 17", and 19"
(Also a 20" panel mount model)
The RackView™ Advantage . . .
The RackView Monitor models are an innovative space
saving design that fits in 1U of rack space.
It can be placed at any height within a standard 19" rack.
This offers the operator the maximum viewing comfort
and takes up a minimum amount of rack space. The front
panel conceals the unit when it is not in use.
The optional KVM switch offers single or multiple user
access to as many as 1,000 servers or computers. A
separate keyboard and mouse are needed to fully utilize
the KVM switch option. Rose Electronics KVM switch
options are fully expandable and when combined with the
RackView, your system becomes a versatile, distributed
matrix controlled system with multi-user capability,
controlled access to the servers, and many other features.
PC's, UNIX, Sun, Apple, and USB computers can easily be
connected and monitored locally using the RackView
monitors.
1U Rackmount monitor
W W W . R O S E . C O M

Advertisement

loading
Need help?

Need help?

Do you have a question about the RackView RV1-LCD15 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rose electronics RackView RV1-LCD15

  • Page 1: Features And Benefits

    1,000 servers or computers. A separate keyboard and mouse are needed to fully utilize the KVM switch option. Rose Electronics KVM switch options are fully expandable and when combined with the RackView, your system becomes a versatile, distributed matrix controlled system with multi-user capability, controlled access to the servers, and many other features.
  • Page 2 KVM switch should be mounted in the rack. Phone: 281-933-7673 10707 Stancliff Rd. Houston, TX 77099 Rose Electronics – Europe: +49 (0)2454 969442 Rose Electronics – Asia: +65 6324 2322  Copyright 2004 Rose Electronics. All rights reserved DS-RVMON 1.9...
