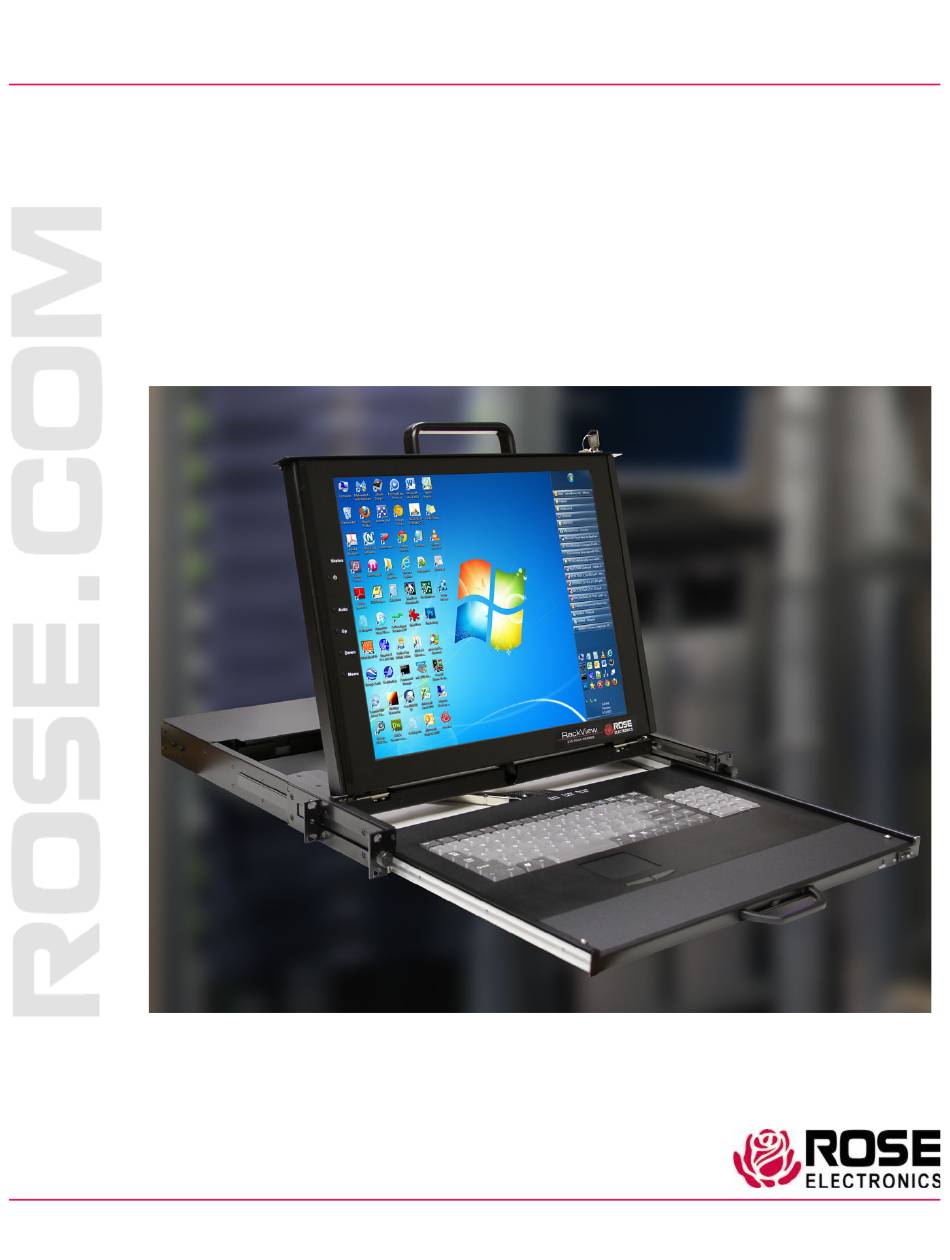

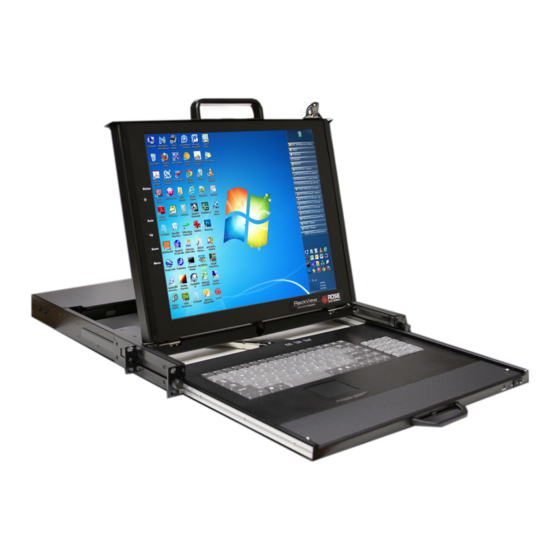

- Page 1 RackView Dual-Rail Sliding KVM Rack Drawer Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 techsupport@rose.com Houston, Texas 77099...
- Page 2 RackView Dual Rail KVM Drawer to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU, as well as these standards: ■...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer System Introduction Features Package Contents RackView Options RackView Dual Rail Models RackView Layout RackView Rear Panel Connector Layout Installation Procedure Installation of the RackView Dual Rail Front Panel Controls and OSD Function Navigating the OSD Menu Auto Tune Input Source Brightness... -
Page 5: Table Of Contents
TABLE OF CONTENTS Appendix B — Part Numbers Appendix C — RackView Dimensions Appendix D — RackView with Integrated KVM Switch Appendix E — RackView DC Power Options... -
Page 6: Disclaimer
(See limited warranty). System Introduction Thank you for choosing the Rose Electronics Dual Rail KVM Drawer, a unique 1U dual rail system for the independent operation of a keyboard, mouse and monitor. -
Page 7: Package Contents
Package Contents The RackView package contents consist of the following: 1 x RackView sliding dual rail KVM drawer 2 x Mounting bracket sets (sliding rails) and support brackets (2) 1 x Set of plates, screws, rings, and washers for assembly 2 x Locking keys ... -
Page 8: Rackview Dual Rail Models
MODELS RackView Dual Rail Models The RackView Dual Rail is available as described below. RackView Layout RackView Layout and Dimensions Dual Rail 17" Model Dual Rail 19" Model Measurements in mm Figure 1. RackView product layout and dimensions RackView Dual Rail Manual... -
Page 9: Rackview Rear Panel Connector Layout
RackView Rear Panel Connector Layout The RackView rear panel includes an HD15(KVM) and DVI-D connector as standard. The HD15(KVM) connector supports VGA video, and also the keyboard/mouse interface. This diagram shows the approximate positioning of the DVI-D and KVM connectors on the rear panel. 1 = PS2 keyboard connector 2 = VGA connector 3 = PS2 mouse connector... -
Page 10: Installation Procedure
INSTALLATION Installation Procedure Installation of the RackView Dual Rail Step 1 (short rails) 17" unit: For a rack depth 420 ~ 470 mm 19" unit: For a rack depth 480 ~ 530 mm Release the thumb screw on the front of the bracket (both sides) Install the front bracket from each side using cabinet screws... -
Page 11: Figure 3. Rackview Installation Procedure
Step 3 Combine (I) and (II) to the RackView chassis using cap screws on each side Step 4 Release the thumb screw on the front bracket and Install the front bracket from each side using cabinet screws Step 5 Combine (I)+(II) and (III) using the original screws and install the rear bracket from each side using cabinet screws Use the support bracket to replace (III) when the rack... -
Page 12: Front Panel Controls And Osd Function
OPERATION Front Panel Controls and OSD Function The OSD control panel is mounted either horizontally or vertically, next to the LCD display. To access the OSD, press the “Menu” button and the OSD will appear on the monitor Figure 4. OSD control panel buttons and OSD display Navigating the OSD Menu There are eight different selectable menu items in the OSD. -
Page 13: Auto Tune
Auto Tune Press the “auto tune” button. The panel will adjust the display size automatically and also tune the panel to its optimum video resolution. Input Source Press the “menu” button to enter and you will see: VGA / DVI Use the “Down”... -
Page 14: Position
Position Press the “menu” button to enter and you will see the image below Use the “Down” and “Up” button to scroll. Press the “menu” button to enter. Language Press the “menu” button to enter and you will see: English German ... -
Page 15: Testing The Rackview Dual Rail
Testing the RackView Dual Rail To test that the RackView is working properly, perform the following steps: 1. Power up the console, and then turn on your computer. 2. Make sure the video image is centered within the screen area Use the OSD controls to adjust the image or press the Auto button on the left or underneath of the panel. -
Page 16: Safety
PRODUCT SAFETY Safety The RackView Dual Rail Drawer, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. -
Page 17: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 18: Appendices
APPENDICES Appendix A — Specifications Chassis Details RackView 17" Model RackView 19" Model Display Monitor 17" active matrix TFT LCD 19" active matrix TFT LCD 17.6 x 19.0 x 1.7 inch 20.0 x 19.0 x 1.7 inch Drawer Dimensions 447 x 482 x 43 mm 508.8 x 482 x 43 mm Weight 26.5 lb (12.0Kg) -
Page 19: Appendix B — Part Numbers
Appendix B — Part Numbers Part Number Description 1U, 17" RackView Dual Rail, Resolution to 1280*1024 (includes one of RV1-CDKVT17/DVI each, VGA/PS2, USB-AB and DVI cables (all 5ft, 1.8m) 1U, 19" RackView Dual Rail, Resolution to 1280*1024 (includes one of RV1-CDKVT19/DVI each, VGA/PS2, USB-AB and DVI cables (all 5ft, 1.8m) RackView Interface Cable: (optional DVI and USB interface cables) -
Page 20: Table 1. Rackview Product And Packaging Dimensions
Appendix C — RackView Dimensions RackView Dimensions: Package Size and Weight Product Dimension Packing Dimension Gross Model (W × D × H) approx (W × D × H) approx Weight Weight 17.6 x 19.0 x 1.7 inch 23.8 x 22.0 x 8.0 inch 26.5lbs 37.5lbs RackView Dual Rail 17"... -
Page 21: Figure 5 Rackview Integrated Kvm Switch Model
Appendix D — RackView with Integrated KVM Switch RackView Option with Integrated KVM Switch The RackView Dual Rail series can be configured with an integrated 8-port DVI USB KVM switch with audio switching function. Using the KVM switch option, up to eight 8 DVI/USB-enabled multimedia computers with DVI video interfaces, USB2.0 devices and a set of speakers can be connected directly to the RackView Dual Rail drawer. - Page 22 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
