RackView Sideways
Sliding KVM Drawer - 21" (1920 x 1080) and 24" (1920 x 1200)
Installation
and
Operation Manual
10707 Stancliff Road
Phone: (281) 933-7673
Houston, Texas 77099
techsupport@rose.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RackView RV1-CAKVT21L/DVI/Kn and is the answer not in the manual?

Questions and answers

Summary of Contents for Rose electronics RackView RV1-CAKVT21L/DVI/Kn

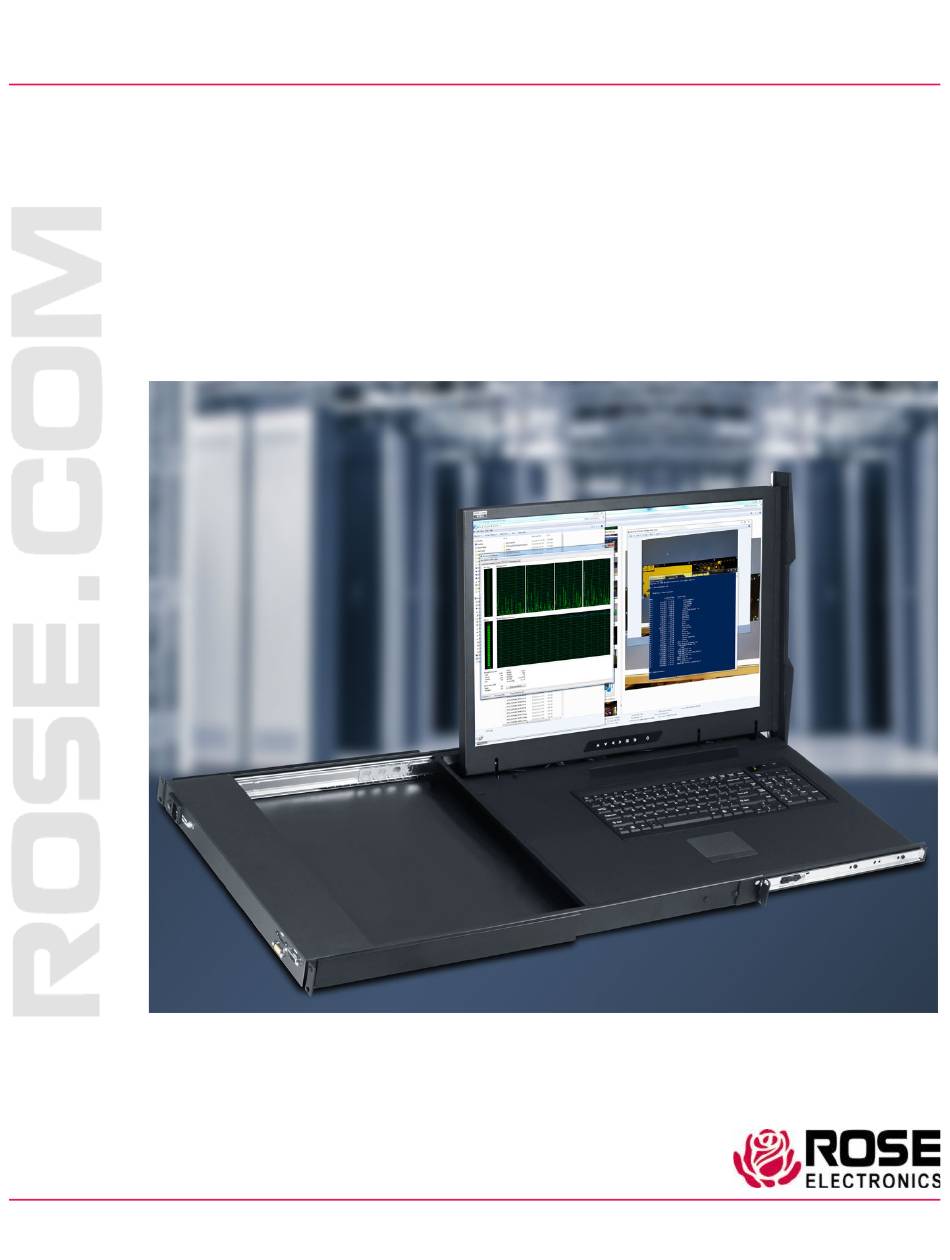

  • Page 1 RackView Sideways Sliding KVM Drawer - 21” (1920 x 1080) and 24” (1920 x 1200) Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
  • Page 2 RackView Sideways KVM Drawer to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
  • Page 3 DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU, as well as these standards: ■...
  • Page 4: Table Of Contents

    TABLE OF CONTENTS Contents Disclaimer System Introduction Features Package Contents RackView Options RackView Model Front View - All Models RackView Product Layout RackView Rear Panel Connector Layout RackView Left-Side and Right-Side Models Installation Procedure Installation of the RackView Sideways Operation of the RackView Sideways Cabling RackView to an External Device Connection to a USB Server/CPU Connection to an External KVM Switch...
  • Page 5 TABLE OF CONTENTS Figure 15 RackView integrated KVM switch models Figure 16. RackView with HDMI video option Figure 17. HDMI cable connection Figure 18. RackView with the 3G/HD/SD-SDI video option Figure 19. RackView with a DC power connector fitted Tables Table 1.
  • Page 6: Disclaimer

    (See limited warranty). System Introduction Thank you for choosing the Rose Electronics RackView Sideways Console Drawer. This product is available in two models; the 21" HD (1920 x 1080) and the 24" ultra-high resolution (1920 x 1200). The RackView is the ideal product for managing one or more PC’s/Servers in a confined rack space.
  • Page 7: Package Contents

    Package Contents The RackView package contents consist of the following: 1 x RackView Sideways sliding KVM drawer   1 x Mounting bracket (sliding rails) set  1 x Set of screws/washers for assembly 1 x Combo interface cable (depending on the model selected) ...
  • Page 8: Rackview Model

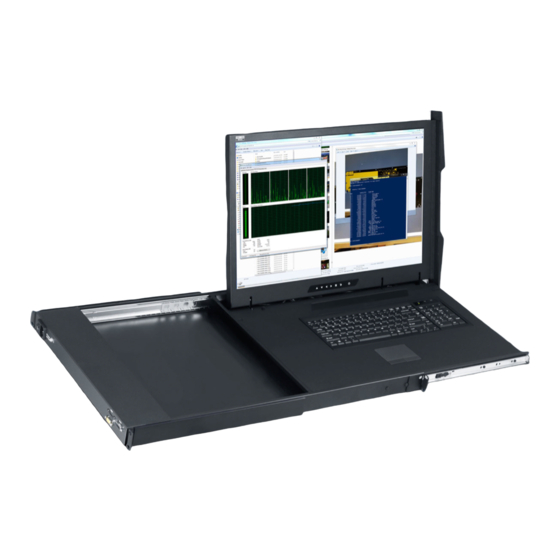

    MODELS RackView Model The RackView is available as described below. Front View - All Models RackView Sideways 21-inch color LCD RackView Sideways 24-inch color LCD Figure 1. RackView Sideways Models RackView Product Layout RackView Sideways Product Layout Figure 2. RackView product layout - key features RackView Sideways (21"...
  • Page 9: Rackview Rear Panel Connector Layout

    RackView Rear Panel Connector Layout The RackView rear panel includes an HD15(KB/MS) and DVI-D connector as standard. The HD15(KB/MS) connector supports VGA video, and also the keyboard/mouse interface. This diagram shows the approximate positioning of the DVI-D and KB/MS connectors on the rear panel. Figure 3.
  • Page 10: Installation Procedure

    INSTALLATION Installation Procedure Installation of the RackView Sideways Step 1 Insert the Left and Right rear-mounting slides into the RackView Console Drawer Step 2 Measure the depth of the front and rear rack rails Align each rear-mounting slide to a suitable length (depth) Step 3 Complete the Installation...
  • Page 11: Operation Of The Rackview Sideways

    Operation of the RackView Sideways Step 1 Hold the handle and slide out the RackView drawer Step 2 Flip up the LCD to a suitable viewing angle Step 3 Operate the RackView Console Drawer Figure 6. RackView console drawer operation RackView Sideways (21"...
  • Page 12: Cabling Rackview To An External Device

    RackView, we suggest turning off the power to all devices. Apply power to connected devices only after the RackView has been powered-on. Rose Electronics is not responsible for any product damage or warranty claims caused in this way.
  • Page 13: Rackview Cables

    RackView Cables There are 3 different combo connection cables available for RackView. The user should select one of these cables at time of order placement. These cables are used to connect the RackView to either a PC or an external KVM switch Add either /K1, /K2 or /K3 onto the RackView part number K3: DVI + USB K1: VGA + USB...
  • Page 14: Rackview Operation

    OPERATION RackView Operation Power-On Procedure Power on the RackView (see power switch on back panel)   Power on the KVM Switch or other connected product Power on the CPU  Video Input Select Button The RackView remembers the last valid video input selection, so if the CPU input has changed, the user ...
  • Page 15: Osd Operation

    OSD Operation OSD Configuration and Settings Picture Picture mode: Standard / Vivid / Soft / User mode to choose Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Hue: Adjust the screen hue value Saturation: Adjust the saturation of the image color Picture size: Adjust the image size...
  • Page 16: Picture In Picture And Picture By Picture Modes (Pip And Pbp)

    Picture in Picture and Picture by Picture Modes (PIP and PBP) Note: Available on the RackView Sideways 24" model only. PIP (Picture-In-Picture) and PBP (Picture-By-Picture) settings are available when two different video sources are selected in the MISC option in the OSD. PIP and PBP Settings PIP Mode Display the Sub screen in the Main screen.
  • Page 17: Troubleshooting

    PIP and PBP Operation PBP Size Adjust the size of the Sub-screen (Large/Small) OSD Menu --- MISC --- PBP Mode --- Large/Small PIP / PBP Source To select an input signal for PIP / PBP Sub screen. OSD Menu → MISC Figure 12.
  • Page 18: Safety

    PRODUCT SAFETY Safety The RackView KVM Drawer, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions.  Follow all instructions and warnings marked on this Unit. Except where explained in this manual, do not attempt to service this Unit yourself.
  • Page 19: Maintenance And Repair

    This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container.
  • Page 20: Appendices

    APPENDICES Appendix A — Specifications Chassis Details RackView Sideways 21-inch RackView Sideways 24-inch Display Monitor and Size 21.5" HD, 1U height 24.1" Ultra-HD, 1U height 17.4 x 26.4 x 1.73 inch 17.4 x 27.6 x 1.73 inch Drawer Dimensions (441.6 x 670 x 44 mm) (441.6 x 700 x 44 mm) Weight 32.3 lb (14.7Kg)
  • Page 21: Appendix B - Part Numbers

    Appendix B — Part Numbers Part Number Description RV1-CAKVT21L/DVI/Kn RackView Sideways 21" HD LCD Drawer, 1920 x 1080, left side opening RV1-CAKVT21R/DVI/Kn RackView Sideways 21" HD LCD Drawer, 1920 x 1080, right side opening RV1-CAKVT24L/DVI/Kn RackView Sideways 24" HD LCD Drawer, 1920 x 1200, left side opening RV1-CAKVT24R/DVI/Kn RackView Sideways 24"...
  • Page 22: Figure 13. Rackview Chassis Dimensions (21" Model)

    Appendix C — RackView Dimensions RackView Dimensions: Package Size and Weight Model Product Dimension Packing Dimension Gross (n = [L] or [R] opening) (W × D × H) approx (W × D × H) approx Weight Weight 441.6 x 670 x 44 mm 595 x 910 x 140 mm 32.3lb 41.6lb...
  • Page 23: Figure 14. Rackview Chassis Dimensions (24" Model)

    RackView Chassis Dimensions (24 Model) " Top View Measurements in mm Front View Side View Figure 14. RackView chassis dimensions (24" model) RackView Sideways (21" and 24") Manual...
  • Page 24: Table 3. Video Resolution Related To Lcd Specification

    Appendix D — RackView with Integrated KVM Switch RackView Option with Integrated KVM Switch The RackView KVM Drawer can be supplied with an integrated KVM switch mounted at the rear of the RackView unit, in a compact 1U package The available switch options are; ...
  • Page 25: Appendix E - Rackview Video Options

    Appendix E — RackView Video Options RackView Video Option with HDMI Video Interface The RackView KVM Drawer can be ordered with optional HDMI interface in place of the DVI video interface. The diagram below shows the approximate positioning of these video connectors on the back panel. This option includes a factory fitted audio speaker on the keyboard tray.
  • Page 26: Table 4. Dvi-D And Vga Video Formats

    Video Formats (DVI-D and VGA) DVI-D / VGA Input PC Signal Resolution/Refresh Rate RackView 24" model RackView 24" model 1920 x 1200 x 60Hz RackView 21" model RackView 21" model 1920 x 1080 x 60Hz RackView Sideways all models RackView Sideways all models 1360 x 768 x 60Hz RackView Sideways all models RackView Sideways all models...
  • Page 27: Table 6. Rackview Dc Power Options

    Appendix F — RackView DC Power Options RackView DC Power The RackView KVM Drawer can be ordered with optional DC power input as specified in the table below. Select the DC voltage required, then add the voltage to the RackView part number as /nnnDC For example, adding 48VDC to a RackView 21”...
  • Page 28 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
