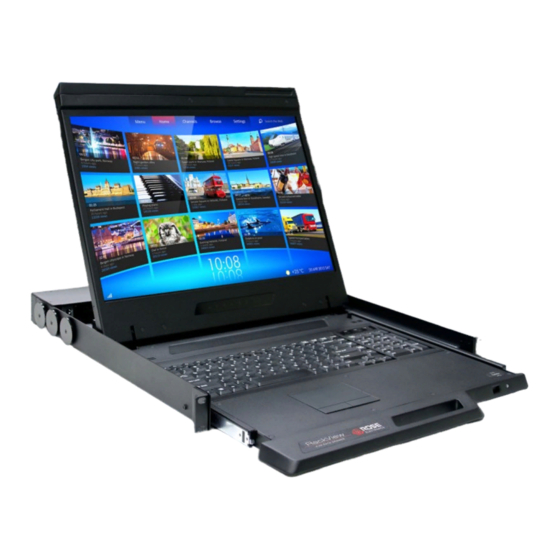

RackView Widescreen 19"
Sliding KVM Drawer - 1440 x 900
Installation
and
Operation Manual
10707 Stancliff Road
Phone: (281) 933-7673
Houston, Texas 77099
techsupport@rose.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RackView Widescreen 19 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rose electronics RackView Widescreen 19

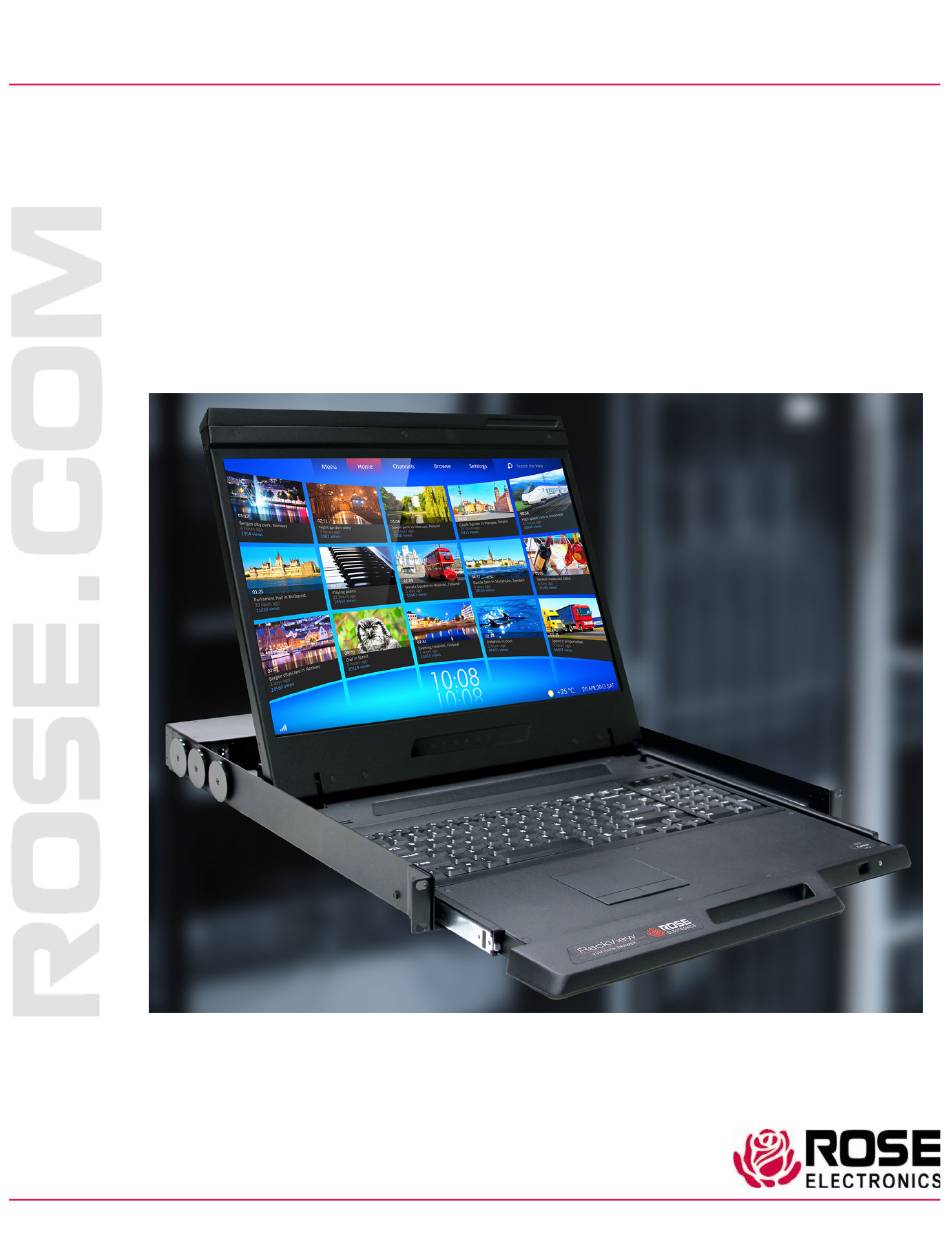

  • Page 1 RackView Widescreen 19" Sliding KVM Drawer - 1440 x 900 Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
  • Page 2 RackView Widescreen 19” KVM Drawer to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
  • Page 3 DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU, as well as these standards: ■...
  • Page 4: Table Of Contents

    RackView Model RackView Layout RackView Rear Panel Connector Layout Installation Procedure Installation of the RackView Widescreen 19-inch Operation of the RackView Widescreen 19-inch Cabling RackView to an External Device Connection to a PS2 or USB Server Connection to an External KVM Switch...
  • Page 5 TABLE OF CONTENTS Table 2. RackView product and packaging dimensions (including a KVM switch) ......14 Table 3. Video resolution related to LCD specification ..............15 Table 4. DVI-D and VGA video formats .................... 17 Table 5. 3G/HD/SD-SDI video formats .................... 17 Table 6.
  • Page 6: Disclaimer

    (See limited warranty). System Introduction Thank you for choosing the Rose Electronics RackView Widescreen 19" Console Drawer. This product is the result of Rose Electronics’ commitment to providing state-of-the-art solutions for today’s demanding workplace.
  • Page 7: Package Contents

    It is very important to mount the equipment in a suitable cabinet or on a stable surface. Make sure the mounting location has good ventilation, is out of direct sunlight, and away from sources of excessive dust, dirt, heat, water, moisture, and vibration. RackView Widescreen 19" Manual...
  • Page 8: Rackview Model

    RackView Model The RackView is available as described below. RackView Layout RackView Widescreen 19-inch color LCD Figure 1. RackView product layout - key features RackView Rear Panel Connector Layout The RackView rear panel includes an HD15(KVM) and DVI-D connector as standard. The HD15(KVM) connector supports VGA video, and also the keyboard/mouse interface.
  • Page 9: Installation Procedure

    INSTALLATION Installation Procedure Installation of the RackView Widescreen 19-inch Step 1 Insert the Left and Right rear-mounting slides into the RackView Console Drawer Step 2 Measure the depth of the front and rear rack rails Align each rear-mounting slide to a suitable length...
  • Page 10: Operation Of The Rackview Widescreen 19-Inch

    Operation of the RackView Widescreen 19-inch Step 1 Hold the handle and slide out the RackView drawer Step 2 Flip up the LCD to a suitable viewing angle Step 3 Operate the RackView Console Drawer Figure 4. RackView console drawer operation...
  • Page 11: Cabling Rackview To An External Device

    RackView, we suggest turning off the power to all devices. Apply power to connected devices only after the RackView has been powered-on. Rose Electronics is not responsible for any product damage or warranty claims caused in this way.
  • Page 12: Rackview Cables

    The RackView can support 5 different video interfaces, VGA, DVI-D, and the optional HDMI, S-Video/BNC, and 3G-SDI. HDMI, S-Video/BNC, and SDI cables are available from Rose Electronics. Troubleshooting If the RackView KVM Drawer fails to synchronize correctly with the attached product (PC, Switch, Extender),...
  • Page 13: Rackview Operation

    Locate the “Video Input Select” button on the OSD display control panel   Push the Video Input Select button to toggle between VGA and DVI Input  Select the appropriate Video Input format (VGA or DVI) OSD Selection OSD Selection Panel Figure 7. OSD menu selection RackView Widescreen 19" Manual...
  • Page 14: Osd Operation

    PIP position: Enter into PIP position PIP source: Enter into the Sub source and sound source System reset: Return the adjustment back to factory setting Information: Select for Help Figure 8. RackView OSD configuration and settings RackView Widescreen 19" Manual...
  • Page 15: Safety

    The Unit does not operate normally when all operating instructions have been followed.   The Unit has been dropped or the case has been damaged.  The Unit exhibits a distinct change in performance, indicating a need for service. RackView Widescreen 19" Manual...
  • Page 16: Maintenance And Repair

    This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container.
  • Page 17: Appendices

    Operating Humidity Operating: 20~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random vibration Regulation/Approvals cUL, FCC, CE, RoHS2, REACH Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs and DELLs. LCD Panel MTBF 50,000 hours RackView Widescreen 19" Manual...
  • Page 18: Appendix B - Part Numbers

    /K3: CAB-CMBDVUAC005: DVI-D + HD15(M) to DVI-I + 1 x USB-A RackView + KVM Switch RackView Widescreen 19" with 12-port DVI/USB KVM Switch + 6 x RV1-CAKVT19/WS/KVM12TDVI-K1 DVI/USB 6ft cables RackView Widescreen 19" with 8-port VGA/USB KVM Switch + 8 x...
  • Page 19: Figure 9. Rackview Chassis Dimensions

    17.4 x 22.8 x 1.73 inch 23.2 x 31.8 x 5.5 inch 12.5Kg 18.1Kg Table 2. RackView product and packaging dimensions (including a KVM switch) RackView Chassis Dimensions Front View Side View Measurement in mm Figure 9. RackView chassis dimensions RackView Widescreen 19" Manual...
  • Page 20: Figure 10 Rackview Integrated Kvm Switch Models

    Figure 10 RackView integrated KVM switch models Maximum Video Resolutions Supported with an Integrated KVM Switch Video resolution 16:10 Maximum 1920 x 1200 Supported 16:9 Maximum 1920 x 1080 Maximum 1600 x 1200 Table 3. Video resolution related to LCD specification RackView Widescreen 19" Manual...
  • Page 21: Figure 11. Rackview With The Hdmi Video Option

    HDMI, DVI-D, VGA, S-Video, BNC, and audio inputs. This option includes a factory fitted audio speaker on the keyboard tray. The 3G/HD/SD-SDI option will increase the standard RackView chassis depth from 18.9 inches to 20.86 inches (460mm to 530mm) Figure 13. RackView with 3G/HD/SD-SDI video option RackView Widescreen 19" Manual...
  • Page 22 SG-SDI 48kHz, 16 / 20 / 24-bit, 2 CH, Synchronized / Asynchronized Video 3G-SDI 150m at 2.97Gb/s Max transmission distance HD-SDI 250m at 1.485Gb/s 75-ohm coaxial cable SG-SDI 480m at 270Mb/s Table 5. 3G/HD/SD-SDI video formats RackView Widescreen 19" Manual...
  • Page 23: Figure 14. Rackview With A Dc Power Connector Fitted

    For example, adding 48VDC to a RackView 19” would result in RV1-CAKVT19/WS/Kn/48DC part number. Figure 14. RackView with a DC power connector fitted Table 6. RackView DC power options The DC power option excludes the AC power adapter and power cord RackView Widescreen 19" Manual...
  • Page 24 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
