RackView

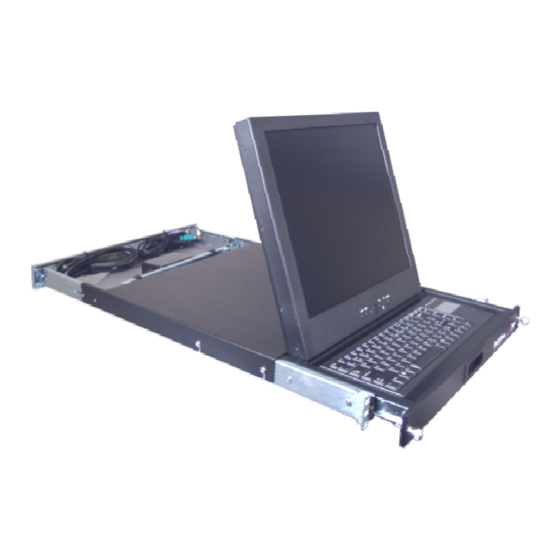

Rack Mountable KVM Drawer with optional KVM Switch
RV2-KVM15B
RV1-KVM15C/17B/19A
The RackView offers the latest, most efficient way to control server rooms or multiple computers. The
RV1 & RV2 models are offered with an optional KVM switch installed.
SUN models with MD8 or USB connectors are now available
Features
Supports AT/XT, PS/2, Unix
15", 17", or 19" TFT/LCD color monitor with front panel controls
On-screen display for easy adjustments
Tactile keyboard
Integrated High-Resolution Trackball mouse
Optional KVM switch
Fits in a standard 19" rack
Front panel conceals unit when it is not in use
RV1-KVM19 model features PIP and 3 video inputs, HD15, RCA, and S-Video
One year limited warranty
10707 Stancliff Road
Houston, Texas 77099
All manuals and user guides at all-guides.com
TM
Quick Start Guide
RV2-CKVM15A
RV1-CEKVM15A/17
®
®
, Sun
, and Macintosh
RV1-LCD17 / 19
RV1-KVM17/19 (SU/SM)
®
RV1-KM
(SUN)
Phone: (281) 933-7673
WWW .ROSE.COM
Advertisement
Table of Contents
Related Manuals for Rose electronics RackView RV2-KVM15B
Summary of Contents for Rose electronics RackView RV2-KVM15B
- Page 1 All manuals and user guides at all-guides.com RackView Rack Mountable KVM Drawer with optional KVM Switch Quick Start Guide RV2-KVM15B RV2-CKVM15A RV1-LCD17 / 19 RV1-KM RV1-KVM17/19 (SU/SM) RV1-KVM15C/17B/19A RV1-CEKVM15A/17 (SUN) The RackView offers the latest, most efficient way to control server rooms or multiple computers. The RV1 &...
- Page 2 All manuals and user guides at all-guides.com Package contents RackView Drawer assembly Trackball driver (on floppy diskette) Video monitor users manual (Not included with model RV1-KM) Power cord (US only) Rack mounting cage nuts Unpacking DO NOT DISCARD THE SHIPPING CONTAINER, PACKING MATERIAL OR SHIPPING PLATE. Tools needed - #2 Phillips head screwdriver Remove RackView assembly from the shipping container by removing the top protective foam and lifting from the middle of the unit.
- Page 3 All manuals and user guides at all-guides.com RackView Installation 1U assembly (RV1 models) 1. Tilt the RackView assembly enough to fit through the rack opening. Guide it through the rack until the rear mounting flanges are just past the rear of the rack rails. Make sure the front mounting flanges remain on the outside of the front rack rails.
-
Page 4: Technical Support
All manuals and user guides at all-guides.com KVM switch options The RackView can be ordered with an optional Rose Electronics KVM switch. The UltraView Pro, ServeView Pro and the UltraMatrix 2xE and 4xE models can easily be installed in the RackView. They mount to the rear RackView rails on the provided brackets.
