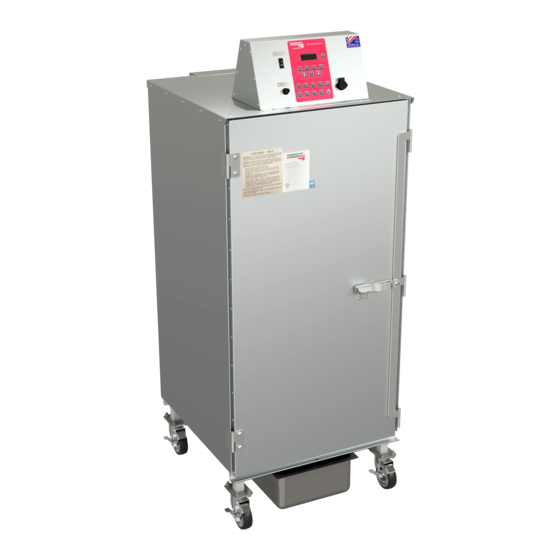

- Page 1 800.423.0698 www.cookshack.com info@cookshack.com OPERATOR’S MANUAL COOKSHACK MODEL 250/260 SMARTSMOKER OVEN Version: 10.1 Model 250/260 Serial No: Cookshack Model 250/260 SmartSmoker Oven...
-
Page 2: Model
Operator’s Manual to familiarize yourself with the smoker and its operation. If you have a question or problem not covered in the book, write to us at 2304 N. Ash St., Ponca City, OK 74601, or call Cookshack Customer Service at (580)765- 3669, Monday through Friday, 9am to 4pm. -
Page 3: Table Of Contents
Cleanup ........................... 12-13 Maintenance ......................... 14 TROUBLESHOOTER’S GUIDE Operations and Cooking ....................14-16 APPENDICES Limited Warranty Policy ................... 17 B. Return Merchandise Policy ................18-19 C. Electrical Diagram ....................20 D. Smoker Illustration ..................... 21 Cookshack Model 250/260 SmartSmoker Oven... -
Page 4: Setting Up
NEMA codes, and any other applicable electrical codes COOKSHACK Model 250/260’s have a dual burner system using 208/240V AC single phase power. Connect these ovens to the power supply by connecting to a receptacle with... -
Page 5: Cooking
Caution: The maximum amount of wood to be used in your Cookshack Model 250/260 smoker oven is 12 ounces. Do not overload Wood Boxes. Use only dry wood. You will get the best results in finished product with dry wood. Wet wood will release acids that will damage heating elements and reduce the length of their life. -
Page 6: Preparing The Oven For Cooking
When you are smoking thicker items such as turkeys or large hams remove alternate grills. When hang-smoking ribs, remove all except the top and bottom grills, and raise side racks to highest position. Cookshack Model 250/260 SmartSmoker Oven... -
Page 7: Smoker Oven Loading Capacity
Smoker Oven Maximum Load Capacity IMPORTANT: Do not overload your smoker. Use the Smoker Oven Maximum Load Capacity chart below to determine the maximum capacity of your smoker. The following chart shows maximum cooking capacities, per load, of various Cookshack smoker ovens. Ribs... -
Page 8: Setting The Cooking Temperature
Setting the Cooking Temperature Your Cookshack Model 250/260 has the new Cookshack IQ4 control system. This controller has the same great cook & hold features as previous models of the IQ controller, but with an additional feature that allows you to cook with a meat probe. - Page 9 The probe temperature displayed is the internal temperature of the product. In order to see the set cooking temperature, probe temperature, or holding temperature, briefly press the corresponding button. Cookshack Model 250/260 SmartSmoker Oven...
- Page 10 The IQ controller is also equipped with a door position sensor. If the oven door is open, the oven heating elements are disabled an alarm sounds and the display reads door open. Please contact your Cookshack Service Representative for assistance if you experience this problem. The door position sensor is a safety feature and must be kept in working order.
-
Page 11: Holding
Remember, these are basic guidelines only and are not intended to replace laws, regulations, or restrictions concerning the handling and processing of food products. For further information, use your local health department guidelines to determine the best method for holding product, hot or cold. Cookshack Model 250/260 SmartSmoker Oven... -
Page 12: Shutdown Procedure
Always disconnect the oven from its electrical supply before cleaning or servicing. Your Cookshack smoker must be kept clean. Loose grease and scale should be removed regularly to prevent buildup, which may cause strong fumes. It is desirable to allow seasoned coating, such as that found on a well-seasoned cast iron skillet, to remain on the oven walls. - Page 13 Heat Shield after each cooking and remove all excess grease from interior of oven. Drain hole must be open at all times. If drain becomes plugged, oven bottom can fill with grease and a fire hazard may occur! Cookshack Model 250/260 SmartSmoker Oven...
-
Page 14: Maintenance
Malfunction in heating Have electrician change the same time and element. element. temperature as always, product is now taking longer to cook. Actual oven temperature Normal reads 5 to 20°higher or lower than set temperature. Cookshack Model 250/260 SmartSmoker Oven... -
Page 15: Troubleshooter's Guide
Cookshack Seafood Grills. Ribs fall off Rib Hooks Ribs not securely fastened. Review Rib Hook instructions; make sure ribs are securely fastened. Overcooking Cook for shorter time. Poultry not getting done Overloading Review loading and Capacity instructions. Cookshack Model 250/260 SmartSmoker Oven... -
Page 16: Troubleshooter's Guide
Do not use sheet pans in the smoker as they will block even circulation of heat and smoke. Brisket on bottom cooks too Improper loading. Load bottom grill with fast. fewer briskets and load with fat side down. Cookshack Model 250/260 SmartSmoker Oven... -
Page 17: Limited Warranty Policy
4. The Limited Warranty shall not apply if the merchandise has been improperly installed, damaged due to abuse, misuse, misapplication, accident, or as a result of service or modification by any other than an authorized Cookshack, Inc. service agent. There are no express warranties other than the limited warranty stated herein above. -
Page 18: Return Merchandise Policy
RETURN MERCHANDISE POLICY If you have merchandise that you believe is defective and requires repair or replacement: 1. Call Cookshack, Inc. at (580)765-3669. Ask to speak to a Customer Service Representative. Have your Smoker Oven model number and serial number ready. - Page 19 Credit may be denied if the returned merchandise is not found to be defective by Cookshack, Inc.; if it is not under warranty; if it is not received at Cookshack, Inc. 30 days after your RETURN NUMBER is issued; if it is damaged due to abuse, misuse, misapplication or accident;...
-
Page 20: Electrical Diagram
800.423.0698 www.cookshack.com info@cookshack.com APPENDIX C Cookshack Model 250/260 SmartSmoker Oven... -
Page 21: Smoker Illustration
Probe Jack PV535 Door Switch PV366 Probe Jack Cover PV536 Latch PV169 Grill PV013 Side Rack PM025 Probe PV718 Limit Switch PV551 Woodbox PM305 Seal Kit PA230 Element PV325 Casters Drain Pan PV702 Front PV175 Back PV176 Cookshack Model 250/260 SmartSmoker Oven...
