Multi-Camera Operation
This wireless surveillance system is designed to
work with up to 2 cameras. Additional cameras
are sold separately. IMPORTANT: When using
more than one camera, each camera must be
assigned to a specifi c channel using the channel
selection switch located on the underside of the
camera housing.
Select either 1 or 2 for each camera. Each camera
must be assigned to a specifi c channel; both
cameras cannot be on the same channel or the
signals will cancel out. If using only one camera
you can select either Ch 1 or Ch 2, whichever
provides the best picture. The slide switch located
on the rear of the Receiver must be set to refl ect
the channels in use.

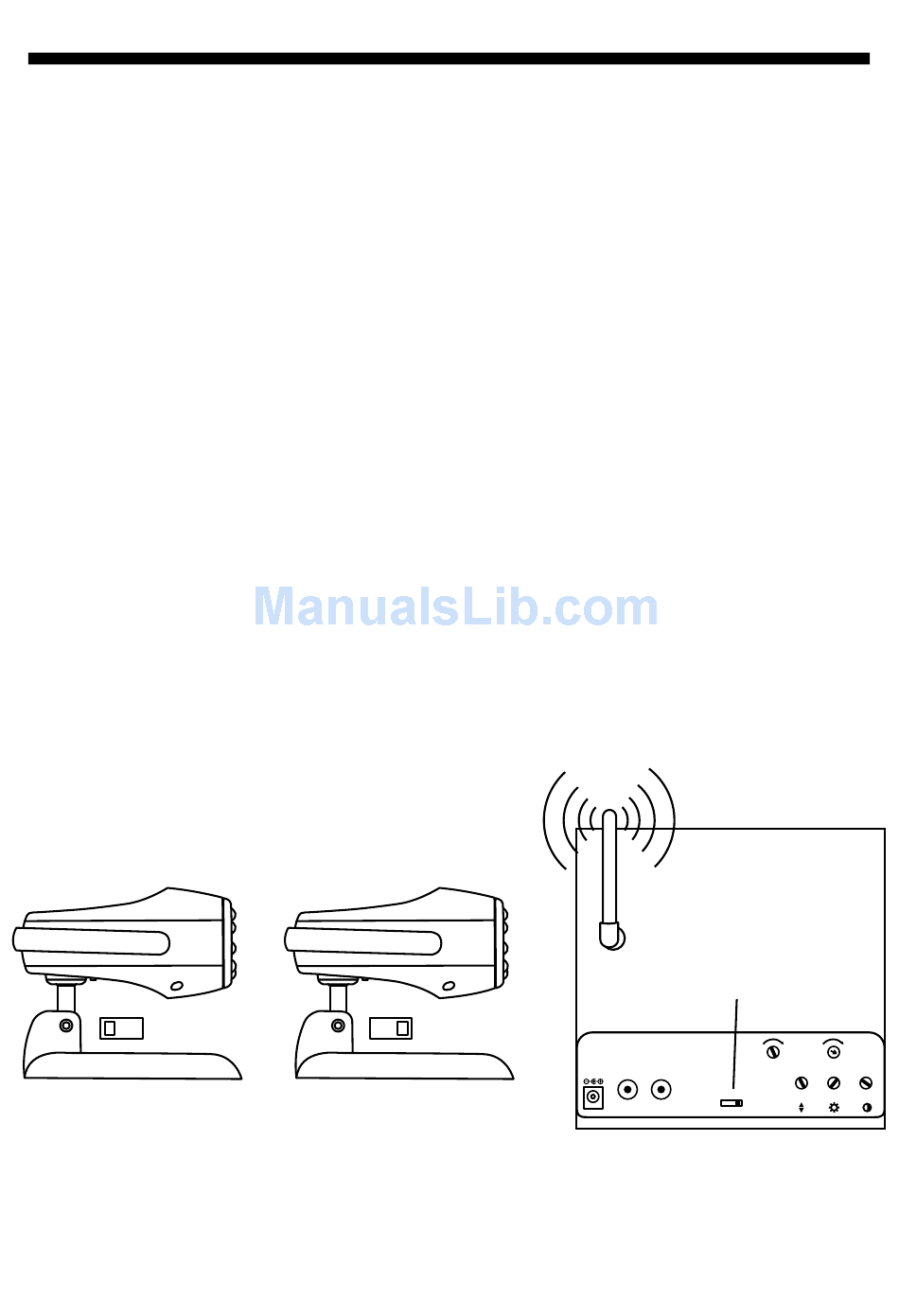

1 2
CAMERA 1
Channel Setting
Auto Mode (2 Camera Operation)
To have the Monitor automatically switch between
two active channels, fi rst check the receiver is set
1 2
CAMERA 2
Channel Setting
Channel
Selection
switch
13.5V 1.2A
Audio Out
Video Out
1 2 1/2
CHANNEL
7
MONITOR
+
+
BEEP
TRIGGER
V-HOLD
BRIGHT
CONT
