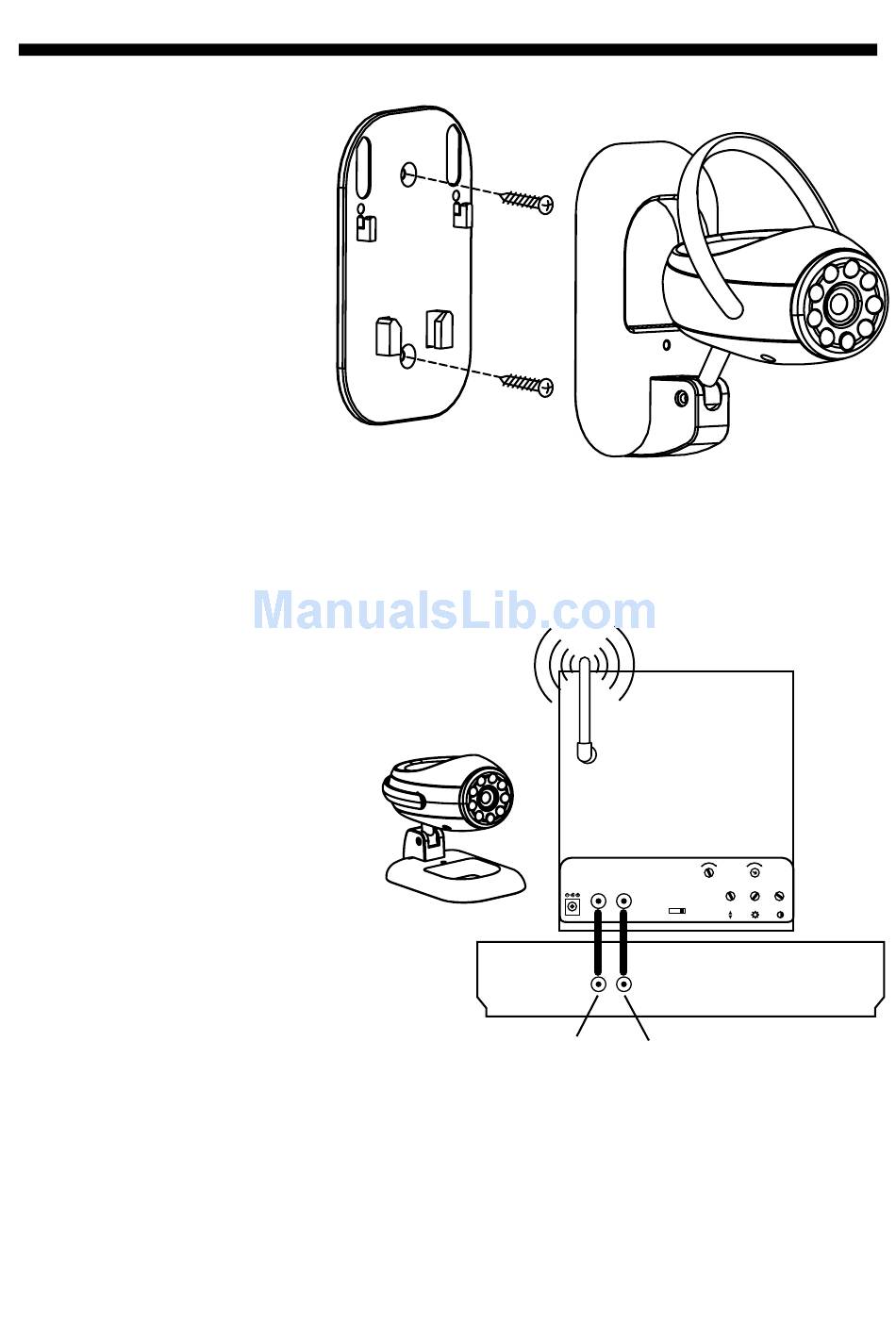

3. Set Channel
switch on camera
to 1 or 2. Slide the
camera onto the
alignment and
locking pins of
the mounting
plate.
4. Adjust antenna and
camera angle as needed
for the clearest picture.
USING THE 45235 B/W
WIRELESS CAMERA
MONITOR
SYSTEM WITH A
VCR
You can connect the
45235 Monitor to a
–
+
–
+
BEEP
TRIGGER
13.5V 1.2A
Audio Out
Video Out
VCR, DVR or another
1 2 1/2
V-HOLD
BRIGHT
CONT
CHANNEL
monitor in order to
VCR
record/view the images
received from up to 2
Video In
Audio In
cameras. If connected to
VCR or DVR, the VCR/DVR must also be connected a
TV/Monitor in order to see live or recorded images.
