setting (1 or 2) located on
the unside of the camera
housing. (See Channel
Selection.)
4. Brightness/Contrast and
Vertical Hold can be adjusted
with controls at the back of
the monitor.

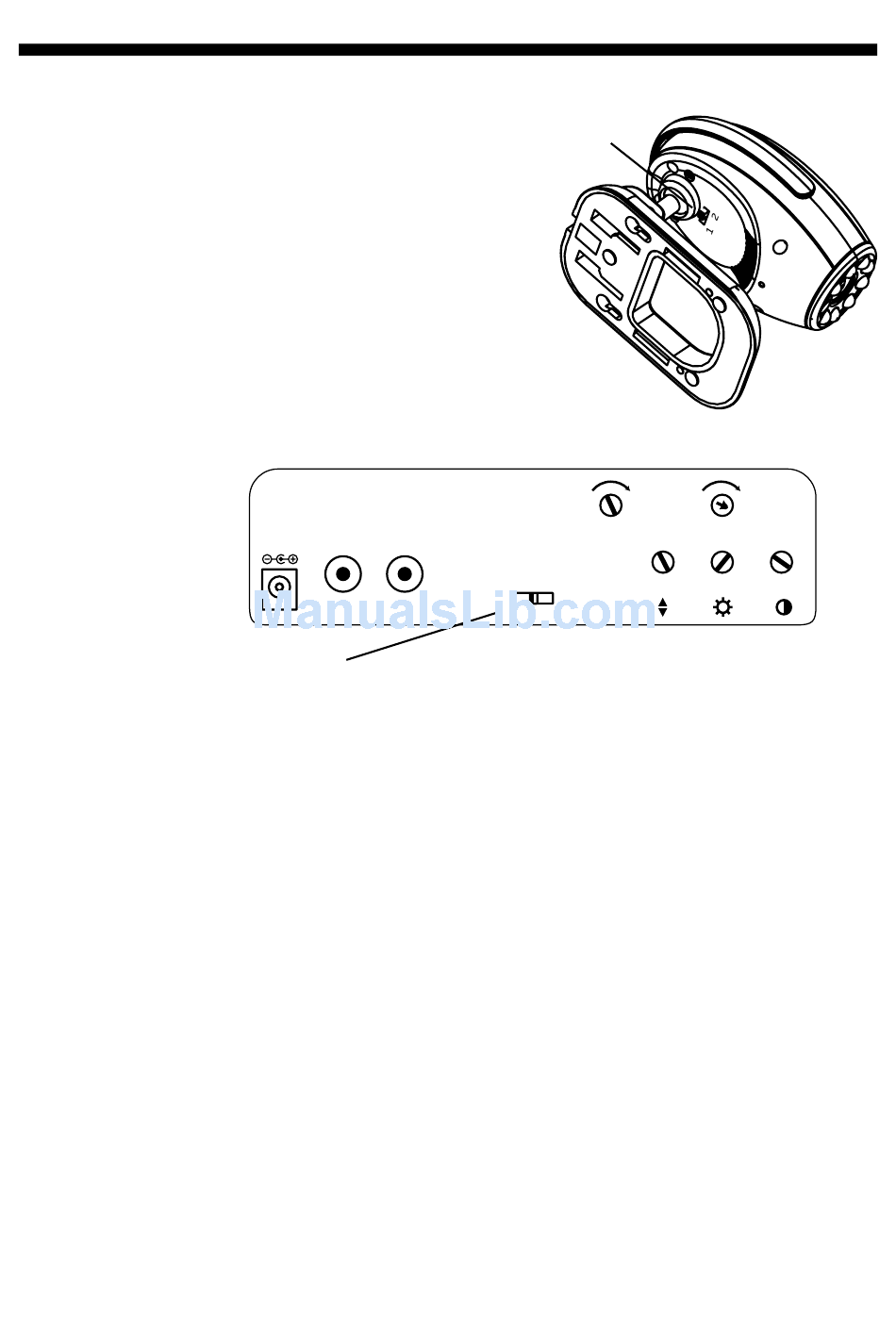

Monitor
controls
Channel
Selection switch

CHANNEL SELECTION

Manual Mode

To select one of the two channels manually,
press the MANUAL button on the front panel
of the Monitor. The green LED will light for the
corresponding channel. The Monitor will switch to
a different channel (1 or 2) each time the MANUAL
button is pressed. When you have selected the
channel with the active camera, that video will
appear on the monitor screen. Each camera must
be assigned to a specifi c channel; both cameras
cannot be on the same channel or the signals will
cancel out.
13.5V 1.2A
Audio Out
Video Out
Channel
Selection
switch
+
BEEP
1 2 1/2
CHANNEL
+
TRIGGER
V-HOLD
BRIGHT
CONT
