Desktop Mount:

1. Place camera in desired
location on a fl at surface.
2. Set Channel switch on
camera to 1 or 2.
3. Reconnect AC adapter to
the camera and power on the
monitor.
4. Adjust antenna and camera
angle as needed for the clearest
picture. Positioning the antenna
upwards to improve transmission distance, and
downwards to reduce transmission. Take care not
to force the antenna past its lock positions.

Wall Mount:

1. To simplify the wall mount process, you will fi nd
a custom wall mounting plate included with the
mounting hardware.
2. Select the ideal location. Using the supplied mount
as a template, drill two 3/16" holes in the desired
mounting location, and install the two wall anchors
(included) into the holes, or screw directly into a wall
stud. Secure the mounting plate to the wall, Do not
run the adapter cable in walls; when securing the
cable, do not cut or puncture.
MIN

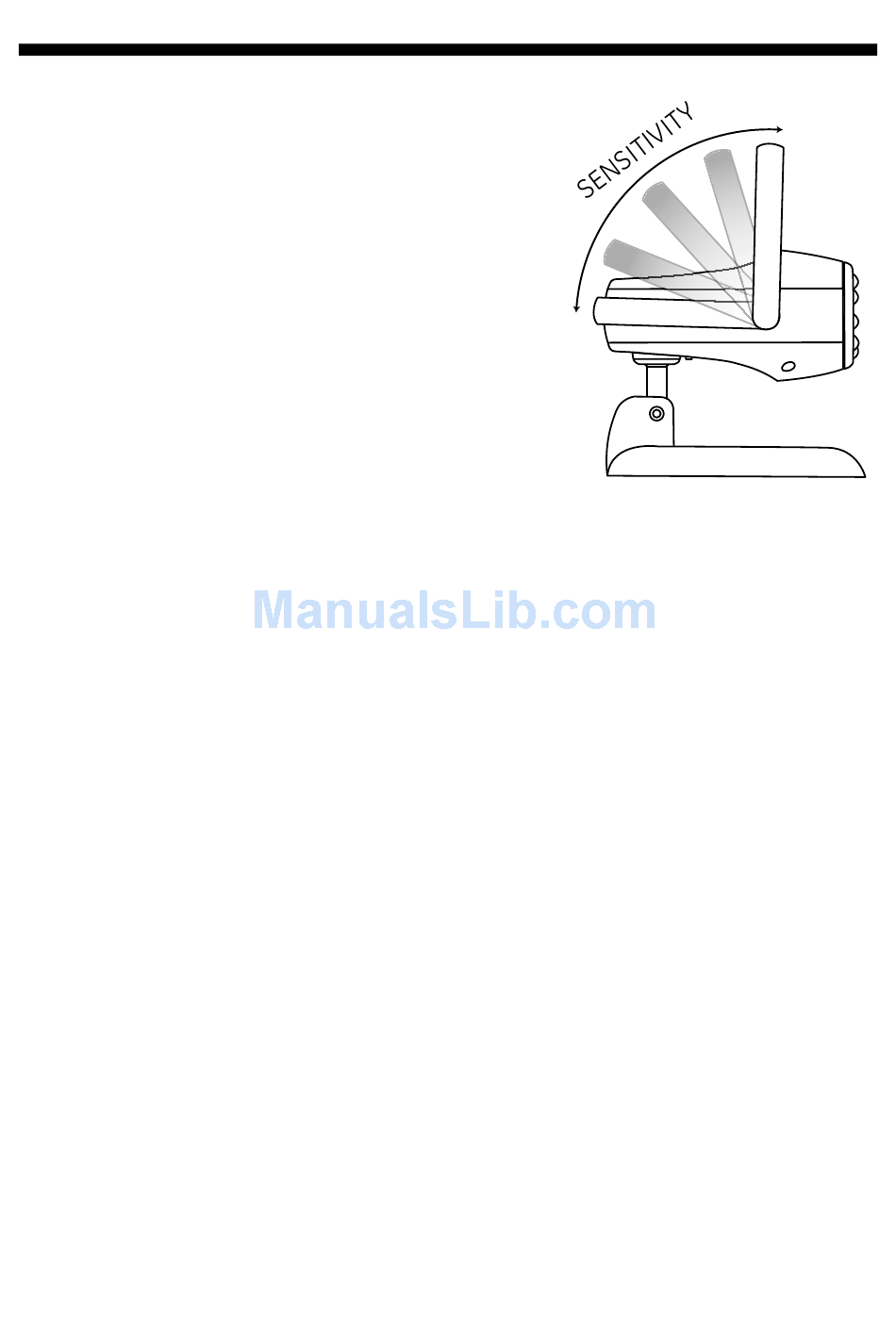

Antenna pivots to
increase/decrease
signal strength
MAX
