Installation instructions
4

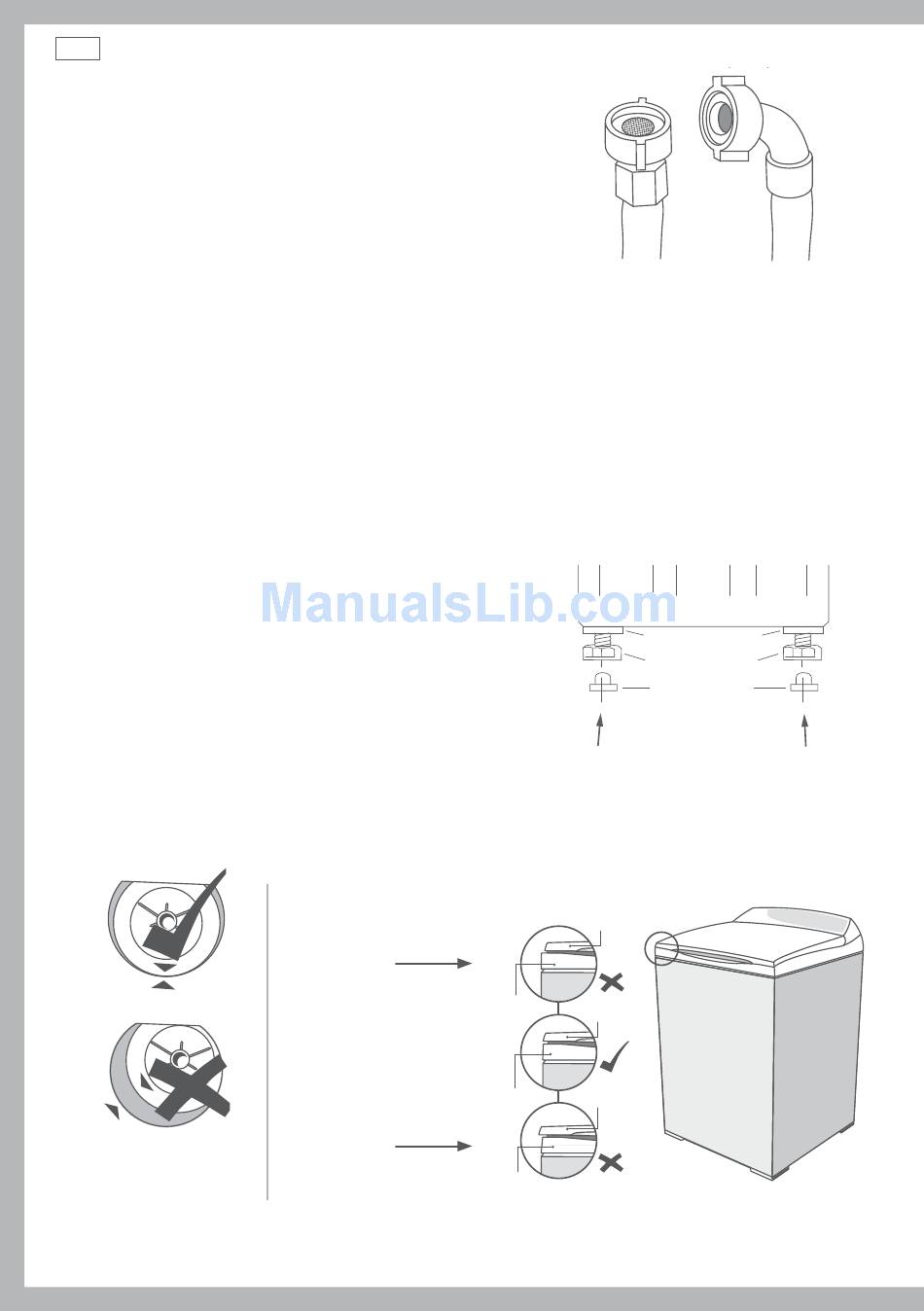

Inlet hoses
Connect the straight ends of the inlet hoses to the taps.
1
There are washers fitted in both ends.
Connect the elbow ends of the inlet hoses to the
2
machine inlet valves. Inlet valves are marked on the
back of the machine.
H=Hot
Ensure you have correctly connected hot to hot and cold to cold.
Cold supply only:
If you only have a cold water supply, an inlet valve cap (blanking cap) MUST be connected to
the hot inlet valve. The cap prevents water leaking out of the hot valve. The cap is available
from your Fisher & Paykel Dealer or Authorised Service Centre, Part No. 388491. This appliance
incorporates backflow protection complying with AS3500.1. No further backflow protection is
required for connection to the water supply.
Levelling
It is IMPORTANT to level the machine to ensure even
spin performance.
Separate the 4 rubber foot inserts from the moulding
1
and fit into the feet on the base of the machine.
Move the machine to its final position. (We suggest a
2
minimum clearance of 20 mm each side).
Adjust the feet (wind down) so the machine is level
3
and cannot rock.
To check if your machine is level:
Look down on the wash bowl and make sure it sits slightly forward of centre. Close the lid.
Visually check that the lid fits evenly on both sides (see Fig.6). If not, adjust one of the front feet
slightly until it matches. The diagram on the top and bottom are not correct.
Correct
Incorrect
To check levelling look
down on the wash bowl
Turn on the water and check all hose connections for leaks. Make sure there are no kinks in the hoses.
4
Uncoil power cord and plug into wall socket.
5
C=Cold.
Wind left foot down
(out) to correct
Wind right foot down
(out) to correct
Fig.6 To assess levelling check lid alignment
Tap end
Fig.4 Inlet hose ends
Corner cabinets
Fig.5 Adjusting levelling feet
Lid Alignment
Lid
Topdeck
Lid
Topdeck
Lid
Topdeck
Machine end
Adjustable feet
Rubber insert
