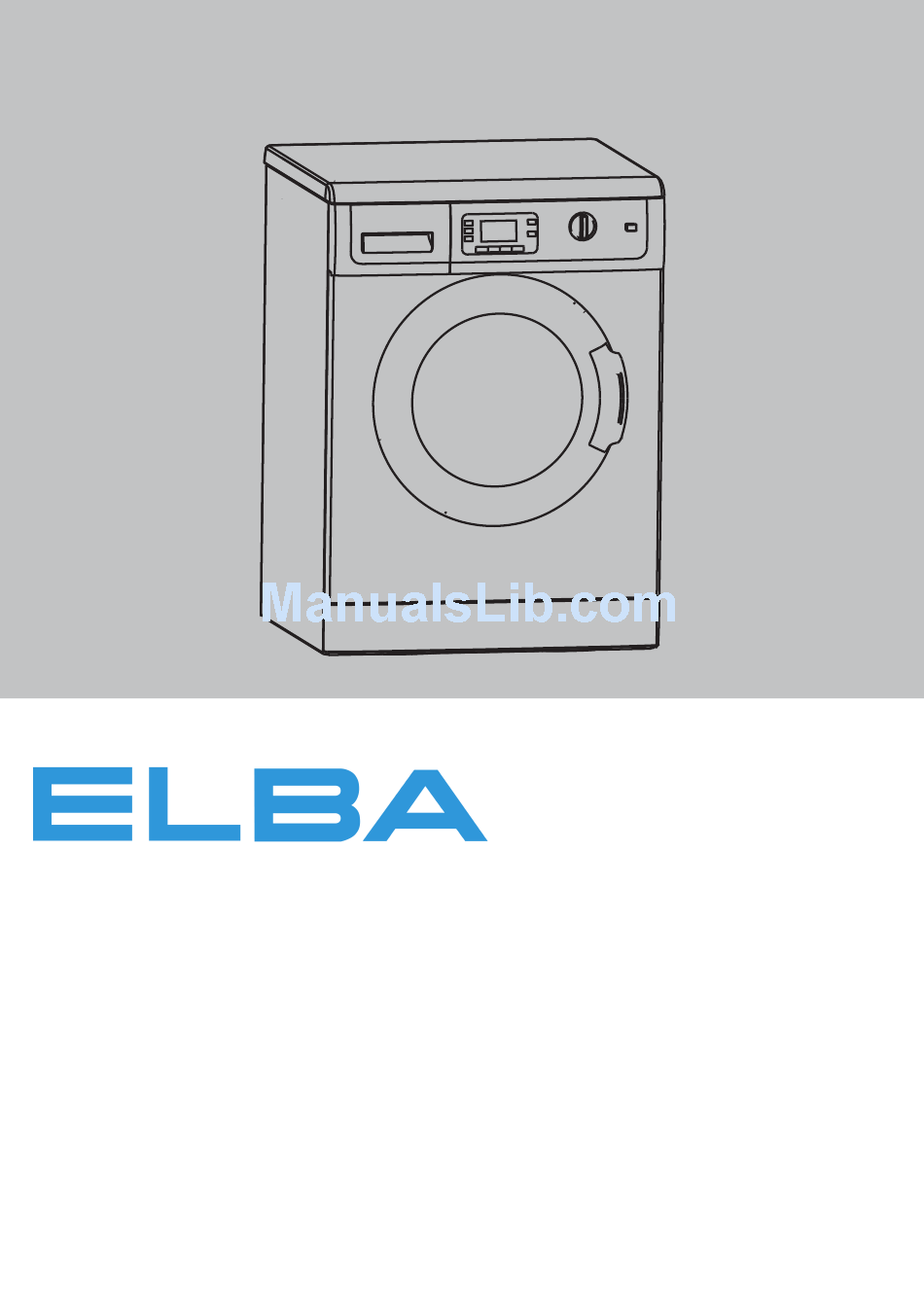

WASHING MACHINE

Models:EWF-8120
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the back cover
and quote this information to your dealer
when you require service.
For The Warranty Terms &Conditions,Please Refer To Warranty Certificate.

Advertisement

Table of Contents
loading

Related Manuals for Elba EWF-8120

Summary of Contents for Elba EWF-8120

  • Page 1: Washing Machine

    WASHING MACHINE Models:EWF-8120 Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the back cover and quote this information to your dealer when you require service.

  • Page 2: Warnings General Safety

    1 Warnings Safety instructions • This appliance must be connected to General Safety an earthed outlet protected by a fuse of • Never place your machine on a carpet suitable capacity. covered floor. Otherwise, lack of airflow • The supply and draining hoses must from below of your machine may cause always be securely fastened and remain in electrical parts to overheat.

  • Page 3: Installation Removing Packaging Reinforcement

    2 Installation Removing packaging reinforcement Tilt the machine to remove the packaging reinforcement. Remove the packaging reinforcement by pulling the ribbon. • If you are going to use your double water- Opening the transportation locks inlet machine as a single (cold) water-inlet Transportation safety bolts must be unit, you must install the stopper*, supplied removed before operating the washing...

  • Page 4: Initial Preparations For Washing

    Electrical connection Detergents and softeners Connect the machine to an earthed outlet Detergent Drawer protected by a fuse of suitable capacity. The detergent drawer is composed of three compartments: Important: • Connection should comply with national The detergent dispenser may be in two regulations.

  • Page 5: Selecting A Program And Operating Your Machine Control Panel

    4 Selecting a Program and Operating Your Machine Control panel Figure 1 1 - Spin Speed Adjustment Button 5 - Auxiliary Function Keys 2 - Time Delaying Button (+/-) 6 - Program Selection Knob 3 - Temperature Adjustment Button 7 - Display 4 - Start/Pause/Cancel Button 8 - On/Off Button Display symbols...

  • Page 6: Main Programs

    It is recommended to use liquid detergent or gel washing detergent. Main programs • Curtain Depending on the type of textile, the following Use this programme to wash your tulles and curtains. Thanks main programs are available: to the special spin profile of the programme, tulles and curtains •...

  • Page 7: Program Selection And Consumption Table

    shown with “ ” symbols. Adjust the spin speed. Press “Start/Pause/Cancel” button. If you do not want to unload your clothes Program resumes. Your machine drains the immediately after the program, you may use water and spins your laundry. the rinse hold function in order to prevent your You can use no spin function in order to drain clothes become wrinkled in an anhydrous the water without spinning at the end of the...

  • Page 8: Auxiliary Functions

    Auxiliary functions and amount of laundry, auxiliary functions selected, and changes in the supply voltage. Auxiliary Function Selection Buttons Select the required auxiliary functions before starting the program. Time delay Some combinations cannot be selected With the “Time delay” function you can delay together.

  • Page 9: Childproof Lock

    Switching the machine to standby 5 Maintenance and cleaning mode Detergent Drawer Press “Start/Pause/Cancel” button Remove any powder residue buildup in the momentarily to switch your machine to the drawer. To do this; standby mode. Auxiliary functions can be 1. Press the dotted point on the siphon in the cancelled or selected in accordance with softener compartment and pull towards the step the program is at.

  • Page 10: Cleaning The Pump Filter

    Draining any remaining water and by pulling out the plug at the end of the hose. If the amount of water to be drained cleaning the pump filter off is greater than the volume of the Your product is equipped with a filter system container, replace the plug, pour the water which ensures a cleaner water discharge that out, then resume the draining process.

  • Page 11: Solution Suggestions For Problems

    6 Solution suggestions for problems Cause Explanation / Suggestion Program cannot be started or selected. • Machine may have switched to self • Reset your machine by pressing “Start/ protection mode due to an infrastructure Pause/Cancel” button for 3 seconds. (see, problem (such as line voltage, water Canceling a Program) pressure, etc.).

  • Page 12: Specifications

    7 Specifications Model EWF 8120 Maximum dry laundry capacity (kg) Height (cm) 59.7 Width (cm) 56.5 Depth (cm) Net Weight (kg) Electricity (V/Hz.) 220-240 2000-2350 Total Power (W) Spinning cycle 1200 (rpm max.) Specifications of this appliance may change without notice to improve the quality of the product. Figures in this manual are schematic and may not match your product exactly.
