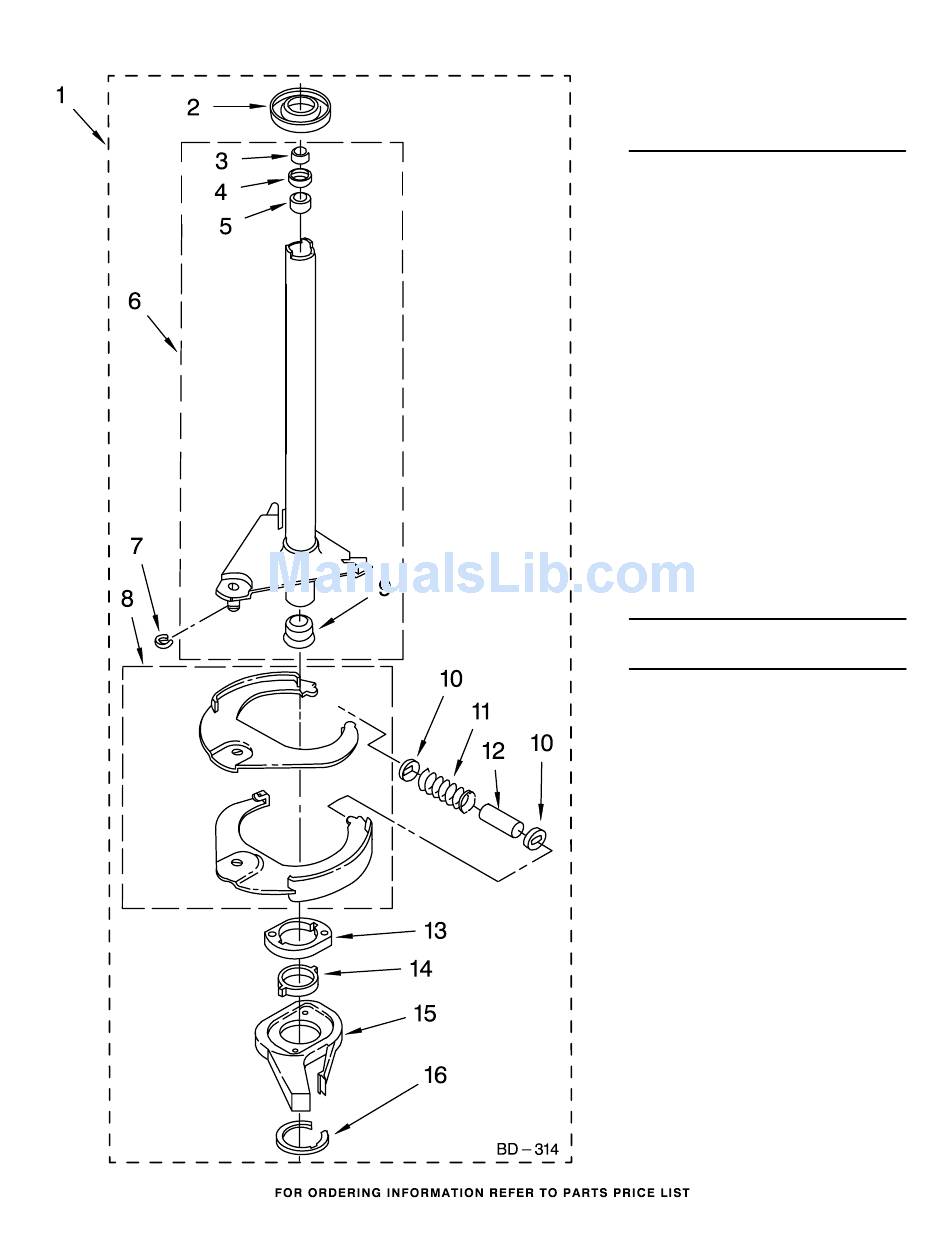

BRAKE AND DRIVE TUBE PARTS
For Model: 2DLXR7244MQ1
(Designer White)
Illus.
13
Part
No.
No.
DESCRIPTION
1
388951
Brake And Drive
Tube (Complete)
2
62658
Ring, Thrust
3
91939
Seal, Oil
4
356427
Seal, Drive Tube
5
356937
Spacer, Drive
Tube
6
64027
Tube, Basket
Drive (Includes
Illus. 3, 4, 5 & 9)
7
64035
Ring, Retaining
8
64232
Brake Shoe
9
62703
''T'' Bearing,
Spin Tube
10
62648
Cap, Brake
Spring (2)
11
62647
Spring, Brake
12
62909
Sleeve, Brake
Spring
13
63023
Cam, Brake
Release
14
63022
Sleeve, Cam
15
64194
Driver, Brake
Cam
16
90368
Ring, Retaining
FOLLOWING PARTS
NOT ILLUSTRATED
285208
Lubricant
(Use Only In
Brake Shoe
Assembly On
Roller & Pin)
