Brake And Drive Tube Parts - Whirlpool LSV9244DQ0 Parts List

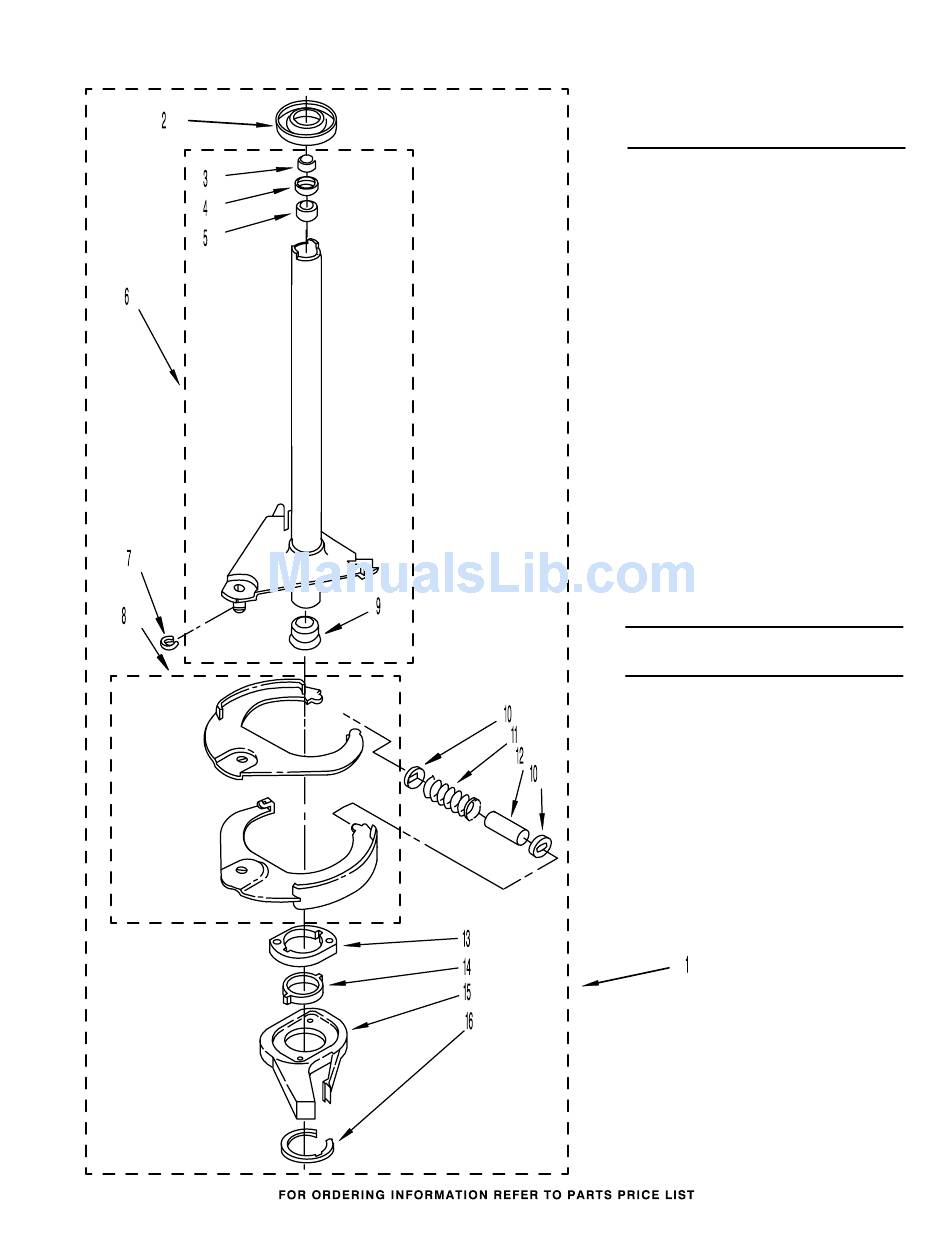

BRAKE AND DRIVE TUBE PARTS

For Models: LSV9244DQ0, LSV9244DZ0
(Designer White) (Designer Almond)
Illus. Part
No.
10
11
12
13
14
15
16
BD−315A
10
No. DESCRIPTION
1 388952 Brake And Drive
Tube (Complete)
2 62658 Ring, Thrust
3 91939 Seal, Oil
4 356427 Seal, Drive Tube
5 356937 Spacer, Drive
Tube
6 64027 Tube, Basket
Drive (Includes
Illus. 3, 4, 5 & 9)
7 64035 Ring, Retaining
8 64232 Shoe, Brake
9 62703 "T" Bearing,
Spin Tube
62648 Cap, Brake
Spring (2)
387806 Spring, Brake
62909 Sleeve, Brake
Spring
63023 Cam, Brake
Release
63022 Sleeve, Cam
64194 Driver, Brake
Cam
90368 Ring, Retaining
FOLLOWING PARTS
NOT ILLUSTRATED
285208 Lubricant
(Use Only In
Brake Shoe
Assembly On
Roller & Pin)
881267
