9 Measurements and Adjustments

9.1.

Electric Adjustment

• Adjustment method is different from a conventional High definition video camera.
• An exclusive jig and PC (including software for adjustment "Tatsujin") are necessary for electric adjustment.
• A USB driver for service is necessary to communication with PC.
• Connection method of the main unit and an exclusive adjustment jig as follows
9.1.1.
Adjustment Procedure
• Connect the main unit to PC with USB.
The adjustment instruction is available at "Software download" on the "Support Information from NWBG/VDBG-AVC" web-site in
"TSN System".

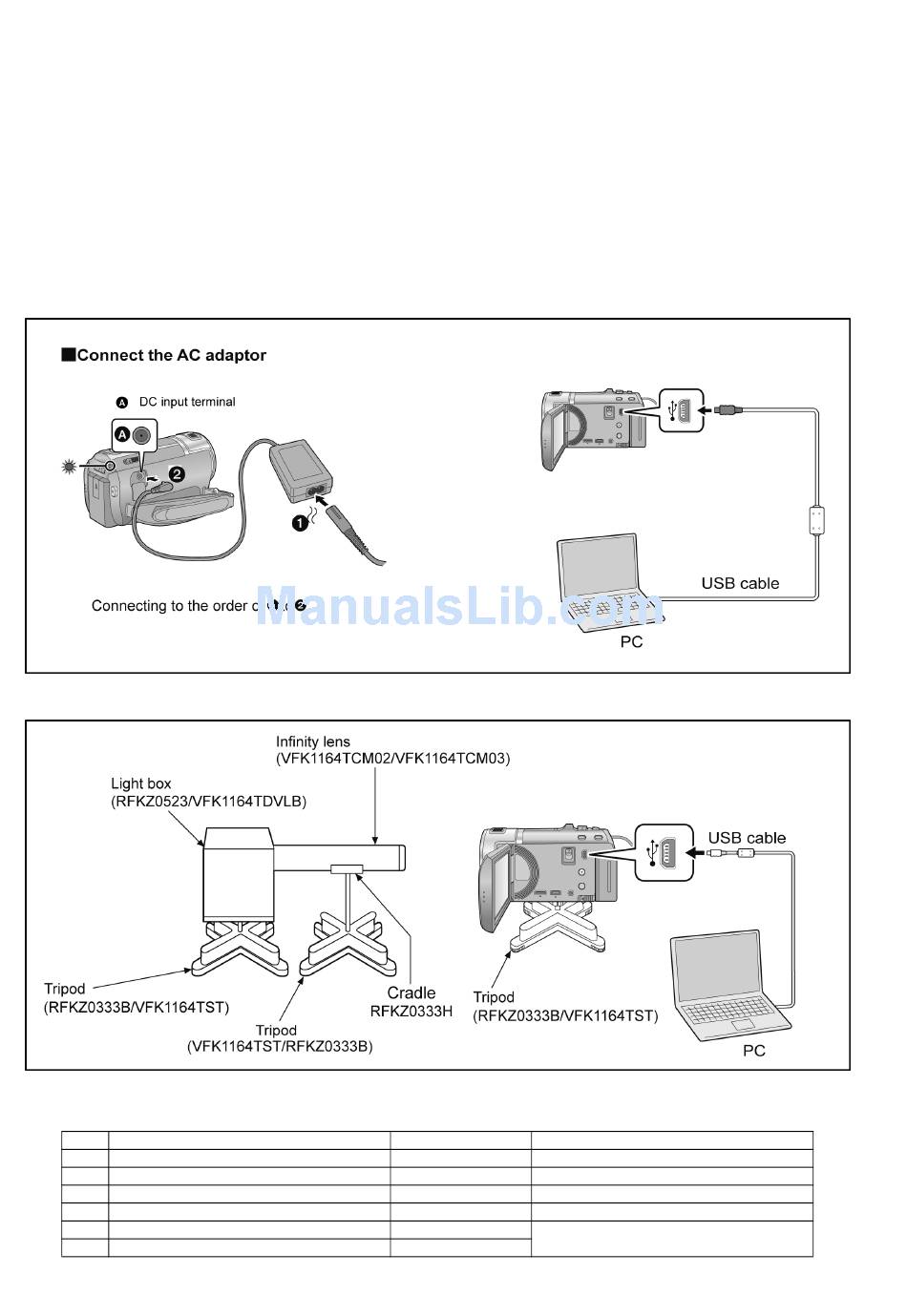

Figure of connection
Figure of image when adjustment
Part Number of jig
• Only a necessary jig mentions it in setup of electric adjustment.
No.
1
PC
2
AC Adaptor
3
USB Cable
4
Adjustment Software (Tatsujin)
5
C4 Filter
6
C8 Filter
Part Name
Part Number
------
------
------
------
VFK1164LBB4
The same as C12 Filter (VFK1164LBB12).
VFK1164LBB8
34
Remarks
