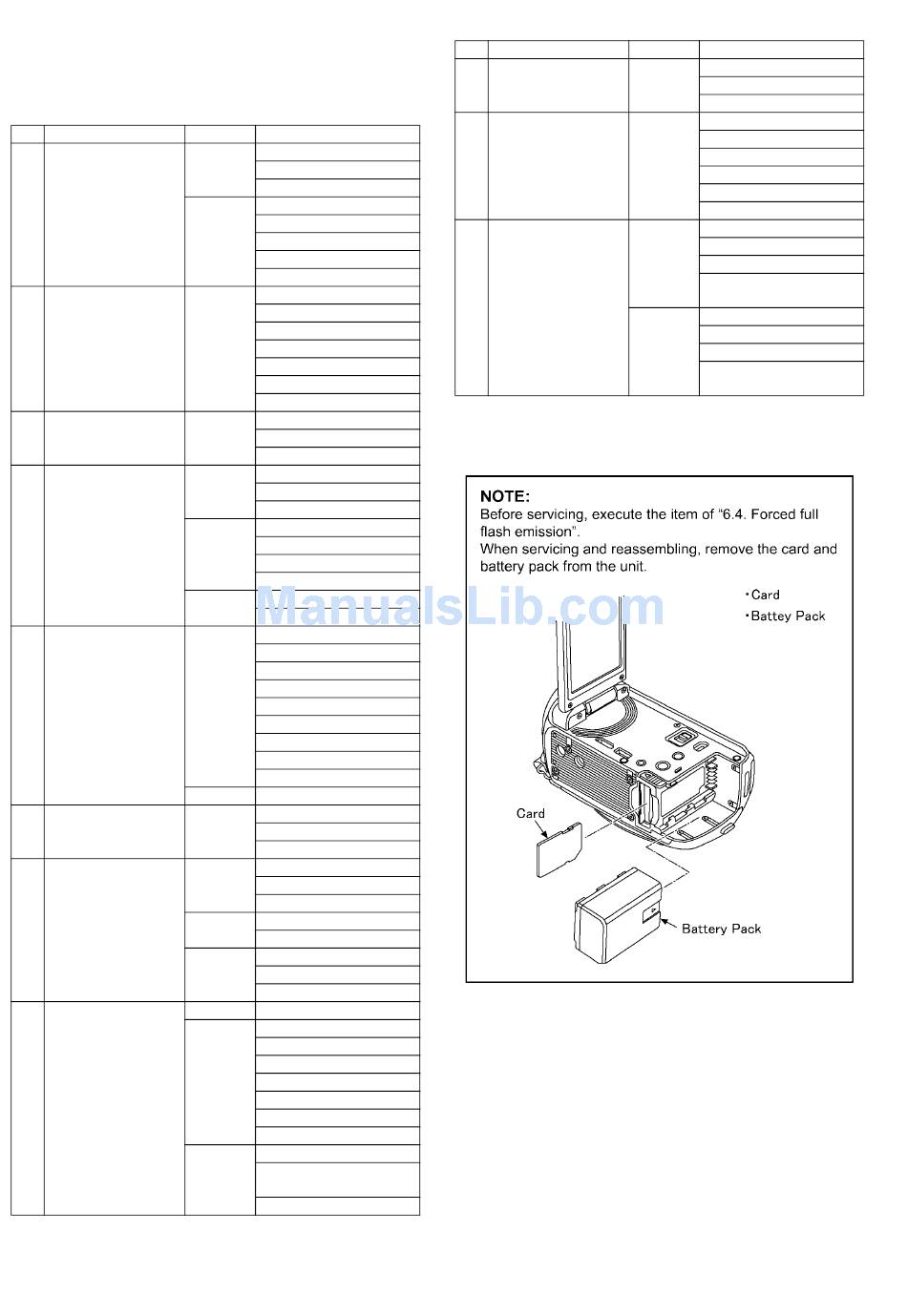

8.3.
Disassembly Procedure for the
Unit
No.
Item
1
Side Case-L Unit
2
Top Case Unit
3
ESD P.C.B.
(HC-V700M/V707M
only)
4
Front Case Unit
5
Lens Frame Unit
6
Lens Unit
7
Main P.C.B.
SD Holder P.C.B.
8
Monitor P.C.B. &
Light Guide Plate Unit
LCD Panel Unit
Fig
Removal
(Fig. D1)
2 Screws (A)
1 Screws (B)
2 Screws (C)
(Fig. D2)
2 Screws (D)
1 Screw (E)
2 Locking tabs
P6005 (Connector)
Side Case-L Unit
(Fig. D3)
1 Screw (F)
1 Screw (G)
1 Rib
5 Locking tabs
FP4803 (Flex)
P6401 (Connector)
Top Case Unit
(Fig. D4)
2 Screws (H)
FP3201 (Flex)
ESD P.C.B.
(Fig. D5)
1 Screw (I)
2 Screws (J)
P4801 (Flex)
(Fig. D6)
P7001(Connector)
P7002 (Connector)
2 Locking tabs
1 Rib
(Fig. D7)
FP6010 (Flex)
Front Case Unit
(Fig. D8)
1 Screw (K)
3 Screws (L)
2 Locking tabs
1 Projection Part
1 Rib
FP4802 (Flex)
FP6004 (Flex)
FP6005 (Flex)
Lens Frame Unit
(Fig. D9)
Discharge the capacitor
(Fig. D10) FP6008 (Flex)
P6001 (Connector)
Lens Unit
(Fig. D11) 4 Screws (M)
Batt Frame
Heat Radiation Plate Unit
(Fig. D12) P6003 (Connector)
FP6001 (Flex)
(Fig. D13) FP3201 (Flex)
Main P.C.B.
SD Holder P.C.B.
(Fig. D14) 1 Screw (O)
(Fig. D15) 1 Screw (P)
2 Screws (Q)
6 Locking tabs
LCD Case (T) Unit
FP901 (Flex)
FP904 (Flex)
FP905 (Flex)
(Fig. D16) 3 Locking tabs
Monitor P.C.B. &
Light Guide Plate Unit
LCD Panel Unit
No.
Item
9
Monitor P.C.B.
10
MOS Unit
IR Filter
11
2nd Lens Frame Unit
Stepping Motor
4th Lens Frame Unit
Stepping Motor
24
Fig
Removal
(Fig. D17) 1 Locking tab
1 Hanging part
Monitor P.C.B.
(Fig. D18) 3 Screws (S)
MOS Shield Case Unit
Lens Sheet
MOS Unit
MOS Cushion
IR Filter
(Fig. D19) 3 Screws (T)
Solder (4 points)
2 Projection Part
2nd Lens Frame Unit
Stepping Motor
(Fig. D20) 2 Screws (U)
Solder (6 points)
2 Projection Part
4th Lens Frame Unit
Stepping Motor
