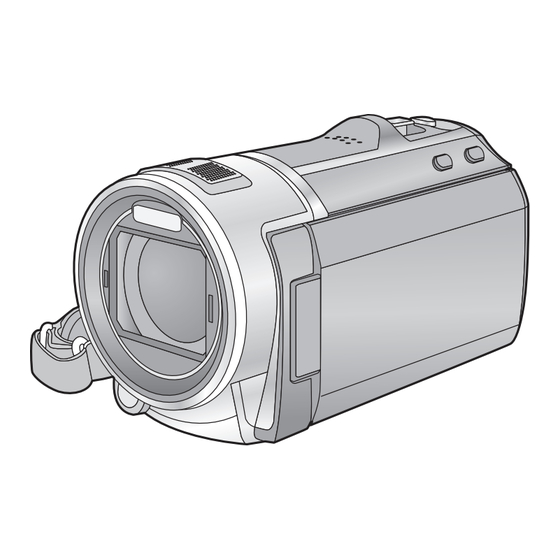

Panasonic HC-V700 Basic Operating Instructions Manual

High definition video camera
Hide thumbs

Advertisement

Kamera wideo wysokiej rozdzielczości (HD)
Before use, please read these instructions completely.
Przed pierwszym włączeniem kamery prosimy o dokładne przeczytanie instrukcji obsługi.
More detailed instructions on the operation of this unit are
contained in "Operating Instructions (PDF format)" in the supplied
CD-ROM. Install it on your PC to read it.
Szczegółowe informacje dotyczące obsługi kamery znajdują się w
"Instrukcja obsługi (format PDF)" na dołączonej płycie CD-ROM. W celu zapoznania
się z treścią instrukcji, należy zainstalować ją na komputerze.
Basic Operating Instructions
Skrócona instrukcja obsługi
High Definition Video Camera
Model No.
HC-V700
HC-V707
HC-V707M
VQT3Y47

Advertisement

Table of Contents
loading

  Related Manuals for Panasonic HC-V700

  Summary of Contents for Panasonic HC-V700

  • Page 1 Basic Operating Instructions Skrócona instrukcja obsługi High Definition Video Camera Kamera wideo wysokiej rozdzielczości (HD) HC-V700 Model No. HC-V707 HC-V707M Before use, please read these instructions completely. Przed pierwszym włączeniem kamery prosimy o dokładne przeczytanie instrukcji obsługi. More detailed instructions on the operation of this unit are contained in “Operating Instructions (PDF format)”...
  • Page 2: Information For Your Safety

    CAUTION! Use only the recommended accessories. To reduce the risk of fire, electric shock or ≥ Always use a genuine Panasonic HDMI product damage, mini cable (RP-CDHM15, RP-CDHM30: ≥ Do not install or place this unit in a optional).
  • Page 3: Cautions For Use

    ENGLISH national legislation and the Directives ∫ Cautions for use 2002/96/EC and 2006/66/EC. Keep this unit as far away as possible By disposing of these products and from electromagnetic equipment (such batteries correctly, you will help to save as microwave ovens, TVs, video games valuable resources and prevent any etc.).
  • Page 4: This Unit

    ∫ Indemnity about recorded Function that can be used for the content Playback Mode (still pictures only): Panasonic does not accept any ≥ Scene(s) recorded in 1080/50p, 1080/50i or responsibility for damages directly or side-by-side (SbS 3D): “AVCHD scene(s)” indirectly due to any type of problems that ≥...
  • Page 5: Table Of Contents

    Contents Information for Your Safety......2 Accessories..........6 Preparation Power supply..........8 Inserting/removing the battery..... 8 Charging the battery ......9 Charging and recording time..... 10 Recording to a card ........ 11 Cards that you can use with this unit ............ 11 Inserting/removing an SD card..
  • Page 6: Accessories

    Accessories Check the accessories before using this unit. Keep the accessories out of reach of children to prevent swallowing. Product numbers correct as of Dec. 2011. These may be subject to change. Battery pack VW-VBK180 AC adaptor VSK0781 AC cable K2CQ2YY00082 AV multi cable K1HY12YY0016...
  • Page 7: Optional Accessories

    Optional accessories Some optional accessories may not be available in some countries. Battery charger (VW-BC10E) Battery pack (lithium/VW-VBK180) Battery pack (lithium/VW-VBK360) HDMI mini cable (RP-CDHM15, RP-CDHM30) 3D Conversion Lens/Step up ring (VW-CLT2) Wide conversion lens (VW-W4907H) Filter kit (VW-LF46NE) Video DC light (VW-LDC103E) Light bulb for video DC light (VZ-LL10E) Stereo microphone (VW-VMS2E) Shoe adaptor (VW-SK12E)
  • Page 8: Preparation

    Panasonic products and batteries manufactured by other companies and certified by Panasonic. (Batteries which do not support this function cannot be used). Panasonic cannot in any way guarantee the quality, performance or safety of batteries which have been manufactured by other companies and are not genuine Panasonic products.
  • Page 9: Charging The Battery

    Charging the battery When this unit is purchased, the battery is not charged. Charge the battery fully before using this unit for the first time. The unit is in the standby condition when the AC adaptor is connected. The primary circuit is always “live”...
  • Page 10: Charging And Recording Time

    However, it will be constantly displayed when the remaining battery time becomes less than 30 minutes. ≥ The remaining battery capacity is displayed when using the Panasonic battery that you can use for this unit. The actual time can vary depending on your actual use.
  • Page 11: Recording To A Card

    ≥ Please confirm the latest information about SD Memory Cards/SDHC Memory Cards/ SDXC Memory Cards that can be used for motion picture recording on the following website. http://panasonic.jp/support/global/cs/e_cam (This website is in English only.) ≥ Operation of the SD Memory Cards 256 MB or less is not guaranteed. Also, the SD Memory Card 32 MB or less cannot be used for the motion picture recording.
  • Page 12: Inserting/Removing An Sd Card

    Inserting/removing an SD card When using an SD card not from Panasonic, or one previously used on other equipment, for the first time on this unit, format the SD card. (l 22) When the SD card is formatted, all of the recorded data is deleted. Once the data is deleted, it cannot be restored.
  • Page 13: Turning The Unit On/Off

    Preparation Turning the unit on/off You can turn the unit on and off using the power button or by opening and closing the LCD monitor. Turning the unit on and off with the power button Open the LCD monitor and press the power button to turn on the unit. ...
  • Page 14: How To Use The Touch Screen

    Preparation How to use the touch screen You can operate by directly touching the LCD monitor (touch screen) with your finger. ∫ Touch Touch and release the touch screen to select icon or picture. ≥ Touch the centre of the icon. ≥...
  • Page 15: About The Touch Menu

    About the Touch Menu Touch (left side)/ (right side) of on the Touch Menu to switch the operation icons. Touch (left side)/ (right side) of on the Touch Menu. ≥ It is also possible to switch the operation icons by sliding the Touch Menu right or left while touching it.
  • Page 16: Setting Date And Time

    Preparation Setting date and time When the unit is turned on for the first time, a message asking you to set the date and time will appear. Select [YES] and perform steps 2 to 3 below to set the date and time. Select the menu.
  • Page 17: Basic

    Basic Selecting a media to record [HC-V707M] The card and built-in memory can be selected separately to record motion pictures or still pictures. Change the mode to Select the menu. (l 21) : [MEDIA SELECT] MENU Touch the media to record motion pictures or still pictures.
  • Page 18: Recording Motion Pictures

    Basic Recording motion pictures Change the mode to Open the LCD monitor. Press the recording start/stop   button to start recording. A Recording button icon B When you begin recording, ; changes to ¥. ≥ Recording can also be started/stopped by touching the recording button icon. This icon functions in the same manner as the recording start/stop button.
  • Page 19: Motion Picture/Still Picture Playback

    Basic Motion picture/Still picture playback Change the mode to Touch the play mode select icon A. (l 15) HC-V700 HC-V707 Select the still picture B or the recording  format of the motion picture C you wish to play back.
  • Page 20: Watching Video/Pictures On Your Tv

    Select the playback operation by touching the operation icon. F Operation icon 0h01m30s 0h01m30s 0h01m30s ≥ Operation icons and screen display will disappear when no touch operation is performed for a specific period of time. To display them again, touch the screen.
  • Page 21: Using The Menu Screen

    Basic Using the menu screen ≥ Touch (left side)/ (right side) of on the Touch Menu to display . (l 15) MENU Touch ∫ About guide display MENU After touching , touching the submenus and items will cause function descriptions and settings confirmation messages to appear.
  • Page 22: Using The Zoom

    Back up important data on a PC, DVD disc etc. Select the menu. HC-V707 HC-V700 : [SETUP] # [FORMAT CARD] MENU HC-V707M : [SETUP] # [FORMAT MEDIA] # [SD CARD] or [Built-inMemory]...
  • Page 23: Others

    Others Specifications High Definition Video Camera Information for your safety Power source: DC 5.0 V (When using AC adaptor) DC 3.6 V (When using battery) Power consumption: Recording; Charging; 6.7 W 7.7 W Motion picture recording format: [AVCHD]; AVCHD format version 2.0 compliant (AVCHD Progressive) [iFrame];...
  • Page 24 Image sensor: 1/2.33 type (1/2.33z) 1MOS image sensor Total; 15300 K Effective pixels; Motion picture; 3550 K to 2580 K (16:9) Still picture; 2790 K (4:3), 2790 K (3:2), 3550 K to 2580 K (16:9) Lens: Auto Iris, 21k optical zoom, F1.8 to F3.5 Focal length;...
  • Page 25 Flash: Available range; Approx. 1.0 m to 2.5 m Dimensions: 55 mm (W)k69 mm (H)k119.5 mm (D) (including projecting parts) Mass: HC-V700 HC-V707 Approx. 270 [without battery (supplied) and an SD card (optional)] HC-V707M Approx. 271 [without battery (supplied)] Mass in operation: HC-V700 HC-V707 Approx.
  • Page 26 AC adaptor Information for your safety Power source: AC 110 V to 240 V, 50/60 Hz Power consumption: 12 W DC output: DC 5.0 V, 1.6 A Dimensions: 49 mm (W)k24 mm (H)k79 mm (D) Mass: Approx. 91 ∫ 3D Conversion Lens (optional) Lens: F2.4 (f = 1.47 mm) 35 mm equivalent;...
  • Page 27: About Copyright

    MPEG LA, LLC. LLC. See http://www.mpegla.com. ≥ “AVCHD”, “AVCHD Progressive” and the “AVCHD Progressive” logo are trademarks of Panasonic Corporation and Sony Corporation. ≥ Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
  • Page 28: Reading The Operating Instructions (Pdf Format)

    Instructions] to install. Instructions (PDF format) (Example: When an English language Delete the PDF file from the “Program Files\Panasonic\HC\” folder. ≥ When the contents in the Program Files folder cannot be displayed, click the [Show the contents of this folder] to display them.

This manual is also suitable for:

Hc-v707Hc-v707m
