Summary of Contents for Kramer VP-472
-
Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VP-472 SDI to HDMI Scaler P/N: 2900-000640 Rev 5... -
Page 3: Table Of Contents
Connecting the VP-472 Operating the VP-472 SDI to HDMI Scaler Using the Front Panel Buttons Using the OSD Technical Specifications Figures Figure 1: VP-472 SDI to HDMI Scaler Figure 2: Connecting the VP-472 SDI to HDMI Scaler VP-472 – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer VP-472 SDI to HDMI Scaler, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer VP-472 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The Kramer VP-472 SDI to HDMI Scaler is a high-performance digital scaler for signals up to 3G HD-SDI. It up and down-scales 3G HD-SDI signals to resolutions up to WUXGA and 1080p. The VP-472 supports the following output resolutions: ... -
Page 8: Defining The Vp-472 Sdi To Hdmi Scaler

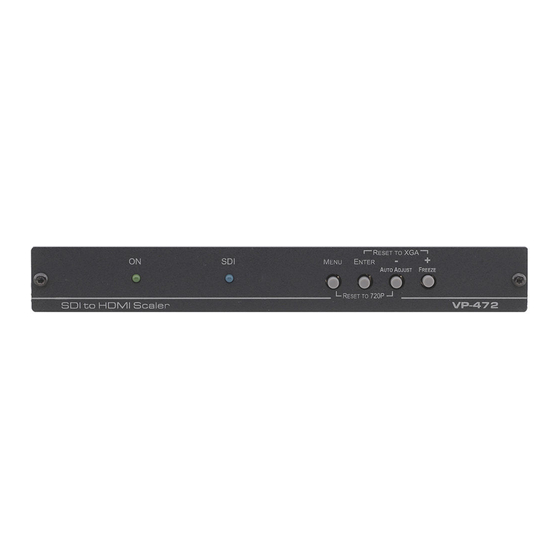

Defining the VP-472 SDI to HDMI Scaler This section defines the VP-472. Figure 1: VP-472 SDI to HDMI Scaler Feature Function ON LED Lights green when the unit is powered on SDI LED Lights blue when an SDI signal is detected on the input... -
Page 9: Connecting The Vp-472
3. Connect the HDMI OUT connector to the HDMI acceptor (for example, a plasma display). The VP-472 outputs on both the SDI OUT and HDMI connectors simultaneously 4. Connect the 5V DC power adapter to the power socket and to the mains... -
Page 10: Figure 2: Connecting The Vp-472 Sdi To Hdmi Scaler
Figure 2: Connecting the VP-472 SDI to HDMI Scaler VP-472 - Connecting the VP-472... -
Page 11: Operating The Vp-472 Sdi To Hdmi Scaler
Operating the VP-472 SDI to HDMI Scaler The VP-472 is operated directly from the front panel buttons (see Section 5.1) and from the OSD menu (see Section 5.2). Using the Front Panel Buttons During normal operation (without the OSD), the front panel buttons perform in the following manner: ... -
Page 12: The Main Menu
When on, this de-activates the output after a few minutes if no input is present When set to Auto, the unit searches for the lowest Group number which has audio and selects this audio Group EXIT Exits the Main menu VP-472 - Operating the VP-472 SDI to HDMI Scaler... - Page 13 Sets the output red signal level offset 0-63 G OFFSET Sets the output green signal level offset 0-63 B OFFSET Sets the output blue signal level offset 0-63 EXIT Exits the Color submenu VP-472 - Operating the VP-472 SDI to HDMI Scaler...
- Page 14 Group 1 audio is embedded into the HDMI output GROUP2 Group 2 audio is embedded into the HDMI output GROUP3 Group 3 audio is embedded into the HDMI output GROUP4 Group 4 audio is embedded into the HDMI output VP-472 - Operating the VP-472 SDI to HDMI Scaler...
-
Page 15: Technical Specifications
10% to 90%, RHL non-condensing 18.8cm x 13.4cm x 2.4cm (7.4” x 5.3” x 1”) W, D, H DIMENSIONS: WEIGHT: 0.75kg (1.7lbs) approx. ACCESSORIES: Power supply OPTIONS: RK-T2B 19" rack adapter Specifications are subject to change without notice at http://www.kramerelectronics.com VP-472 - Technical Specifications... - Page 17 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
