Summary of Contents for Kramer VP-470
-
Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VP-470 SD / 3G HD-SDI Scaler P/N: 2900-300035 Rev 2... -
Page 3: Table Of Contents
Operating the VP-470 SD / 3G HD-SDI Scaler Using the Front Panel Buttons Using the OSD Technical Specifications Figures Figure 1: VP-470 SD / 3G HD-SDI Scaler Figure 2: Connecting the VP-470 SD / 3G HD-SDI Scaler VP-470 – Contents... -
Page 4: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration. Congratulations on purchasing your Kramer VP-470 SD / 3G HD-SDI Scaler, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer VP-470 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The VP-470 is a high−performance digital scaler for 3G HD−SDI signals. It up or down−scales the incoming SDI signal to resolutions up to 1080p, and routes it to two identical SDI outputs. The following output resolutions are supported: ... -
Page 8: Defining The Vp-470 Sd / 3G Hd-Sdi Scaler

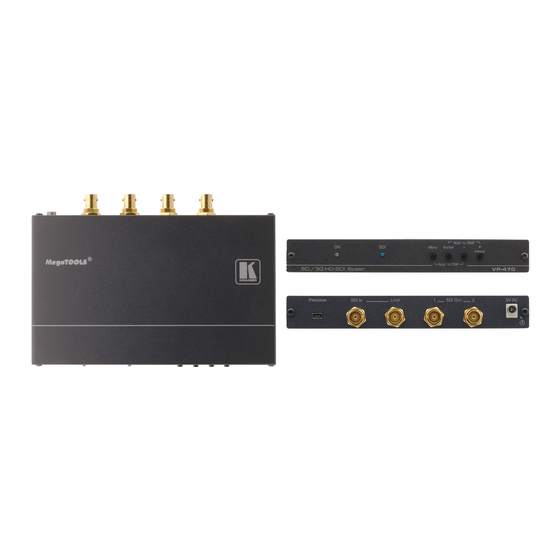

Defining the VP-470 SD / 3G HD-SDI Scaler This section defines the VP-470. Figure 1: VP-470 SD / 3G HD-SDI Scaler VP-470 - Overview... - Page 9 In the OSD, press to step up through the options or to decrement the parameter value + / FREEZE Button In the OSD, press to step down through the options or to increment the parameter value. When the OSD is not displayed, press to freeze the display VP-470 - Overview...
-
Page 10: Connecting The Vp-470
Connecting the VP-470 Always switch off the power to each device before connecting it to your VP-470. After connecting your VP-470, connect its power and then switch on the power to each device. To connect the VP-470 as illustrated in the example in Figure 1. -
Page 11: Operating The Vp-470 Sd / 3G Hd-Sdi Scaler
Operating the VP-470 SD / 3G HD-SDI Scaler The VP-470 is operated directly via the front panel buttons and via the OSD menu (see Section 5.2). Using the Front Panel Buttons During normal operation (without the OSD), the front panel buttons perform in the following manner: ... - Page 12 BRIGHTNESS and its value change back to white. 8. Press MENU to exit. Alternatively, press the - button until EXIT is selected and then press ENTER to go back in the OSD menu. VP-470 - Operating the VP-470 SD / 3G HD-SDI Scaler...
-
Page 13: The Main Menu
To reset to 720p press the – and MENU buttons simultaneously for about 2 seconds INFORMATION Displays the input and output resolutions, audio group detection report and the firmware version EXIT Exit the Main menu VP-470 - Operating the VP-470 SD / 3G HD-SDI Scaler... - Page 14 OFF - the information is not shown INFO - the information is shown for the time period set in INFO. TIMEOUT following any change in the resolution EXIT Exit the menu VP-470 - Operating the VP-470 SD / 3G HD-SDI Scaler...
-
Page 15: Technical Specifications
10% to 90%, RHL non-condensing 18.8cm x 11.4cm x 2.4cm (7.4” x 4.5” x 1”) W, D, H DIMENSIONS: WEIGHT: 0.75kg (1.7lbs) approx. ACCESSORIES: Power supply OPTIONS: RK-2TB 19" rack adapter Specifications are subject to change without notice at http://www.kramerelectronics.com VP-470 - Technical Specifications... - Page 17 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
