Summary of Contents for Kramer VP-472
- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: VP-472 SDI to HDMI Scaler...
-
Page 2: Table Of Contents
Table 2: VP-472 SDI to HDMI Scaler Rear Panel Features Table 3: The Main Menu Parameters and Functions Table 4: The Display Submenu Parameters Table 5: The Color Submenu Parameters Table 6: The SDI Audio Submenu Parameters Table 7: Technical Specifications of the VP-472 SDI to HDMI Scaler... -
Page 3: Introduction
Introduction Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
Overview Overview The Kramer VP-472 SDI to HDMI Scaler is a high-performance digital scaler for signals up to 3G HD-SDI. It up and down-scales 3G HD-SDI signals to resolutions up to WUXGA and 1080p. The following output resolutions are supported: •... -
Page 6: Defining The Vp-472 Sdi To Hdmi Scaler

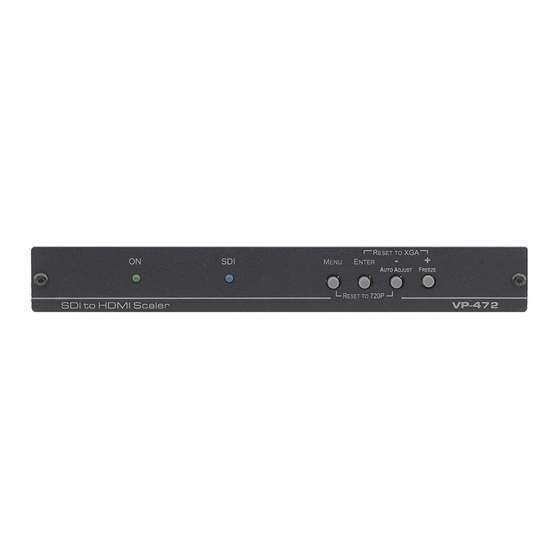

Figure 1 Table 1 define the front panel of the VP-472. Figure 1: VP-472 SDI to HDMI Scaler Front Panel Table 1: VP-472 SDI to HDMI Scaler Front Panel Features Feature Function ON LED Lights green when the unit is powered on... -
Page 7: Connecting The Vp-472 Sdi To Hdmi Scaler
3. Connect the HDMI OUT connector to the HDMI acceptor (for example, a plasma display) 4. Connect the 5V DC power adapter to the power socket and to the mains electricity (not shown in Figure 1 The VP-472 outputs on both the SDI OUT and HDMI connectors simultaneously... -
Page 8: Operating The Vp-472 Sdi To Hdmi Scaler
Operating the VP-472 SDI to HDMI Scaler Operating the VP-472 SDI to HDMI Scaler The VP-472 is operated directly via the front panel buttons and via the OSD menu. Using the Front Panel Buttons During normal operation (without the OSD), the front panel buttons perform in the following manner: •... -
Page 9: The Main Menu
Operating the VP-472 SDI to HDMI Scaler 6.2.1 The Main Menu Table 3 defines the Main menu parameters and functions. Table 3: The Main Menu Parameters and Functions Parameter Function DISPLAY Sets the output resolution, size and aspect ratio (see... -
Page 10: The Sdi Audio Submenu
Operating the VP-472 SDI to HDMI Scaler Parameter Function Value Range Factory Default Sets the output red value 0-255 Sets the output green value 0-255 Sets the output blue value 0-255 R OFFSET Sets the output red signal level offset... -
Page 11: Technical Specifications
Technical Specifications Technical Specifications lists the technical specifications of the VP-472 SDI to HDMI Scaler. Table 7 Table 7: Technical Specifications of the VP-472 SDI to HDMI Scaler INPUT: 1 3G HD-SDI on a BNC connector OUTPUTS: 1 3G HD-SDI on a BNC connector... - Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 13 For the latest information on our products and a list of Kramer distributors visit www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
