DUCTLESS CONVERSION

Ductless conversion is intended for applications where an exhaust duct work is not possible to be
installed. When converted, the hood functions as a "purifying" hood rather than an exhaust hood.
Fumes and exhaust from cooking is drawn and filtered by a set of optional Carbon Filters. The air
is then purified and re-circulated back within the home.
We recommend to ALWA YS exhaust air outside of the home by employing existing or installing
new duct work, if possible. The hood is most effective and efficient as an Exhaust unit. Only when
the exhaust option is not possible should you recourse to converting the hood into a "purifying"
unit.
When converted to be a "purifying" unit, a set of Carbon Filters are required on top of its standard
Metal Filter set. Order according to its Part number below. The standard Metal Filters are intended
to capture residue from cooking and the optional Carbon Filters help to purify fumes exhausted
from cooking for re-circulation.
Carbon Filters (Required)
1. Purchase ductless Charcoal Filters as
follow:
Hood Model:
ZPA-M90S

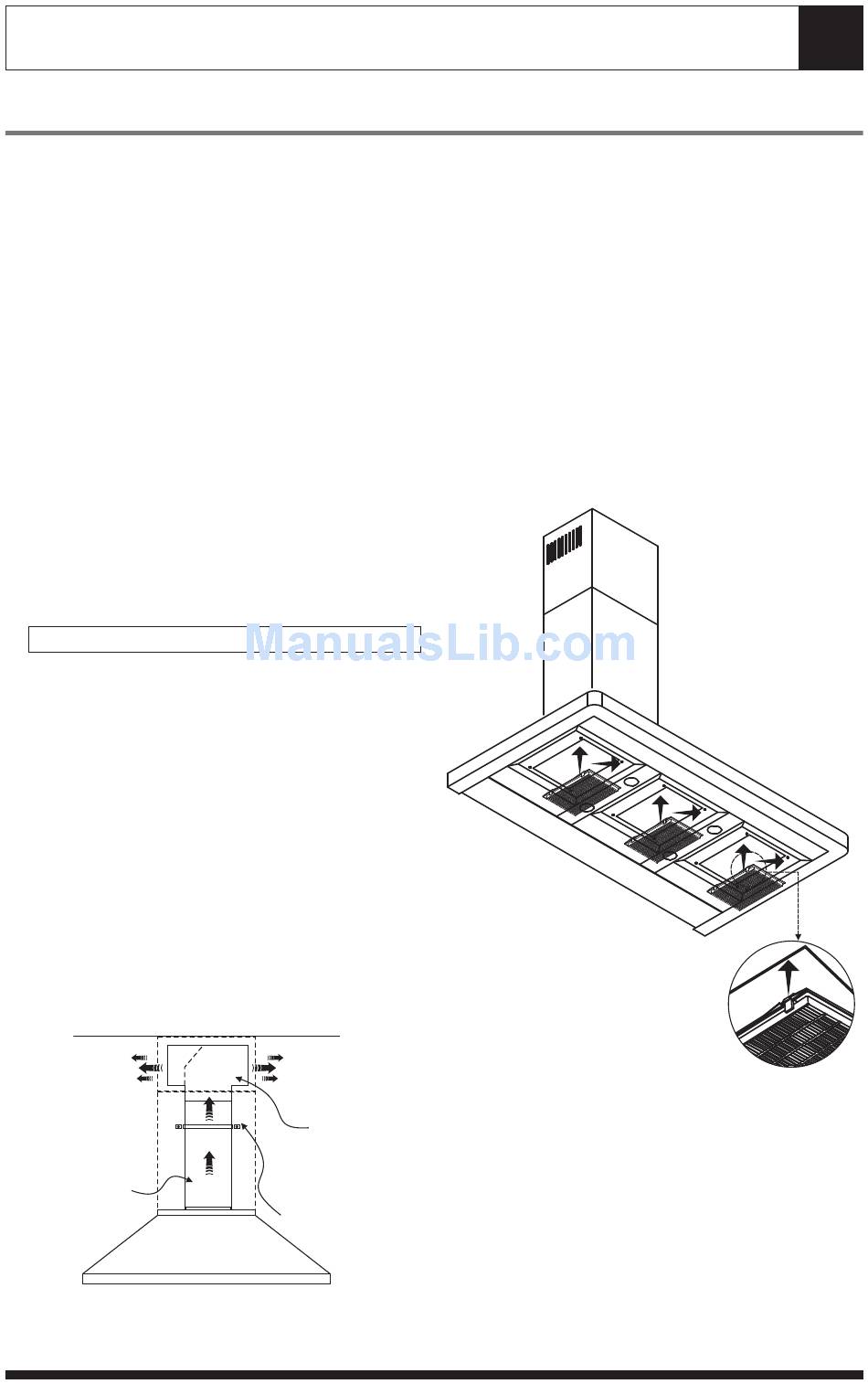

2. Remove metal filters on hood. Clip
carbon filters onto each slot opening.
3. Re-install metal filters.
4. Turn on Filter Change Indicator on
control panel (refer details pg. 7)
5. Carbon Filters must be replace after every
120 hours of use (or approximately every
2 to 3 months based on the average of 1-
2hrs. of daily cooking time). The
microprocessor in the controls when set,
will elapsed and count usage time and
indicate when carbon filter replacement is
required every 120 hrs.
6" straight pipe
INSTALLATION
Part No. Filters in pkg.
Z0F-C022
6" T connector
or 90 elbow
wall pipe strap
2
Ducting
1. Install a 6" straight pipe and a "T"
connector/ or a 90 elbow to divert air
through louvers on duct cover.
2. You may also order our air diverting duct
kit; call 1-888-880-8368.
5
