2

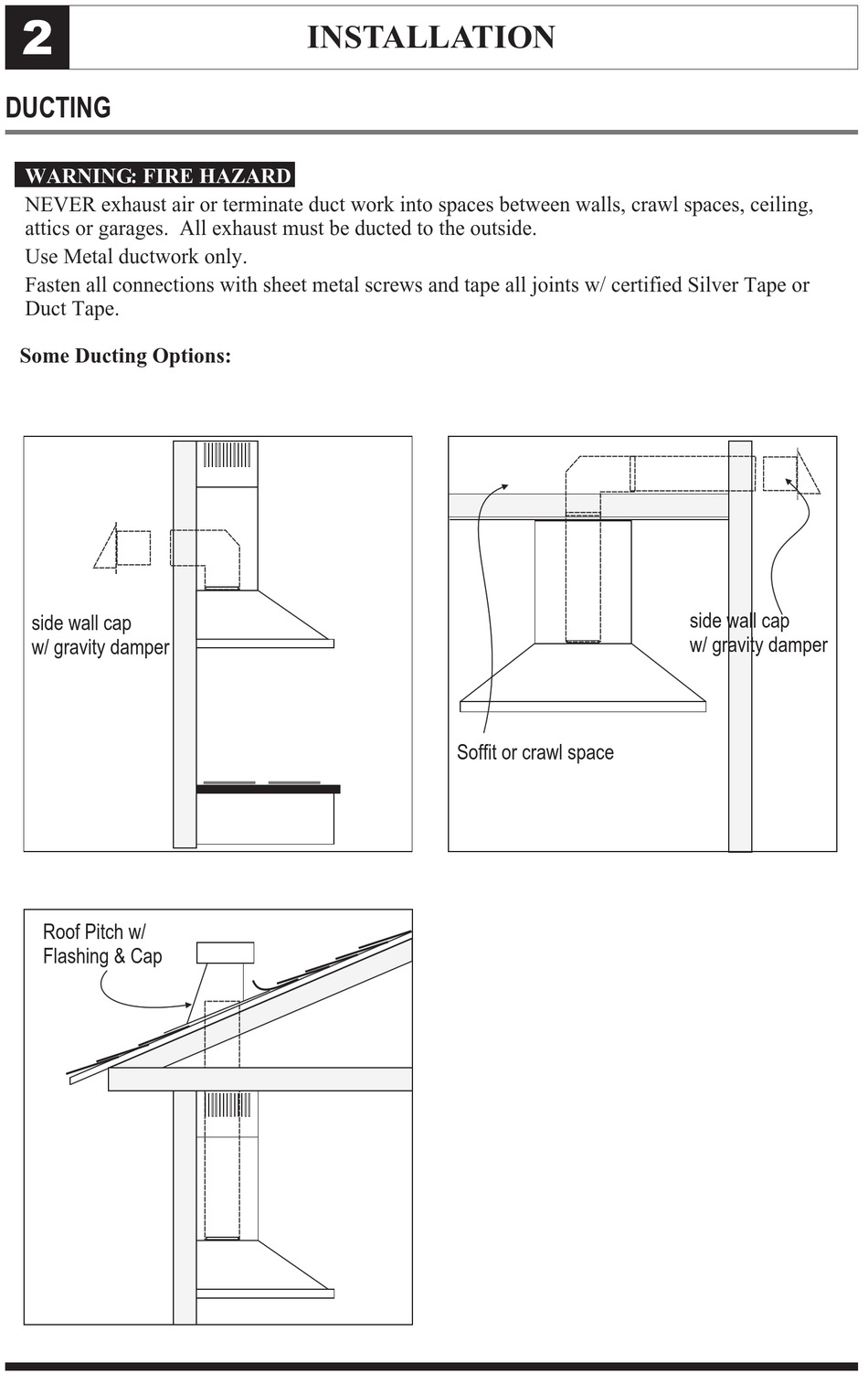

DUCTING
,
WARNING: FIRE HAZARD
,
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling,
attics or garages. All exhaust must be ducted to the outside.
,
Use Metal ductwork only.
,
Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or
Duct Tape.
Some Ducting Options:
side wall cap
w/ gravity damper
Roof Pitch w/
Flashing & Cap
INSTALLATION
Soffit or crawl space
side wall cap
w/ gravity damper
